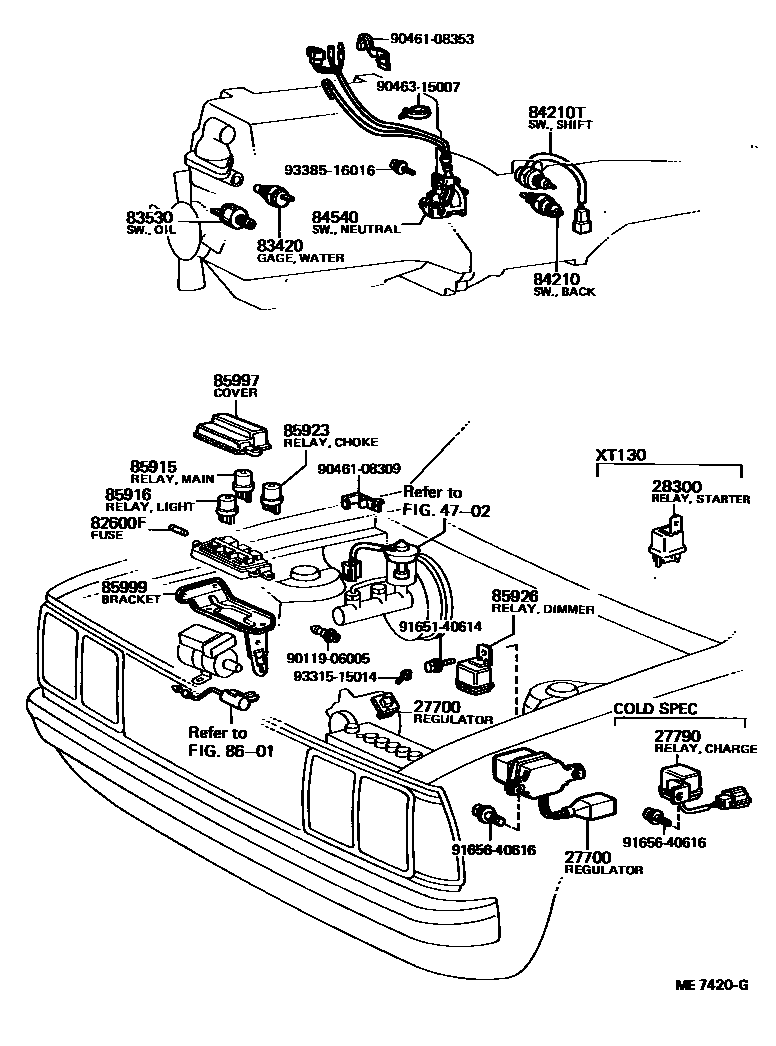

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

27700REGULATOR ASSY, GENERATOR

main27700-27040i12R#,18R,3T..RT13#,TT132197809-197908

sub27700-27050

main27700-27050i3T..TT132..LHD..MTM..EUR197908-198010

sub27700-54030

main27700-38100i3T..TT132..LHD..EUR197809-198008

IC REGULATOR

sub27700-28030

main27700-54030i3T..TT132..RHD;3T..TT132..LHD..(3FC,4F);3T..TT132..(HT,LB)..LHD..5F;21RC,12RM,18R#,2T..RT13#,TT133198010-198301

sub27700-54040

27790RELAY ASSY, CHARGE LAMP

main27790-26010i3T..TT132..LHD..EUR197809-198008

28300RELAY ASSY, STARTER

main28300-44020i1X..XT130198008-198301

4702

82600FFUSE, FUSE BLOCK

main90982-09001iRT130,132,TT13#198008-198205

5A,5A

main90982-09002iRT13#,TT13#198008-198301

10A,10A

main90982-09003iRT13#,TT13#198008-198301

15A,15A

main90982-09004iRT13#,TT13#198008-198301

20A,YELLOW,20A

main90982-09005iRT13#,TT13#198008-198301

7.5A,7.5A

main99118-62005iRT13#,TT13#,XT130197809-198008

5A

main99118-62910iRT13#,TT13#,XT130197809-198008

10A

main99118-62915iRT13#,TT13#,XT130197809-198008

15A,15A

main99118-62920iRT13#,TT13#,XT130197809-198008

20A,20A

main99118-62930iRT13#,TT13#,XT130..RHD197809-198008

30A

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iRT13#,TT13#197908-198301

DENSO

sub83420-20020

main83420-20011iRT13#,TT132197809-197908

main83420-20020iRT13#,TT13#197908-198301

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iTT13#197809-198112

sub83530-14030

main83530-14010iRT133..STD198111-198205

sub83530-14030

main83530-36011iRT130,132197809-198202

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iTT133198008-198112

main84210-14010iRT13#,TT13#..MTM197809-198301

main84210-60010iTT132..MTM..EUR198008-198301

84210TSENSOR ASSY, SHIFT POINT

main84220-20040iXT130..MTM197908-198301

84540SWITCH ASSY, NEUTRAL START

main84540-12080iXT130..3FC197908-198301

main84540-12090iTT132..3FC197809-197908

sub84540-12130

sub90461-12223

sub93385-16025

main84540-14060iTT132..3FC197908-198008

main84540-14061iRT132,133,TT132..ATM198008-198112

85915RELAY, MAIN

main90987-02001iRT13#,TT13#,XT130197809-198006

sub90999-99089

main90987-02002iTT132..RHD;RT13#,TT133;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198012-198301

sub90987-02004

main90987-02004iRT13#,TT13#,XT130198006-198012

85916RELAY, LIGHT CONTROL

main90987-01001iRT13#,TT13#,XT130197809-198006

sub90999-99088

main90987-01003iTT132..RHD;RT13#,TT133;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198006-198301

main90987-02002iXT130198105-198301

sub90987-02004

85923RELAY, CHOKE CONTROL

main90987-02001iRT132,TT13#197809-198008

sub90999-99089

main90987-03001iXT130198008-198301

85926RELAY, HEADLAMP DIMMER

main85926-14010iTT132..EUR197809-198008

main85926-30020iTT132..EUR198008-198108

85997COVER, RELAY BRACKET

main85997-20010iRT13#,TT13#,XT130..ARL,GEN,PHL197809-198008

main85997-20020iTT132..EUR197809-198008

main85997-20050iRT133..GL198008-198205

main85997-20070iRT132,TT132..ARL,EUR198008-198108

85999BRACKET, COMBINATION RELAY

main85999-20030iRT132;RT133..GL197809-198112

main85999-20060iRT130,132..LHD197809-198205

main85999-20070iTT13#197809-198112

8601

9011906005

main90119-06005

9046108309

main90461-08309

9046108353

main90461-08353

9046315007

main90463-15007

9165140614

main91651-40614

9165640616

main91656-40616

9331515014

main93315-15014

9338516016

main93385-16016

25 parts on this diagram · 6 diagrams in section
