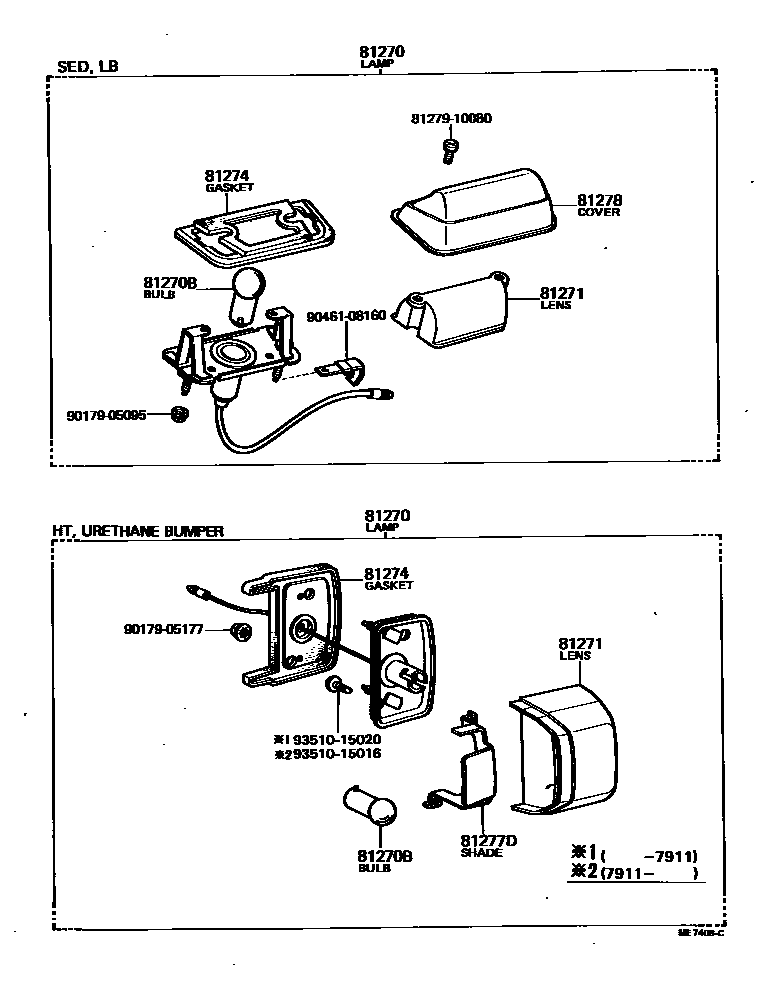

REAR LICENSE PLATE LAMP

0001 1 0002 1 0004 1

81270LAMP ASSY, LICENSE PLATE

main81270-19455iRT132..HT197809-197908

RH

main81270-29355iRT13#,TT13#,XT130..WG197809-198008

main81270-29385×2iRT13#,TT132..LB,SED197809-197908

main81270-29386×2iRT13#,TT13#,XT130..LB,SED197908-198008

main81270-29475iTT132..RHD..LNK;RT130,TT133..SED;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..LNK..GEN198008-198012

RH,W/URETHANE BUMPER

main81270-29485iRT130..LNK; RT132,TT132..HT; TT132..SED..RHD..DLX197908-198008

RH; RH,W/URETHANE BUMPER

main81270-29535×2iRT132,TT13#..SED..STD198008-198205

main81270-29545×2iRT133..GL;RT130,132,TT13#..LB,SED198008-198205

W/BUMPER PAD

main81270-29575iTT132..DLX..LEF198008-198112

main81270-29585iRT130,132,TT13#..WG..STD198008-198205

main81690-19075iRT132..HT197809-197908

LH

main81690-29105iTT132..RHD..LNK;RT130,TT133..SED;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..LNK..GEN198008-198012

LH,W/URETHANE BUMPER

main81690-29115iRT130..LNK; RT132,TT132..HT; TT132..SED..RHD..DLX197908-198008

LH; LH,W/URETHANE BUMPER

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11050×2iRT13#,TT13#,XT130..LB,SED197809-198008

12V 5W,12V 5W

main99132-11075×2iRT13#,TT13#,XT130..WG197809-198008

12V 7.5W,12V 7.5W

main99132-11100×2iRT130..LNK; TT132..SED..RHD..DLX197908-198008

12V 10W,12V 10W,W/URETHANE BUMPER

main99132-12050×2iRT133..GL;RT130,132,TT13#..LB,SED198008-198205

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-16020iRT130..LNK; TT132..SED..RHD..DLX197908-198008

RH,W/URETHANE BUMPER

main81271-20110iTT132..RHD..LNK;RT130,TT133..SED;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..LNK..GEN198008-198012

RH,W/URETHANE BUMPER

main81271-20120×2iRT13#,TT13#,XT130..LB,SED197809-198008

main81271-21060×2iRT130,132,TT13#..WG198008-198205

main81271-22110×2iRT133..GL;RT130,132,TT13#..LB,SED198008-198205

main81691-16010iRT130..LNK; TT132..SED..RHD..DLX197908-198008

LH,W/URETHANE BUMPER

main81691-20030iTT132..RHD..LNK;RT130,TT133..SED;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..LNK..GEN198008-198012

LH,W/URETHANE BUMPER

81274GASKET, LICENSE PLATE LAMP BODY

main81272-20120×2iRT13#,TT13#,XT130..LB,SED197809-198008

main81274-16020iRT132,TT132..HT197809-198008

RH

main81274-20110iTT132..RHD..LNK;RT130,TT133..SED;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..LNK..GEN198008-198012

RH,W/URETHANE BUMPER

main81274-22110iRT133..GL;RT130,132,TT13#..LB,SED198008-198205

main81274-91255iRT13#,TT13#,XT130..WG197809-198008

main81694-16010iRT130..LNK; TT132..SED..RHD..DLX197908-198008

LH,W/URETHANE BUMPER

main81694-20030iTT132..RHD..LNK;RT130,TT133..SED;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..LNK..GEN198008-198012

LH,W/URETHANE BUMPER

81277DREFLECTOR, LICENSE PLATE LAMP

main81277-16020iRT130..LNK; TT132..SED..RHD..DLX197908-198008

RH,W/URETHANE BUMPER

main81697-16010iRT130..LNK; TT132..SED..RHD..DLX197908-198008

LH,W/URETHANE BUMPER

81278COVER, LICENSE PLATE LAMP

main81276-10101×2iRT133..GL;RT130,132,TT13#..LB,SED198008-198205

W/BUMPER PAD

main81276-20110iTT132..RHD..LNK;RT130,TT133..SED;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..LNK..GEN198008-198012

RH,W/URETHANE BUMPER

main81276-20120×2iRT13#,TT13#,XT130..LB,SED197809-198008

main81276-22110×2iRT132,TT13#..SED..STD198008-198205

main81696-20030iTT132..RHD..LNK;RT130,TT133..SED;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..LNK..GEN198012-198112

LH,W/URETHANE BUMPER

8127910080WASHER, SIDE TURN SIGNAL LAMP

main81279-10080

9017905095

main90179-05095

9017905177

main90179-05177

9046108160

main90461-08160

9351015016

main93510-15016

9351015020

main93510-15020

12 parts on this diagram · 3 diagrams in section
