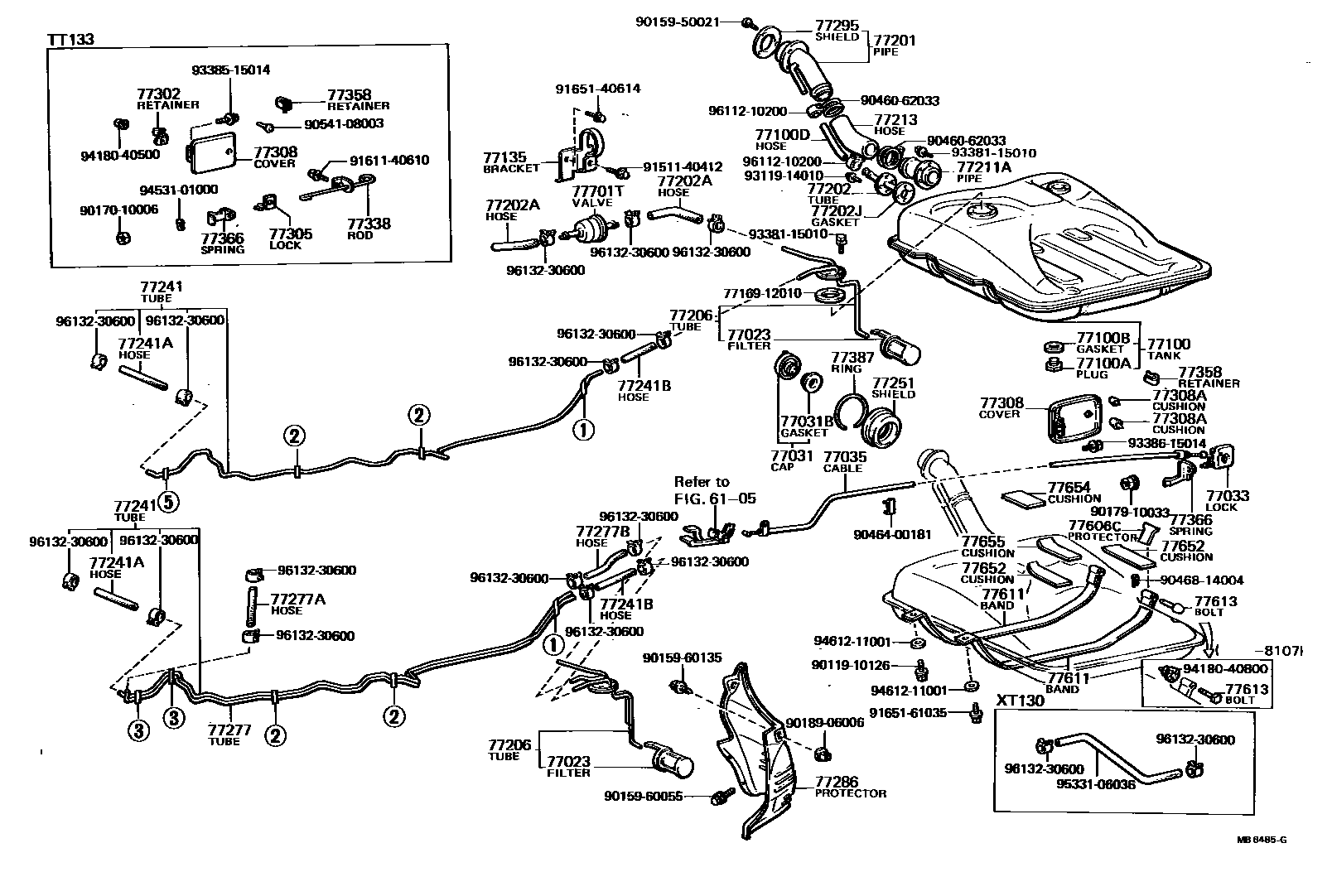

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

6105

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRT13#,TT13#,XT130197809-198301

77031CAP ASSY, FUEL TANK

main77310-12090iRT13#,TT13#,XT130197907-198108

sub77310-12100

main77310-12100iTT132..RHD;RT13#,TT133,XT130;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198108-198301

main77310-14070iRT13#,TT132197809-197907

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iRT13#,TT13#,XT130197809-198301

77033LOCK SUB-ASSY, FUEL TANK CAP

main77033-14020iTT132..LB..RHD..5F..GEN198001-198008

NEW ZEALAND SPEC

main77033-14020iRT130,TT13#..DLX..LNK..(GEN,PHL)197809-198301

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20020iTT132..LHD..GL197809-198108

sub77035-22040

main77035-20020iRT130,TT13#..(LB,SED)..LHD..DLX..(GEN,PHL)198008-198112

L=3400

sub77035-22040

main77035-20040iTT132..LB..RHD..5F..GEN198001-198008

NEW ZEALAND SPEC

sub77035-22030

main77035-20040iRT132,TT132..RHD..GL197809-198008

sub77035-22030

main77035-22030iRT132,133,TT13#..RHD..(DLX,GL)..LNK198008-198301

main77035-95500iTT132..HT..LHD198008-198112

77100TANK ASSY, FUEL

main77001-14925iRT13#,TT13#,XT130..LNK197809-198105

sub77001-19095

sub77012-14022

main77001-14929iTT132..RHD..LNK;RT13#,TT133,XT130..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198105-198301

sub77001-19095

main77001-20919iRT130,132,TT133..SED..LEF197809-198205

main77001-91259iRT13#,TT132..WG197809-197903

sub77001-91261

main77001-91261iRT13#,TT13#,XT130..WG197903-197911

sub77001-91277

main77001-91264iRT132,TT13#,XT130..WG197911-198001

sub77001-91280

main77001-91266iRT132,TT13#,XT130..WG198001-198301

sub77001-91282

main77001-91267iTT132..LHD..4F..DLX..LEF198012-198112

SAUDI ARABIA SPEC

sub77001-91283

77100APLUG(FOR FUEL TANK)

main90105-12018iRT130,132,TT13#,XT130..WG197809-198301

main90341-24036iRT13#,TT13#,XT130..HT,LB,SED197809-198301

77100BGASKET(FOR FUEL TANK)

main90430-12245iRT130,132,TT13#,XT130..WG197809-198301

main90430-24047iRT13#,TT13#,XT130..HT,LB,SED197809-198301

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-18043iRT130,132,TT133..SED..LEF197809-198205

main90445-22012iRT130,132,TT13#,XT130..WG197809-198301

L=490

sub90445-22018

77135BRACKET, CHECK VALVE

main77135-14021iRT130,132,TT13#..LNK..(EUR,GEN,PHL)197809-198205

main77135-22020iRT130,132,TT133..SED..LEF197809-198205

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14160iRT13#,TT132..LNK197809-197908

sub77201-14161

sub77310-12100

main77201-14161iRT13#,TT13#,XT130..LNK197908-198301

main77201-20130iRT13#..SED..LEF197809-197908

sub77201-20131

sub77310-12100

main77201-20131iRT130,132,TT133..SED..LEF197908-198205

main77201-91257iRT13#,TT132..WG197809-197908

main77201-91258iRT130,132,TT13#,XT130..WG197908-198301

77202TUBE SUB-ASSY, BREATHER

main77012-14020iRT13#,TT13#,XT130..LNK197809-198008

main77012-14021iRT13#,TT13#,XT130..LNK198008-198105

sub77012-14023

main77012-14022iTT132..RHD..LNK;RT13#,TT133,XT130..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198105-198301

sub77012-14023

main77012-20020iRT130,132,TT133..SED..LEF197809-198205

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95332-06007iRT13#,TT132..LNK197809-197904

L=100(*H,L=70)

sub95332-06010

main95332-06010iRT130,132,TT13#..LNK..(EUR,GEN,PHL)197904-198205

L=100(*H,L=70)

sub95333-06010

main95332-06013iRT13#..SED..LEF197809-197904

L=200(*H,L=130)

sub95332-06020

main95332-06020iRT130,132,TT133..SED..LEF197904-198205

L=200(*H,L=130)

sub95333-06020

77202JGASKET (FOR BREATHER TUBE)

main77179-14030iRT13#,TT13#,XT130..HT,LB,SED197809-198301

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-20010iRT132..SED..LEF197809-198205

main77017-20020iRT130,TT133..SED..LEF197809-198112

main77203-14040iTT132..3FC..LNK..GEN197809-198008

main77203-14041iTT132..SED..3FC198008-198301

main77203-14060iTT132..RHD..3FC..DLX..LNK..GEN197811-198008

HONG KONG SPEC

main77203-14060iTT132..3FC..EUR;RT130,TT13#..(LB,SED)..MTM..LNK197809-198008

main77203-14061iTT132..3FC..EUR;RT130,TT13#..(LB,SED)..MTM..LNK198008-198112

77211APIPE, FUEL TANK FILLER, LOWER

main77011-10010iRT13#,TT133..SED..LEF197809-198103

sub77011-10020

main77011-12010iRT132,TT133..SED..LEF198103-198205

sub77011-10020

77213HOSE, FUEL TANK SUB INLET

main77213-14090iRT13#,TT13#,XT130..LNK197809-198301

main77213-20050iRT130,132,TT133..SED..LEF197809-198205

main77213-91256iRT13#,TT13#,XT130..WG197809-197911

sub77213-91257

main77213-91257iRT132,TT13#,XT130..WG197911-198301

77241TUBE, FUEL MAIN, NO.1

main77251-20170iRT13#,TT13#,XT130..LNK197809-198008

main77251-20171iRT13#,TT13#,XT130..LNK198008-198301

main77251-20200iRT130,132,TT133..SED..LEF197809-198205

main77251-91261iRT130,132,TT13#,XT130..WG197809-198301

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06015iRT13#,TT132197809-197904

L=200(*H,L=150)

sub95332-06020

main95332-06020iRT13#,TT13#,XT130197904-198301

L=200(*H,L=150)

sub95333-06020

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iRT132..WG;TT132..3FC..LEF197809-198205

L=200

sub95333-06020

main95332-06022iRT130,TT132..WG..4F197809-197904

L=300(*H,L=220)

sub95332-06030

main95332-06026iRT13#,TT132..LNK197809-197904

L=300(*H,L=260)

sub95332-06030

main95332-06030iRT13#,TT13#,XT130..LNK197904-198301

L=300(*H,L=260)

sub95333-06030

main95332-06030iRT130,132,TT13#,XT130..WG197904-198301

L=300(*H,L=220)

sub95333-06030

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-12010iRT130,132,TT13#,XT130..WG197809-198301

main77291-14020iRT13#,TT13#,XT130..LNK197809-198301

main77291-20010iRT130,132,TT133..SED..LEF197809-198205

77277TUBE, FUEL RETURN, NO.1

main77255-20070iRT132,133,XT130..LNK197809-198301

sub77255-20100

main77255-20090iRT132..SED..LEF197809-198205

main77255-91256iRT132,XT130..WG;TT132..3FC..LEF197809-198301

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90445-12086iTT132..3FC..GEN198008-198112

L=300(*H,L=280)

sub95332-06030

main95332-06024iTT132..3FC..GEN197809-197904

L=300(*H,L=240)

sub95332-06030

main95332-06028iRT132197809-197901

L=300(*H,L=280)

sub95332-06030

main95332-06030iRT132;TT132..3FC..GEN197904-198301

L=300(*H,L=240)

sub95333-06030

main95332-06040iXT130197908-198011

L=400(*H,L=360)

sub95333-06040

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-06020iRT132,TT133..SED..LEF197809-198205

L=200(*H,L=120)

sub95333-06020

main95332-06022iRT132..WG;TT132..3FC..LEF197809-197904

L=300(*H,L=220)

sub95332-06030

main95332-06026iRT132..LNK197809-197904

L=300(*H,L=260)

sub95332-06030

main95332-06030iRT132,XT130..WG;TT132..3FC..LEF197904-198301

L=300(*H,L=260)

sub95333-06030

main95332-06030iTT132..3FC..LNK..GEN197904-198301

L=300(*H,L=220)

sub95333-06030

main95332-06030iTT132..3FC..LEF198008-198112

L=300(*H,L=240)

sub95333-06030

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-20020iRT13#,TT13#,XT130..LNK197809-198301

main77277-20030iRT130,132,TT133..SED..LEF197809-198205

77295SHIELD, FUEL FILLER PIPE

main77291-22010iRT130,132,TT133..SED..LEF197809-198205

LWR

main77292-14010iRT13#,TT13#,XT130..LNK197809-198301

77302RETAINER, FUEL TANK CAP

main77377-20010iTT133..SED197908-198008

77305LOCK SUB-ASSY, FUEL TANK CAP

main77037-20010iTT133..SED197908-198008

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-20010iRT13#,TT13#,XT130..HT,LB,SED197809-198301

main77350-91255iRT130,132,TT13#,XT130..WG197809-198301

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iRT130,132,TT13#,XT130..WG197809-198301

UPR

main90541-10005iRT13#,TT13#,XT130..HT,LB,SED197809-198301

LWR

77338ROD, FUEL TANK CAP LOCK

main77307-20010iTT133..SED197908-198008

77358RETAINER, FUEL INLET CUSHION

main77358-20010iRT13#,TT13#,XT130197809-198301

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-20010iTT133..SED197908-198008

main77366-20020iRT132,133,TT132..GL197809-198301

main77366-20020iTT132..LB..RHD..5F..GEN198001-198008

NEW ZEALAND SPEC

77387RING, FUEL INLET BOX

main77391-14010iRT13#,TT13#,XT130..HT,LB,SED197809-198301

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77641-14060iTT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK198012-198112

SAUDI ARABIA SPEC

main77641-14070iRT13#,TT13#,XT130..LNK198008-198301

77606CPROTECTOR, FUEL TANK, NO.2

main77643-14020iRT13#,TT13#,XT130..LNK198007-198301

77611BAND, FUEL TANK

main77601-14040iRT13#,TT13#,XT130..LNK197809-198301

sub77601-14060

main77601-20040iRT130,132,TT133..SED..LEF197809-198205

RH

main77602-20050iRT130,132,TT133..SED..LEF197809-198205

LH

77613BOLT, FUEL TANK BAND SET

main77645-14030iRT13#,TT13#..HT,LB,SED198008-198107

main90240-08020iRT133,TT132..RHD..LNK;RT130,132,TT133..LB,SED;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198107-198301

main90240-08150iRT133,XT130..STD..LNK198011-198301

sub90240-08060

main91121-50875iRT13#,TT13#..HT,LB,SED197809-198008

77652CUSHION, FUEL TANK, NO.1

main77651-14050iRT13#,TT13#,XT130..LNK197809-198102

sub77652-20010

main77651-20020iRT130,132,TT133..SED..LEF197809-198205

main77652-20010iTT132..RHD..LNK;RT13#,TT133,XT130..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198102-198301

77654CUSHION, FUEL TANK, NO.2

main77652-14060iRT13#,TT13#,XT130..LNK197809-198301

main77652-20010iRT130,132,TT133..SED..LEF197809-198205

77655CUSHION, FUEL TANK, NO.3

main77653-20030iRT130,132,TT133..SED..LEF197809-198205

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iRT130,132,TT13#..EUR,GEN,PHL197809-198205

7716912010SHAFT, FUEL TANK VALVE, NO.2

main77169-12010

9011910126

main90119-10126

9015950021

main90159-50021

9015960055

main90159-60055

9015960135

main90159-60135

9017010006

main90170-10006

9017910033

main90179-10033

9018906006

main90189-06006

9046062033

main90460-62033

9046400181

main90464-00181

9046814004

main90468-14004

9054108003

main90541-08003

9151140412

main91511-40412

9161140610

main91611-40610

9165140614

main91651-40614

9165161035

main91651-61035

9311914010

main93119-14010

9338115010

main93381-15010

9338515014

main93385-15014

9338615014

main93386-15014

9418040500

main94180-40500

9418040800

main94180-40800

9453101000

main94531-01000

9461211001

main94612-11001

9533106036

main95331-06036

9611210200

main96112-10200

9613230600

main96132-30600

70 parts on this diagram · 6 diagrams in section
