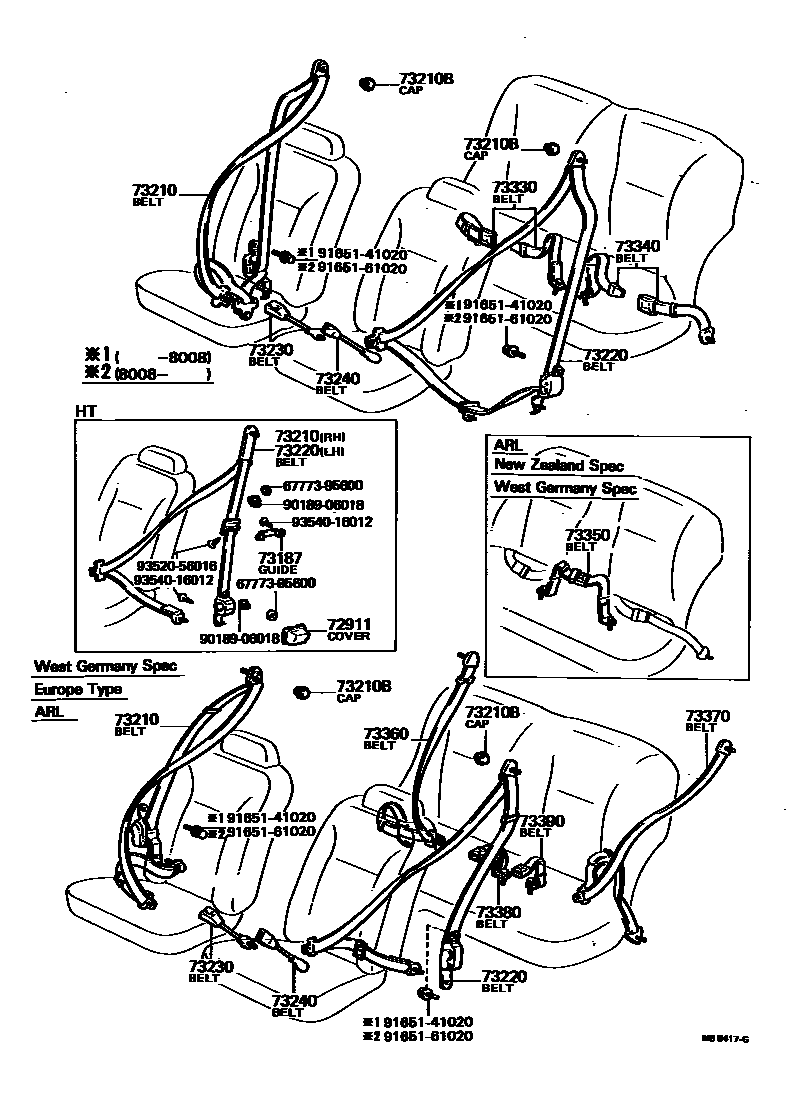

SEAT BELT & CHILD RESTRAINT SEAT
72911COVER, SEAT BELT RETRACTOR
RH
LH
73187GUIDE, FRONT SEAT SHOULDER BELT
73210BELT ASSY, FRONT SEAT OUTER, RH
TAKATA,BLACK,BLACK,TRIM2#
TAKATA,DARK WINE,RED/MAROON,TRIM3#
TAKATA,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
TOKAI RIKA,BLACK,BLACK,TRIM2#
TOKAI RIKA,DARK WINE,RED/MAROON,TRIM3#
TOKAI RIKA,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#; EUROPE TYPE,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; EUROPE TYPE,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; EUROPE TYPE,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; EUROPE TYPE,BEIGE,BEIGE,TRIM4#
main73210-20171-06iTT133..STD..LNK;TT132..LB..RHD..5F;TT132..(SED,WG)..RHD..(3FC,4F)..DLX198008-198112
NEW ZEALAND SPEC,LIGHT BROWN,BROWN,TRIM4#
TOKAI RIKA,BLACK,BLACK,TRIM2#
TOKAI RIKA,DARK WINE,RED/MAROON,TRIM3#
TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#
TAKATA,BLACK,BLACK,TRIM2#
TAKATA,DARK WINE,RED/MAROON,TRIM3#
TAKATA,LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
LIGHT BROWN,BROWN,TRIM4#
73210BCAP (FOR FRONT SEAT OUTER BELT)
DARK WINE,RED/MAROON,TRIM3#
BLACK,BLACK,TRIM2#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
TAKATA,BLACK,BLACK,TRIM2#
TAKATA,DARK WINE,RED/MAROON,TRIM3#
TAKATA,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
TOKAI RIKA,BLACK,BLACK,TRIM2#
TOKAI RIKA,DARK WINE,RED/MAROON,TRIM3#
TOKAI RIKA,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#; EUROPE TYPE,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; EUROPE TYPE,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; EUROPE TYPE,BEIGE,BEIGE,TRIM4#
EUROPE TYPE,BLACK,BLACK,TRIM2#
EUROPE TYPE,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; EUROPE TYPE,BEIGE,BEIGE,TRIM4#
EUROPE TYPE,LIGHT BROWN,BROWN,TRIM4#
TOKAI RIKA,BLACK,BLACK,TRIM2#
TOKAI RIKA,DARK WINE,RED/MAROON,TRIM3#
TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#
TAKATA,BLACK,BLACK,TRIM2#
TAKATA,DARK WINE,RED/MAROON,TRIM3#
TAKATA,LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
LIGHT BROWN,BROWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,BLACK,TRIM2#; TAKATA,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; TAKATA,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; TAKATA,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#; TAKATA,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; TAKATA,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; TAKATA,BEIGE,BEIGE,TRIM4#
TOKAI RIKA,BLACK,BLACK,TRIM2#
TOKAI RIKA,DARK WINE,RED/MAROON,TRIM3#
TOKAI RIKA,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#; EUROPE TYPE,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; EUROPE TYPE,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; EUROPE TYPE,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#; EUROPE TYPE,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; EUROPE TYPE,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; EUROPE TYPE,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
EUROPE TYPE,DARK WINE,RED/MAROON,TRIM3#
main73230-20172-05iRT132,TT13#..(LB,SED,WG)..LHD..GEN; RT132,TT132..ARL,EUR; TT133..RHD..STD..LNK;TT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX198002-198008
BEIGE,BEIGE,TRIM4#; EUROPE TYPE,BEIGE,BEIGE,TRIM4#; NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
main73230-20172-06iTT133..STD..LNK;TT132..LB..RHD..5F;TT132..(SED,WG)..RHD..(3FC,4F)..DLX198008-198112
NEW ZEALAND SPEC,LIGHT BROWN,BROWN,TRIM4#
TAKATA,BLACK,BLACK,TRIM2#
TAKATA,DARK WINE,RED/MAROON,TRIM3#
TAKATA,LIGHT BROWN,BROWN,TRIM4#
TOKAI RIKA,BLACK,BLACK,TRIM2#
TOKAI RIKA,DARK WINE,RED/MAROON,TRIM3#
TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#
SPLIT SEAT,BLACK,BLACK,TRIM2#
SPLIT SEAT,DARK WINE,RED/MAROON,TRIM3#
SPLIT SEAT,LIGHT BROWN,BROWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,BLACK,TRIM2#; TAKATA,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; TAKATA,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; TAKATA,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#; TAKATA,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; TAKATA,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; TAKATA,BEIGE,BEIGE,TRIM4#
TOKAI RIKA,BLACK,BLACK,TRIM2#
TOKAI RIKA,DARK WINE,RED/MAROON,TRIM3#
TOKAI RIKA,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#; EUROPE TYPE,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; EUROPE TYPE,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; EUROPE TYPE,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#; EUROPE TYPE,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#; EUROPE TYPE,DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#; EUROPE TYPE,BEIGE,BEIGE,TRIM4#
main73230-20172-01iTT133..RHD..STD..LNK;TT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX198002-198112
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
EUROPE TYPE,DARK WINE,RED/MAROON,TRIM3#
main73230-20172-05iRT132,TT13#..(LB,SED,WG)..LHD..GEN; RT132,TT132..ARL,EUR; TT133..RHD..STD..LNK;TT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX198002-198008
BEIGE,BEIGE,TRIM4#; EUROPE TYPE,BEIGE,BEIGE,TRIM4#; NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
TAKATA,BLACK,BLACK,TRIM2#
TAKATA,DARK WINE,RED/MAROON,TRIM3#
TAKATA,LIGHT BROWN,BROWN,TRIM4#
TOKAI RIKA,BLACK,BLACK,TRIM2#
TOKAI RIKA,DARK WINE,RED/MAROON,TRIM3#
TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#
SPLIT SEAT,BLACK,BLACK,TRIM2#
SPLIT SEAT,DARK WINE,RED/MAROON,TRIM3#
SPLIT SEAT,LIGHT BROWN,BROWN,TRIM4#
73330BELT ASSY, REAR SEAT LAP TYPE, RH
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-13010-01iTT133..STD..LNK;TT132..LB..RHD..(3FC,5F);TT132..SED..RHD..(3FC,4F)..DLX198008-198112
WEST GERMANY SPEC,BLACK,BLACK,TRIM2#
WEST GERMANY SPEC,DARK WINE,RED/MAROON,TRIM3#
main73350-13010-06iTT133..STD..LNK;TT132..LB..RHD..(3FC,5F);TT132..SED..RHD..(3FC,4F)..DLX198008-198112
WEST GERMANY SPEC,LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-20020-01iTT133..RHD..STD..LNK;TT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197909-198002
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
main73360-20021-02iTT133..RHD..STD..LNK;TT132..LB..RHD..5F..GEN;TT132..SED..RHD..(3FC,4F)..DLX198002-198008
NEW ZEALAND SPEC,DARK WINE,RED/MAROON,TRIM3#
main73360-20021-05iTT132..EUR; TT133..RHD..STD..LNK;TT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX198002-198008
BEIGE,BEIGE,TRIM4#; NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
main73360-20021-01iTT133..STD..LNK;TT132..LB..RHD..(3FC,5F);TT132..SED..RHD..(3FC,4F)..DLX198008-198112
WEST GERMANY SPEC,BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
main73360-20021-05iTT132..EUR; TT133..RHD..STD..LNK;TT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX198002-198008
BEIGE,BEIGE,TRIM4#; NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
main73380-20021-02iTT133..STD..LNK;TT132..LB..RHD..(3FC,5F);TT132..SED..RHD..(3FC,4F)..DLX198008-198112
WEST GERMANY SPEC,DARK WINE,RED/MAROON,TRIM3#
main73380-20021-05iTT132..EUR; TT133..RHD..STD..LNK;TT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX198002-198008
BEIGE,BEIGE,TRIM4#; NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
main73380-20021-01iTT133..RHD..STD..LNK;TT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX198002-198008
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
main73380-20021-02iTT133..STD..LNK;TT132..LB..RHD..(3FC,5F);TT132..SED..RHD..(3FC,4F)..DLX198008-198112
WEST GERMANY SPEC,DARK WINE,RED/MAROON,TRIM3#
main73380-20021-05iTT132..EUR; TT133..RHD..STD..LNK;TT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX198002-198008
BEIGE,BEIGE,TRIM4#; NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#
main73380-20021-06iTT133..STD..LNK;TT132..LB..RHD..(3FC,5F);TT132..SED..RHD..(3FC,4F)..DLX198008-198112
WEST GERMANY SPEC,LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
6777395600
main67773-95600
9018906018
main90189-06018
9165141020
main91651-41020
9165161020
main91651-61020
9352056016
main93520-56016
9354016012
main93540-16012
20 parts on this diagram · 1 diagram in section
