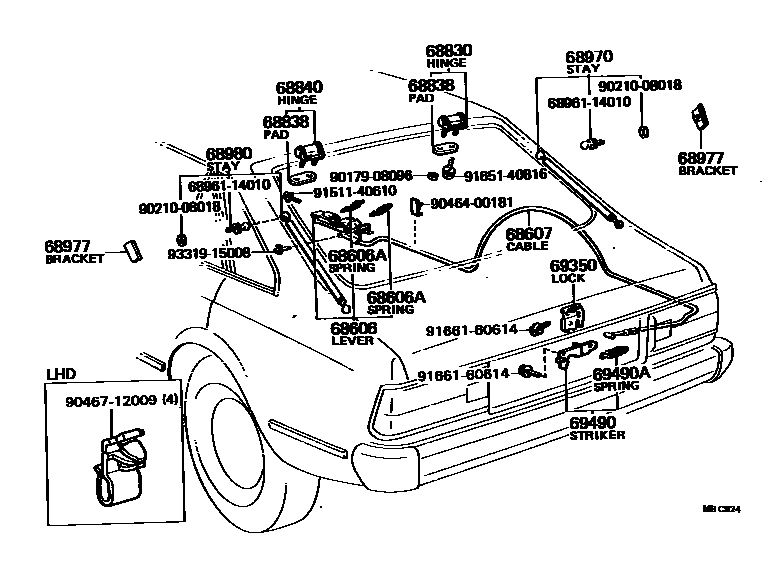

BACK DOOR LOCK & HANDLE

0001 1 0002 1

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-20020iRT132,TT132..RHD..GL197809-198008

main64606-20030iTT132..LB..LHD..GEN198008-198112

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004×2iRT132,TT132..LB..GL197809-198008

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-20040iTT132..LB..LHD..GEN198008-198112

main64607-20070iTT132..LB..RHD..5F..GEN198001-198008

NEW ZEALAND SPEC

68830HINGE ASSY, BACK DOOR, RH

main68801-14020iRT132,133,TT132..LB197809-198301

main68810-91256iRT130,132,TT13#,XT130..WG197809-198301

68838PAD, BACK DOOR HINGE, NO.1

main68838-14020×2iRT132,TT132..LB197809-197905

main68838-14021×2iRT13#,TT13#,XT130..LB,WG197908-198301

main68838-91255×2iRT13#,TT132..WG197809-197908

68840HINGE ASSY, BACK DOOR, LH

main68801-14020iRT132,133,TT132..LB197809-198301

main68810-91256iRT130,132,TT13#,XT130..WG197809-198301

68970STAY ASSY, BACK DOOR, RH

main68950-29015iRT132,TT132..LB197809-198101

TOKIKO

main68950-29016iRT132,133,TT132..LB198101-198301

TOKIKO

main68950-29025iRT132,TT132..LB197809-198101

KAYABA

main68950-29026iRT132,133,TT132..LB198101-198301

KAYABA

main68950-29035iRT130,132,TT13#..WG197809-198205

main68950-29045iRT130,132,TT13#,XT130..WG197809-198301

W/RR WIPER

68977BRACKET, BACK DOOR STAY

main68955-20010×2iRT132,133,TT132..LB197809-198301

68980STAY ASSY, BACK DOOR

main68950-29015iRT132,TT132..LB197809-198101

TOKIKO

main68950-29016iRT132,133,TT132..LB198101-198301

TOKIKO

main68950-29025iRT132,TT132..LB197809-198101

KAYABA

main68950-29026iRT132,133,TT132..LB198101-198301

KAYABA

main68950-29035iRT130,132,TT13#..WG197809-198205

main68950-29045iRT130,132,TT13#,XT130..WG197809-198301

W/RR WIPER

69350LOCK ASSY, BACK DOOR

main69350-20010iRT132,133,TT132..LB197809-198301

main69350-91258iRT13#,TT132..WG197809-197908

main69350-91259iRT130,132,TT13#,XT130..WG197908-198301

69490STRIKER ASSY, BACK DOOR LOCK

main69430-20020iRT132,TT132..LB197809-197908

main69430-20030iRT132,133,TT132..LB197908-198301

main69430-91255iRT13#,TT13#,XT130..WG197809-198005

main69430-91701iRT130,132,TT13#,XT130..WG198005-198301

69490ASPRING(FOR BACK DOOR LOCK STRIKER)

main90506-08001iRT132,TT132..LB197809-197908

main90506-08107iRT132,133,TT132..LB197908-198301

6896114010BOLT, BACK DOOR STAY

main68961-14010

9017908096

main90179-08096

9021008018

main90210-08018

9046400181

main90464-00181

9046712009

main90467-12009

9151140610

main91511-40610

9165140816

main91651-40816

9166160614

main91661-60614

9331915008

main93319-15008

21 parts on this diagram · 2 diagrams in section
