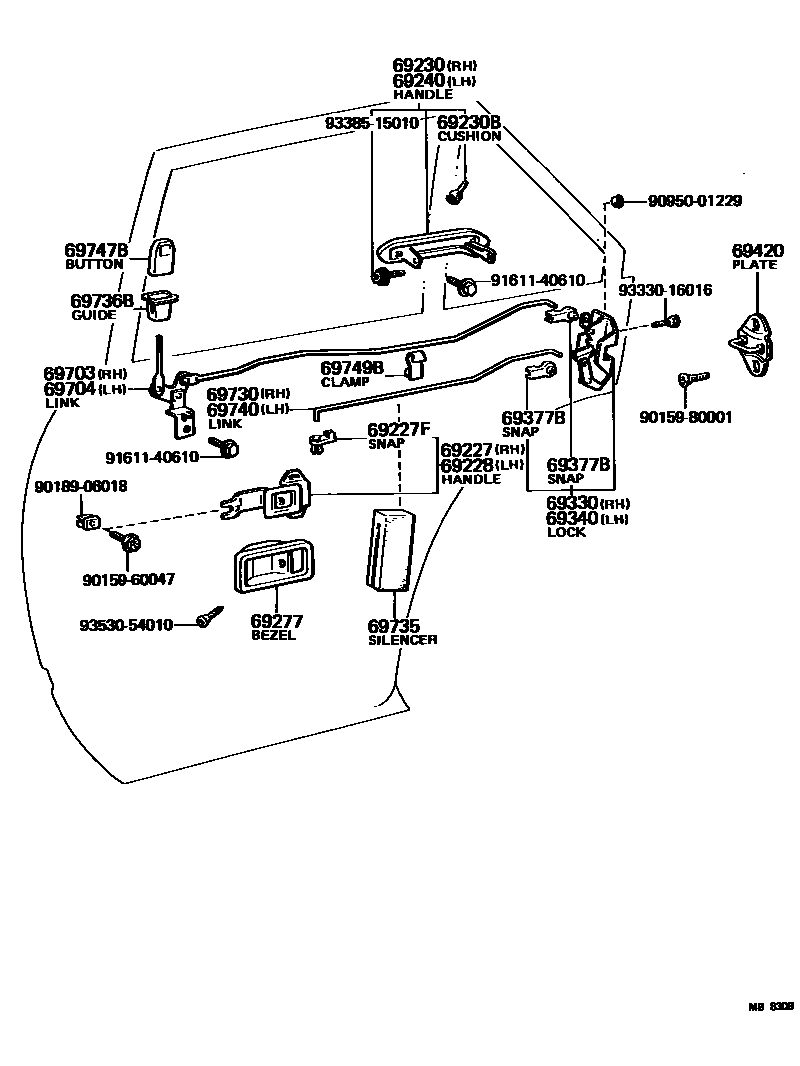

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69205-20020iRT13#,TT13#,XT130..LB,SED,WG197809-198301

69227FSNAP(FOR REAR DOOR INSIDE HANDLE)

main69273-30020×2iRT13#,TT13#,XT130..LB,SED,WG197809-198301

69228HANDLE, REAR DOOR INSIDE, LH

main69206-20020iRT13#,TT13#,XT130..LB,SED,WG197809-198301

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20050iRT13#,TT13#,XT130..LB,SED,WG197809-198008

main69230-20060iRT13#,TT13#,XT130..LB,SED,WG198008-198301

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021×2iRT13#,TT13#,XT130..LB,SED,WG197809-198301

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20050iRT13#,TT13#,XT130..LB,SED,WG197809-198008

main69240-20060iRT13#,TT13#,XT130..LB,SED,WG198008-198301

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-16040-01iRT13#,TT13#,XT130..LB,SED,WG197809-198301

BLACK,BLACK,TRIM2#

main69277-16040-02iRT13#,TT13#,XT130..LB,SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

main69277-16040-05iXT130198008-198101

BEIGE,BEIGE,TRIM4#

main69277-16040-16iRT13#,TT13#,XT130..LB,SED,WG198008-198301

LIGHT BROWN,BROWN,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69330-20060iRT13#,TT13#,XT130..LB,SED,WG197809-198008

main69330-20090iRT13#,TT13#,XT130..LB,SED,WG198008-198301

69340LOCK ASSY, REAR DOOR, LH

main69340-20060iRT13#,TT13#,XT130..LB,SED,WG197809-198008

main69340-20090iRT13#,TT13#,XT130..LB,SED,WG198008-198301

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69377-30020×4iRT13#,TT13#,XT130..LB,SED,WG197809-198008

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-12040×2iRT13#,TT133,XT130;TT132..LB..LHD..5F;TT132..LHD..(3FC,4F);TT132..(LB,SED,WG)..RHD198009-198301

main69410-22020×2iRT13#,TT13#,XT130..LB,SED,WG197809-198008

main69410-22030×2iRT13#,TT13#,XT130..LB,SED,WG198008-198009

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-20010iRT13#,TT13#,XT130..LB,SED,WG197809-198008

main69770-20011iRT13#,TT13#,XT130..LB,SED,WG198008-198301

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-20010iRT13#,TT13#,XT130..LB,SED,WG197809-198008

main69780-20011iRT13#,TT13#,XT130..LB,SED,WG198008-198301

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-20030iRT13#,TT13#,XT130..LB,SED,WG197809-198008

main69713-20031iRT13#,TT13#,XT130..LB,SED,WG198008-198301

69735SILENCER, REAR DOOR LOCK LINK

main69759-30021×2iRT13#,TT13#,XT130..LB,SED,WG197809-198301

69736BGUIDE, REAR DOOR LOCK LINK

main69736-22020×2iXT130;RT13#,TT13#..(LB,SED,WG)..(DLX,GL)197809-198108

main69736-22021×2iXT130;TT132..LB..LHD..5F;RT130,133,TT133..DLX,GL;TT132..LHD..(3FC,4F)..DLX;TT132..(LB,SED,WG)..RHD..DLX198108-198301

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-20030iRT13#,TT13#,XT130..LB,SED,WG197809-198008

main69714-20031iRT13#,TT13#,XT130..LB,SED,WG198008-198301

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-20020-01×2iRT13#,TT13#,XT130..LB,SED,WG197809-198301

BLACK,BLACK,TRIM2#

main69741-20020-02×2iRT13#,TT13#,XT130..LB,SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

main69741-20020-05×2iXT130198008-198101

BEIGE,BEIGE,TRIM4#

main69741-20020-26×2iRT13#,TT13#,XT130..LB,SED,WG198008-198301

LIGHT BROWN,BROWN,TRIM4#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010×2iRT13#,TT13#,XT130..LB,SED,WG197809-198208

main69749-30020×2iRT133,XT130198208-198301

9015960047

main90159-60047

9015980001

main90159-80001

9018906018

main90189-06018

9095001229

main90950-01229

9161140610

main91611-40610

9333016016

main93330-16016

9338515010

main93385-15010

9353054010

main93530-54010

27 parts on this diagram · 1 diagram in section
