DECK BOARD & DECK TRIM COVER

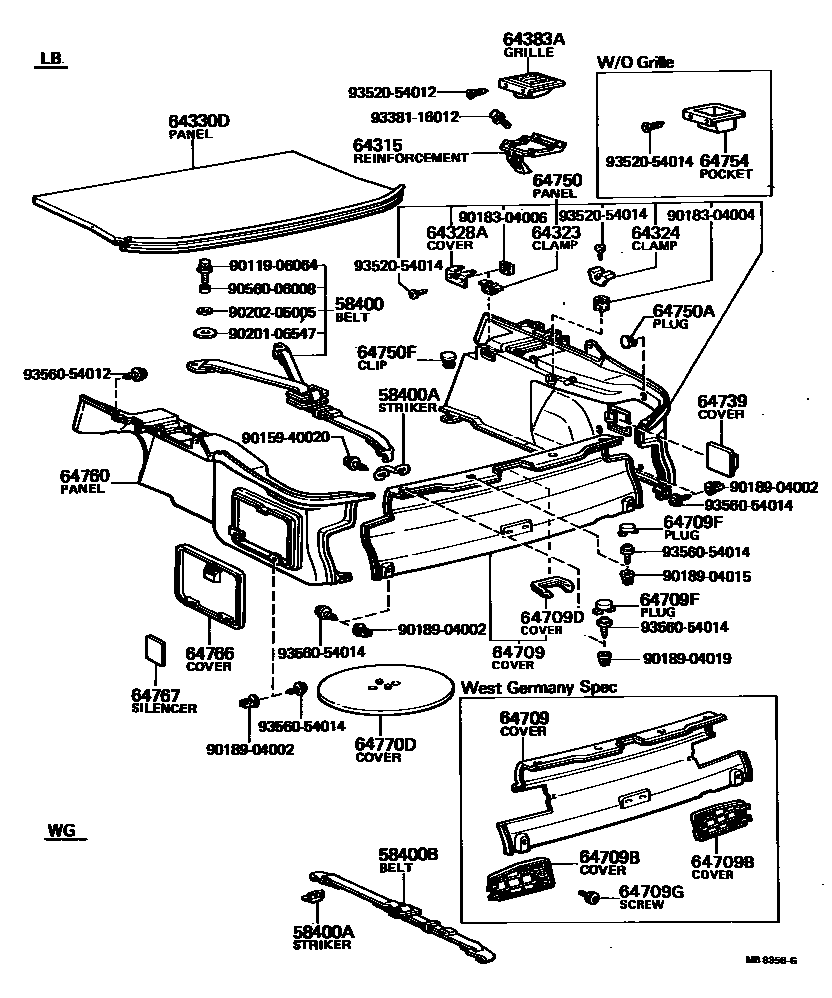

Parts diagram
58400BELT ASSY, LUGGAGE HOLD, NO.1
main58400-14012-01i197809-198102
BLACK,BLACK,TRIM2#
main58400-14012-02i197809-198102
DARK WINE,RED/MAROON,TRIM3#
main58400-14012-06i197809-198008
LIGHT BROWN,BROWN,TRIM4#
main58400-14012-26i198008-198102
LIGHT BROWN,BROWN,TRIM4#
main58400-14040-01i198102-198301
BLACK,BLACK,TRIM2#
main58400-14040-02i198102-198301
DARK WINE,RED/MAROON,TRIM3#
main58400-14040-26i198102-198301
LIGHT BROWN,BROWN,TRIM4#
58400ASTRIKER, LUGGAGE HOLD BELT
main58460-91255×4i197809-198301
main58461-14020i197809-198301
58400BBELT ASSY, LUGGAGE HOLD, NO.2
main58400-91255-01×2i197809-198008
BLACK,BLACK,TRIM2#
main58400-91255-05×2i197809-198008
BEIGE,BEIGE,TRIM4#
main58400-91255-06×2i198008-198301
LIGHT BROWN,BROWN,TRIM4#
64315REINFORCEMENT SUB-ASSY, PACKAGE TRAY BRACKET
main64304-20010×2i197809-198301
64323CLAMP, PACKAGE TRAY TRIM, NO.1
main64323-20010×2i197809-198301
64324CLAMP, PACKAGE TRAY TRIM, NO.2
main64324-20010-01×2i197809-198301
BLACK,BLACK,TRIM2#
main64324-20010-02×2i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main64324-20010-05×2i197809-198008
BEIGE,BEIGE,TRIM4#
main64324-20010-06×2i198008-198301
LIGHT BROWN,BROWN,TRIM4#
64328ACOVER, PACKAGE TRAY TRIM CLAMP
main64328-20010-01×2i197809-198301
BLACK,BLACK,TRIM2#
main64328-20010-02×2i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main64328-20010-05×2i197809-198008
BEIGE,BEIGE,TRIM4#
main64328-20010-06×2i198008-198301
LIGHT BROWN,BROWN,TRIM4#
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-20290-01i197809-198301
BLACK,BLACK,TRIM2#
main64330-20290-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main64330-20290-05i197809-198008
BEIGE,BEIGE,TRIM4#
main64330-20290-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
64383AGRILLE, SPEAKER, REAR(FOR DECK TRIM)
main64383-20020-01×2i197809-198301
BLACK,BLACK,TRIM2#
main64383-20020-02×2i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main64383-20020-05×2i197809-198008
BEIGE,BEIGE,TRIM4#
main64383-20020-06×2i198008-198301
LIGHT BROWN,BROWN,TRIM4#
64709COVER SUB-ASSY, LOWER BACK PANEL
main64706-20020-01i197809-198301
BLACK,BLACK,TRIM2#
main64706-20020-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main64706-20020-05i197809-198008
BEIGE,BEIGE,TRIM4#
main64706-20020-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
main64706-20030-01i197809-198008
WEST GERMANY SPEC,BLACK,BLACK,TRIM2#
main64706-20030-02i197809-198008
WEST GERMANY SPEC,DARK WINE,RED/MAROON,TRIM3#
main64706-20030-05i197809-198008
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
64709BCOVER, SERVICE HOLE, NO.1(FOR LOWER BACK PANEL COVER)
main64745-20010-01i197809-198008
WEST GERMANY SPEC,RH,BLACK,BLACK,TRIM2#
main64745-20010-02i197809-198008
WEST GERMANY SPEC,RH,DARK WINE,RED/MAROON,TRIM3#
main64745-20010-05i197809-198008
WEST GERMANY SPEC,RH,BEIGE,BEIGE,TRIM4#
main64746-20010-01i197809-198008
WEST GERMANY SPEC,LH,BLACK,BLACK,TRIM2#
main64746-20010-02i197809-198008
WEST GERMANY SPEC,LH,DARK WINE,RED/MAROON,TRIM3#
main64746-20010-05i197809-198008
WEST GERMANY SPEC,LH,BEIGE,BEIGE,TRIM4#
64709DCOVER, BACK DOOR STRIKER
main64749-20010-01i197809-198301
BLACK,BLACK,TRIM2#
main64749-20010-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main64749-20010-05i197809-198008
BEIGE,BEIGE,TRIM4#
main64749-20010-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
64709FPLUG, HOLE(FOR LOWER BACK PANEL COVER)
main90950-01245-01×4i197809-198301
BLACK,BLACK,TRIM2#
main90950-01245-02×4i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main90950-01245-05×4i197809-198008
BEIGE,BEIGE,TRIM4#
main90950-01245-06×4i198008-198301
LIGHT BROWN,BROWN,TRIM4#
64709GSCREW, LOWER BACK SERVICE HOLE COVER
main64719-20020i197809-198008
WEST GERMANY SPEC
64739COVER, DECK TRIM SIDE WASHER
main64739-14020-01i197809-198003
BLACK,BLACK,TRIM2#
main64739-14020-02i197809-198003
DARK WINE,RED/MAROON,TRIM3#
main64739-14020-05i197809-198003
BEIGE,BEIGE,TRIM4#
main64739-14021-01i198003-198301
BLACK,BLACK,TRIM2#
main64739-14021-02i198003-198301
DARK WINE,RED/MAROON,TRIM3#
main64739-14021-05i198003-198008
BEIGE,BEIGE,TRIM4#
main64739-14021-16i198008-198301
LIGHT BROWN,BROWN,TRIM4#
64750PANEL ASSY, DECK SIDE TRIM, RH
main64730-20010-01i197809-198301
BLACK,BLACK,TRIM2#
main64730-20010-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main64730-20010-05i197809-198008
BEIGE,BEIGE,TRIM4#
main64730-20010-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
main64730-20020-01i197809-198008
WEST GERMANY SPEC,BLACK,BLACK,TRIM2#
main64730-20020-02i197809-198008
WEST GERMANY SPEC,DARK WINE,RED/MAROON,TRIM3#
main64730-20020-05i197809-198008
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
64750APLUG, HOLE(FOR DECK SIDE TRIM PANEL)
main90950-01246-01×3i197809-198301
BLACK,BLACK,TRIM2#
main90950-01246-02×3i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main90950-01246-05×3i197809-198008
BEIGE,BEIGE,TRIM4#
main90950-01246-06×3i198008-198301
LIGHT BROWN,BROWN,TRIM4#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-15002×2i197809-198301
64754POCKET, QUARTER TRIM
main62594-20010-01×2i198008-198112
BLACK,BLACK,TRIM2#
main62594-20010-02×2i197809-198008
DARK WINE,RED/MAROON,TRIM3#
main62594-20010-05×2i197809-198008
BEIGE,BEIGE,TRIM4#
main62594-20010-06×2i198008-198112
LIGHT BROWN,BROWN,TRIM4#
64760PANEL ASSY, DECK SIDE TRIM, LH
main64740-20010-01i197809-198301
BLACK,BLACK,TRIM2#
main64740-20010-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main64740-20010-05i197809-198008
BEIGE,BEIGE,TRIM4#
main64740-20010-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
main64740-20020-01i197809-198008
WEST GERMANY SPEC,BLACK,BLACK,TRIM2#
main64740-20020-02i197809-198008
WEST GERMANY SPEC,DARK WINE,RED/MAROON,TRIM3#
main64740-20020-05i197809-198008
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
64766COVER SUB-ASSY, QUARTER TRIM JACK
main64707-20010-01i197809-198301
BLACK,BLACK,TRIM2#
main64707-20010-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main64707-20010-05i197809-198008
BEIGE,BEIGE,TRIM4#
main64707-20010-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
64767SILENCER, JACK COVER
main64767-20020i197809-198301
64770DCOVER ASSY, SPARE WHEEL
main64770-14010i197809-198301
9011906064
main90119-06064
9015940020
main90159-40020
9018304004
main90183-04004
9018304006
main90183-04006
9018904002
main90189-04002
9018904015
main90189-04015
9018904019
main90189-04019
9020106547
main90201-06547
9020205005
main90202-05005
9056006008
main90560-06008
9338116012
main93381-16012
9352054012
main93520-54012
9352054014
main93520-54014
9356054012
main93560-54012
9356054014
main93560-54014

38 parts on this diagram · 1 diagram in section
