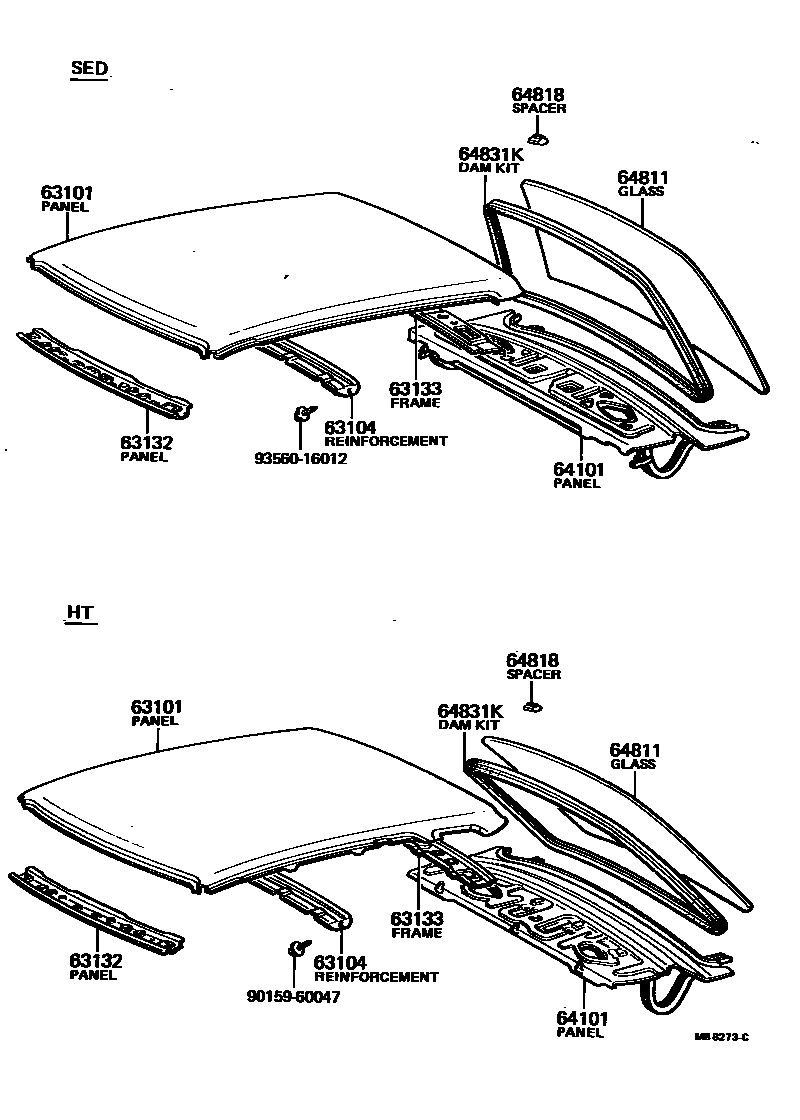

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

63101PANEL SUB-ASSY, ROOF

main63111-20090iRT13#,TT13#,XT130..SED197809-198301

main63111-20100iRT132,133,TT132..LB197809-198301

main63111-20110iTT132..GL198008-198108

W/SUN ROOF

main63111-91256iRT130,132,TT13#,XT130..WG197809-198301

main63111-95501iRT132,TT132..HT197809-198112

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-20010iRT13#,TT13#,XT130..SED197809-198301

main63141-20020iRT132,133,TT132..LB197809-198301

main63141-95500iRT132,TT132..HT197809-198112

main63142-20010iTT132..GL198008-198108

W/SUN ROOF

63132PANEL, WINDSHIELD HEADER, INNER

main63102-20010iRT13#,TT13#,XT130..SED,WG197809-198301

main63102-20030iRT132,133,TT132..LB197809-198301

main63132-95501iRT132,TT132..HT197809-198112

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-20020iRT132,133,TT132..LB197809-198301

main63133-20070iRT13#,TT13#,XT130..SED197809-198301

main63133-95501iRT132,TT132..HT197809-198112

64101PANEL SUB-ASSY, UPPER BACK

main64101-20120iRT130,132,TT13#,XT130..SED197809-198301

main64101-95505iRT132,TT132..HT197809-198008

main64101-95509iTT132..HT198008-198112

64811GLASS, BACK WINDOW

main64811-20310iRT130,132,TT13#..SED..STD197809-198205

*TEM,T=4.0

main64811-20320iRT130,132,TT13#..SED..(GEN,PHL)197809-198205

*TT,T=4.0

main64811-20330iRT133,XT130..STD..LNK197908-198301

*EHT,T=4.0

main64811-20340iRT13#,TT13#,XT130..SED198008-198301

*EHTT,T=4.0

main64811-20350iTT132..SED..EUR197809-198008

*EHTT,T=4.0,COLD SPEC

main64811-95505iRT132,TT132..HT197809-198112

*EHTT,T=4.0

64818SPACER, BACK WINDOW GLASS

main64818-20010iRT13#,TT13#,XT130..HT,SED197809-198301

64831KDAM KIT, BACK WINDOW GLASS

main04562-14010iRT13#,TT13#,XT130..SED197809-198301

main04562-30030iRT132,TT132..HT198001-198112

main56117-95801iRT132..HT197809-198001

9015960047

main90159-60047

9356016012

main93560-16012

10 parts on this diagram · 4 diagrams in section
