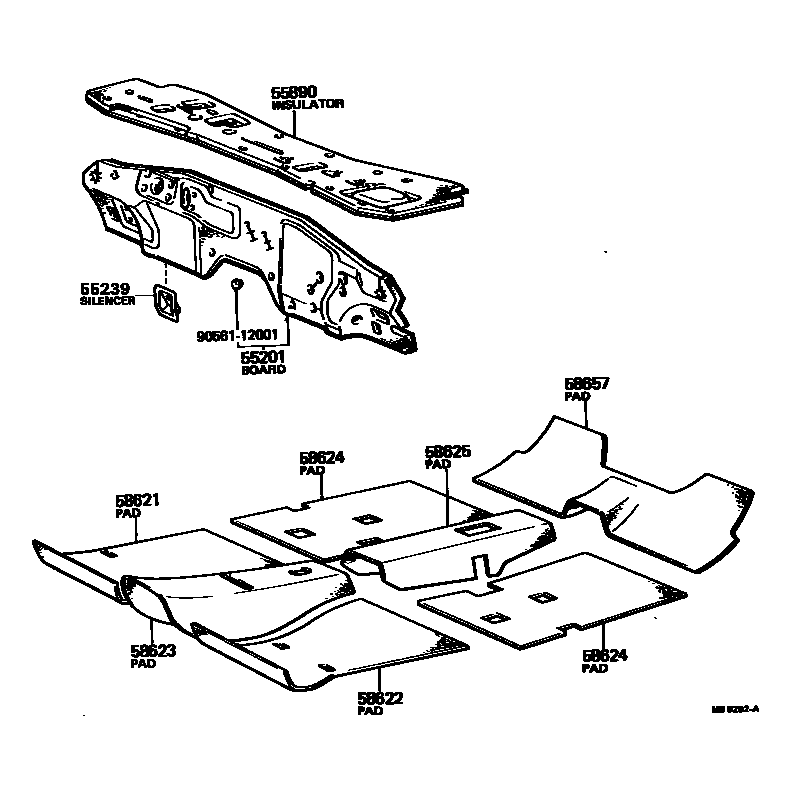

DASH SILENCER BOARD & FLOOR SILENCER PAD

55201BOARD SUB-ASSY, DASH PANEL SILENCER

main55210-20010iRT133;RT130,132,TT13#..RHD197809-198301

main55210-20020iRT13#,TT13#..LHD197809-198008

main55210-20021iRT130,132,TT13#..LHD198008-198205

55239SILENCER, STEERING COLUMN HOLE COVER

main55257-20020iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main55257-20030iRT133198108-198301

W/POWER STEERING

main55257-20040iRT13#,TT132..LHD197809-197908

main55257-20070iRT130,132,TT13#..LHD197908-198205

55890INSULATOR ASSY, COWL TOP

main55780-20030iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main55780-20040iRT130,132,TT13#..LHD197809-198205

58621PAD, FLOOR SILENCER, FRONT RH

main58621-20030iRT13#,TT13#..4F..STD..GEN197809-198008

58622PAD, FLOOR SILENCER, FRONT LH

main58621-20030iRT13#,TT13#..4F..STD..GEN197809-198008

58623PAD, FLOOR SILENCER, FRONT CENTER

main58623-20040iRT13#,TT13#..SED..MTM..GEN; RT132,TT132..HT;RT132,TT132..MTM..(ARL,EUR)197809-198008

main58623-20050iTT132..3FC..EUR198008-198108

58624PAD, FLOOR SILENCER, REAR SIDE

main58624-20030×2iRT130,132,TT13#..4F..STD198008-198205

58625PAD, FLOOR SILENCER, REAR CENTER

main58626-20030iRT13#,TT13#..4F..STD..GEN197809-198008

58657PAD, UNDER REAR SEAT SILENCER

main58657-20050iRT13#,TT13#,XT130..HT,LB,SED197809-198301

9056112001

main90561-12001

10 parts on this diagram · 1 diagram in section
