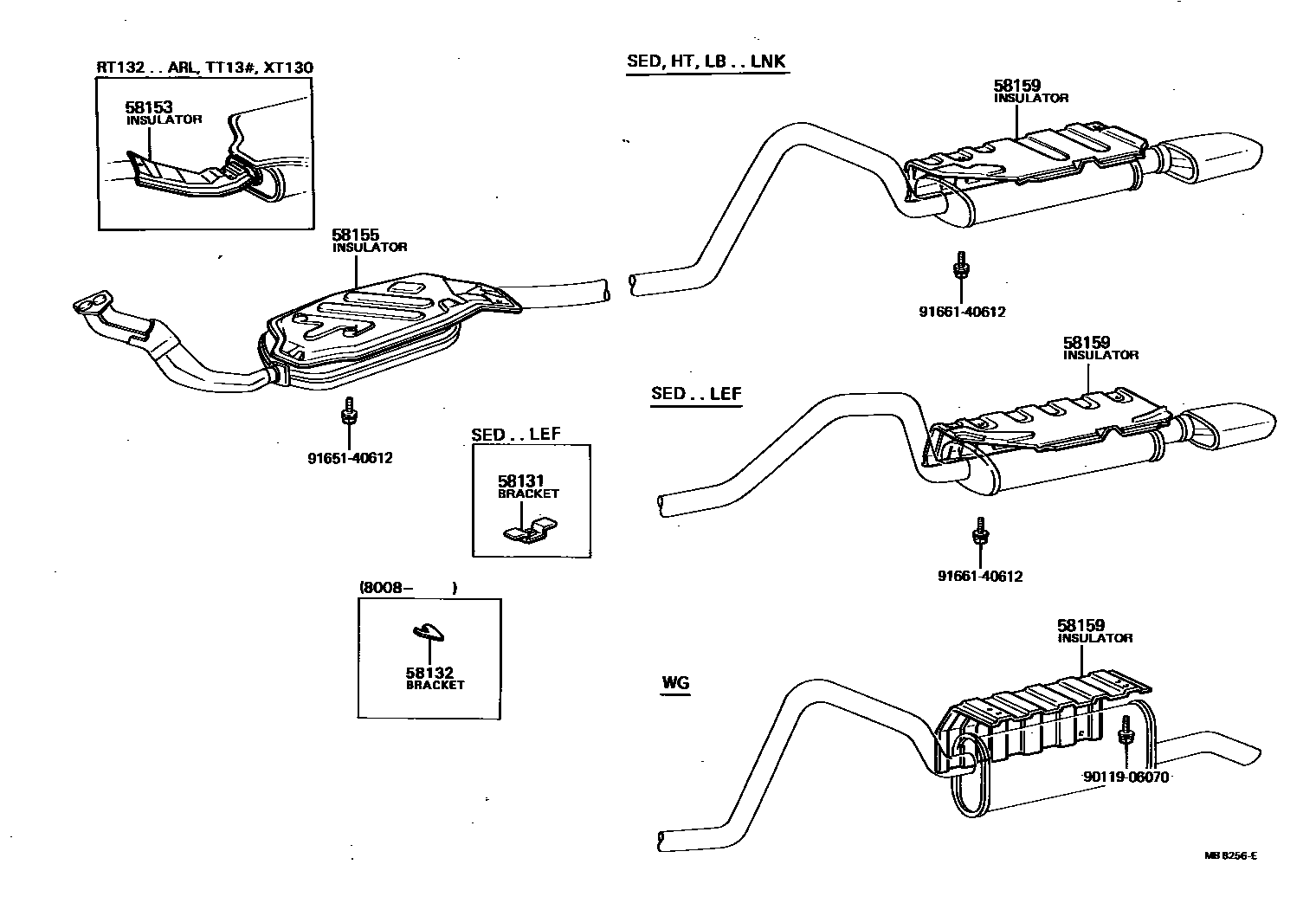

FLOOR INSULATOR

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12020iRT13#,TT133..SED..LEF197809-198008

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-14050iRT13#,TT13#,XT130198008-198301

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-14011iXT130198012-198301

main58153-20020iTT133;TT132..RHD;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198012-198112

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58152-14080iRT13#,TT132197809-197907

main58152-14081iRT13#,TT13#,XT130197907-198301

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-14020iRT13#,TT13#,XT130..LNK197809-198301

main58327-20020iRT130,132,TT133..SED..LEF197809-198205

main58368-21020iRT130,132,TT13#,XT130..WG197809-198301

9011906070

main90119-06070

9165140612

main91651-40612

9166140612

main91661-40612

8 parts on this diagram · 1 diagram in section
