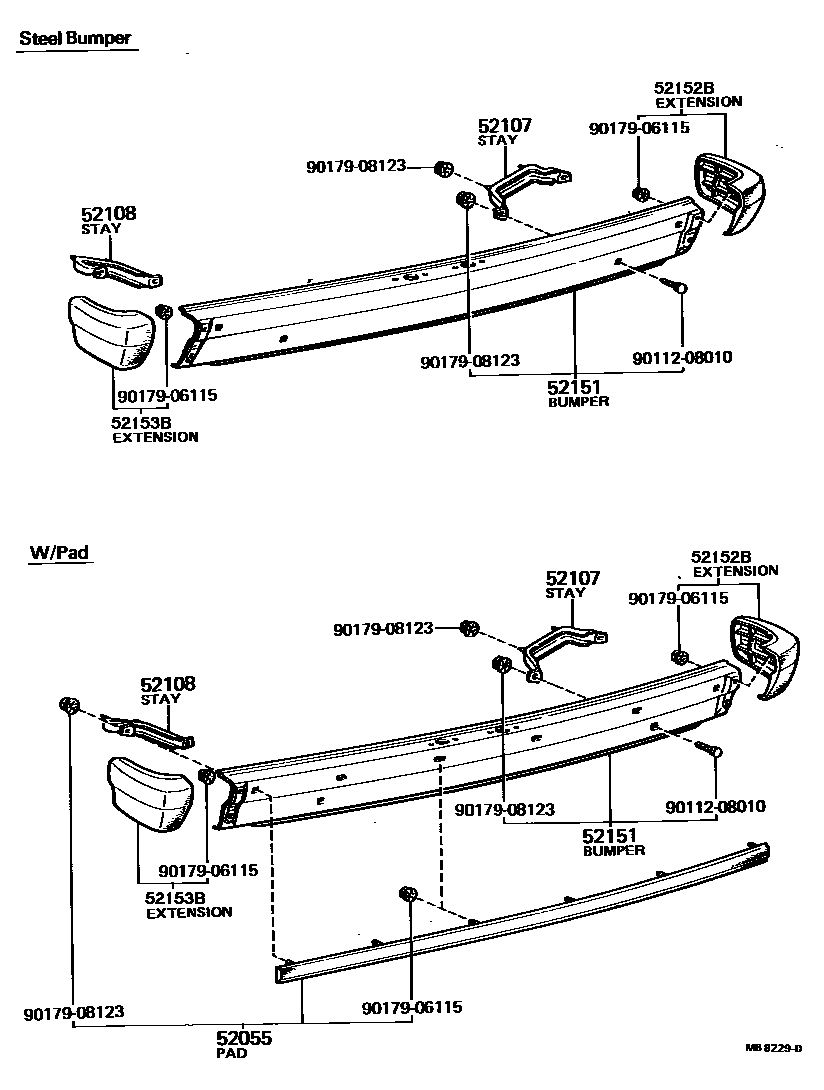

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1

52055PAD SUB-ASSY, REAR BUMPER

main52055-29045iRT13#,TT13#,XT130..ARL,EUR,GEN197809-198008

main52055-29085iRT13#,TT13#..LB,SED198008-198301

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-20030iRT13#,TT13#..(LB,SED)..LNK198008-198301

main52015-91255iRT130,132,TT13#,XT130..WG197809-198111

main52181-20070iRT13#,TT13#,XT130..LNK197809-198008

main52181-20080iRT13#,TT133..SED..LEF197809-198008

main52181-20081iRT132,TT133..SED..LEF198008-198205

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-20030iRT13#,TT13#..(LB,SED)..LNK198008-198301

main52016-91255iRT130,132,TT13#..WG198111-198205

main52182-20070iXT130..LNK198008-198111

main52182-20080iRT13#,TT133..SED..LEF197809-198008

main52182-20081iRT132,TT133..SED..LEF198008-198205

52151BUMPER ASSY, REAR

main52151-29315iXT130..LNK198008-198111

sub52151-29475

main52151-29325iXT130..LNK198008-198111

W/PAD

sub52151-29485

main52151-29335iRT13#,TT13#,XT130..HT,WG197809-198008

sub52151-91258

main52151-29345iRT13#,TT13#..(HT,WG)..GEN197809-198008

W/PAD

sub52151-91259

main52151-29405iRT132,TT13#..SED..STD198008-198205

sub52151-20190

main52151-29425iRT13#,TT13#..LB,SED198008-198301

W/PAD

sub52151-20210

52152BEXTENSION, REAR BUMPER, RH

52153BEXTENSION, REAR BUMPER, LH

9011208010

main90112-08010

9017906115

main90179-06115

9017908123

main90179-08123

9 parts on this diagram · 6 diagrams in section
