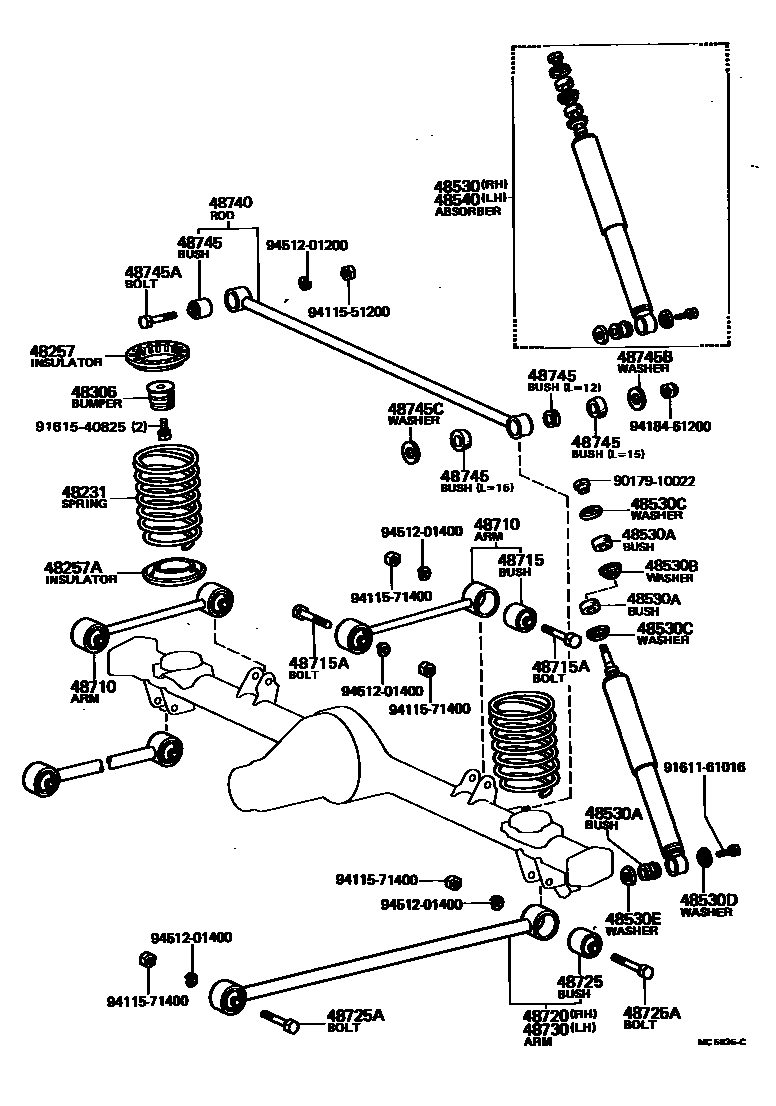

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1 0006 1 0007 1 0008 1 0009 1

48231SPRING, COIL, REAR

main48231-20010×2iRT13#..SED; TT13#..SED..GEN197809-198008

main48231-20020×2iRT132,TT132..LB..GEN; TT132..SED..EUR197809-198008

main48231-20030×2iTT132..LB..EUR197809-198008

main48231-20040×2iRT132..ARL197908-198008

main48231-20050×2iTT132..EUR198008-198108

main48231-20070×2iTT132..LB..GEN198008-198112

main48231-20080×2iRT130; TT13#..HT,SED198008-198112

48257INSULATOR, REAR COIL SPRING

main48257-14020×2iRT13#,TT13#..LNK197809-198301

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-14030×2iRT13#,TT13#..LNK197809-198301

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030×2iRT13#,TT13#..LNK197809-198301

main48306-29015×2iRT130,132,TT13#..WG198008-198112

main48306-29025×2iRT130,132,TT133..SED..LEF197809-198112

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29515iRT13#..LNK197809-198011

main48531-29525iRT132..ARL198011-198108

main48531-29545iTT132..EUR197809-198108

main48531-29555iRT130,132,TT133..SED..LEF197809-198205

main48531-29565iRT130,132,TT13#..WG197809-198205

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001×2iRT13#,TT13#198008-198301

LWR

main90385-16060×2iRT13#,TT13#,XT130197809-198008

LWR

main90540-10002×2iRT13#,TT13#,XT130198008-198301

UPR,OD=30,ID=10

main90540-10004×2iXT130197910-198008

UPR,OD=30,ID=10

main90540-10005×2iRT13#,TT13#,XT130..HT,LB,SED198008-198301

UPR,OD=30,ID=10&14

main90948-01003×4iRT130,132,TT13#..WG197809-198205

UPR

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02007×2iRT13#,TT13#,XT130197809-197910

main90948-02050×2iRT13#,TT13#197910-198008

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002×4iRT13#,TT13#,XT130197809-198301

LWR,ID=10.5

main90948-02045×2iRT13#,TT13#,XT130197809-198301

UPR,ID=14

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012×2iRT13#,TT13#,XT130197809-198301

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iRT13#,TT13#,XT130197809-198301

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29515iTT13#..LNK..GEN197809-198112

main48531-29525iRT133..GL198108-198112

main48531-29545iTT132..EUR197809-198108

main48531-29555iRT130,132,TT133..SED..LEF197809-198205

main48531-29565iRT130,132,TT13#..WG197809-198205

48710ARM ASSY, UPPER CONTROL

main48710-14040×2iRT13#,TT132..LNK197809-197908

main48710-14060×2iTT132..EUR197908-198108

48715BUSH, UPPER CONTROL ARM

main48702-14010×2iTT132..EUR197908-198108

main48702-22060×2iRT130,132,TT133,XT130..LNK197908-198301

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90101-14002×2iRT133,XT130..STD..LNK198106-198301

*14-1.5PX141-23

main90101-14007×2iRT13#,TT13#,XT130..LNK197809-198106

*14-1.5PX76-21

main90105-14006×2iTT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198106-198112

*14-1.5PX77-28

main90105-14009×2iTT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198106-198112

*14-1.5PX141-25

48720ARM ASSY, LOWER CONTROL, RH

main48720-14040iRT13#,TT13#,XT130..LNK197809-198301

48725BUSH, LOWER CONTROL ARM

main48702-14020×2iRT13#,TT13#,XT130..LNK197809-198301

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-14007×4iRT133,XT130..STD..LNK198106-198301

*14-1.5PX76-21

main90105-14006×4iTT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198106-198112

*14-1.5PX77-28

48730ARM ASSY, LOWER CONTROL, LH

main48720-14040iRT13#,TT13#,XT130..LNK197809-198301

48740ROD ASSY, REAR LATERAL CONTROL

main48740-14050iRT13#,TT13#,XT130..LNK197809-198008

main48740-20030iTT13#..LNK;RT13#..DLX,GL198008-198112

48745BUSH, LATERAL CONTROL ROD

main48706-14010iRT130,132,TT13#,XT130..LNK197809-198301

BODY SIDE

main90385-20001×2iRT130,132,TT13#,XT130..LNK197809-198301

HOUSING SIDE,L=15

main90386-20001iRT130,132,TT13#,XT130..LNK197809-198301

HOUSING SIDE,L=12

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-12032iRT13#,TT13#,XT130..LNK197809-198008

*12-1.25PX65-25

main90106-12002iTT13#..LNK;RT13#..DLX,GL198008-198112

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iRT13#,TT13#,XT130..LNK197809-198301

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iRT13#,TT13#,XT130..LNK197809-198008

9017910022

main90179-10022

9161161016

main91611-61016

9161540825

main91615-40825

9411551200

main94115-51200

9411571400

main94115-71400

9418461200

main94184-61200

9451201200

main94512-01200

9451201400

main94512-01400

31 parts on this diagram · 6 diagrams in section
