Toyota 261230 — FRONT SPRING & SHOCK ABSORBER

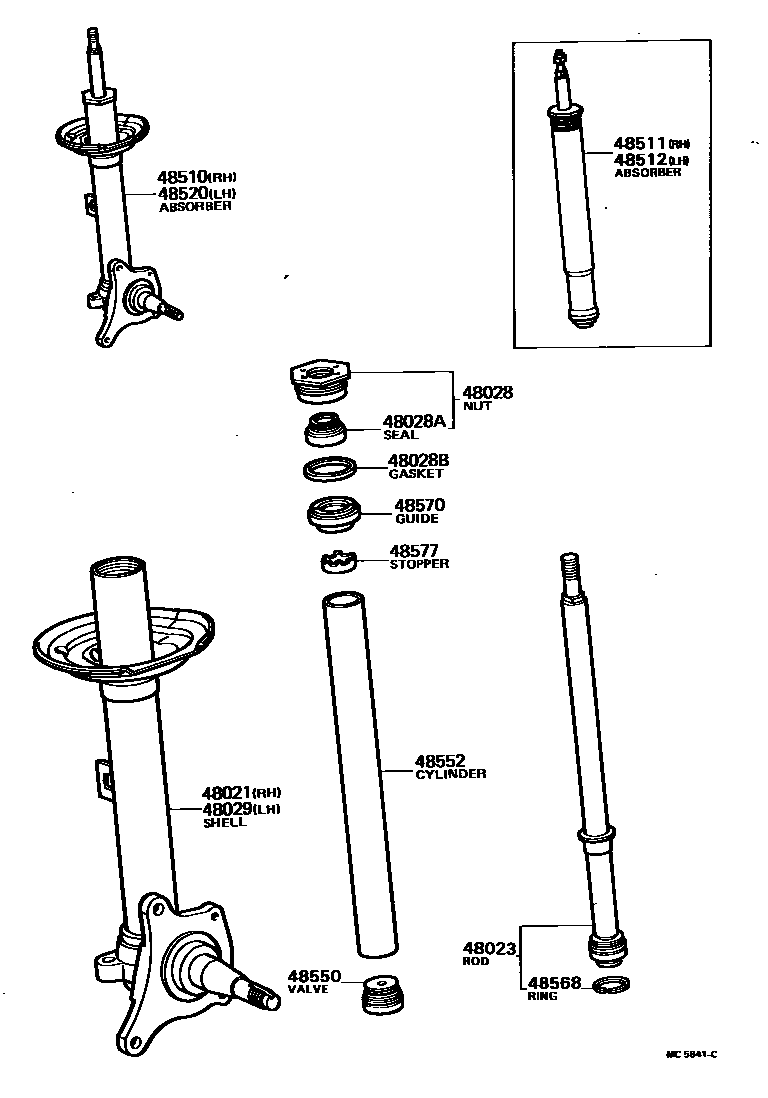

Parts diagram

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

48028NUT SUB-ASSY, SHOCK ABSORBER RING

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

48510ABSORBER ASSY, SHOCK, FRONT RH

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

48520ABSORBER ASSY, SHOCK, FRONT LH

48550VALVE ASSY, SHOCK ABSORBER BASE

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

48568RING, SHOCK ABSORBER PISTON

48570GUIDE ASSY, SHOCK ABSORBER ROD

48577STOPPER, SHOCK ABSORBER REBOUND

15 parts on this diagram · 3 diagrams in section

FRONT SPRING & SHOCK ABSORBER for Toyota 261230

This section contains 45 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota 261230. Key components include: SHELL SUB-ASSY, W/STEERING KNUCKLE, RH, ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT), NUT SUB-ASSY, SHOCK ABSORBER RING, SEAL, OIL(FOR SHOCK ABSORBER RING NUT), GASKET(FOR SHOCK ABSORBER RING NUT).
