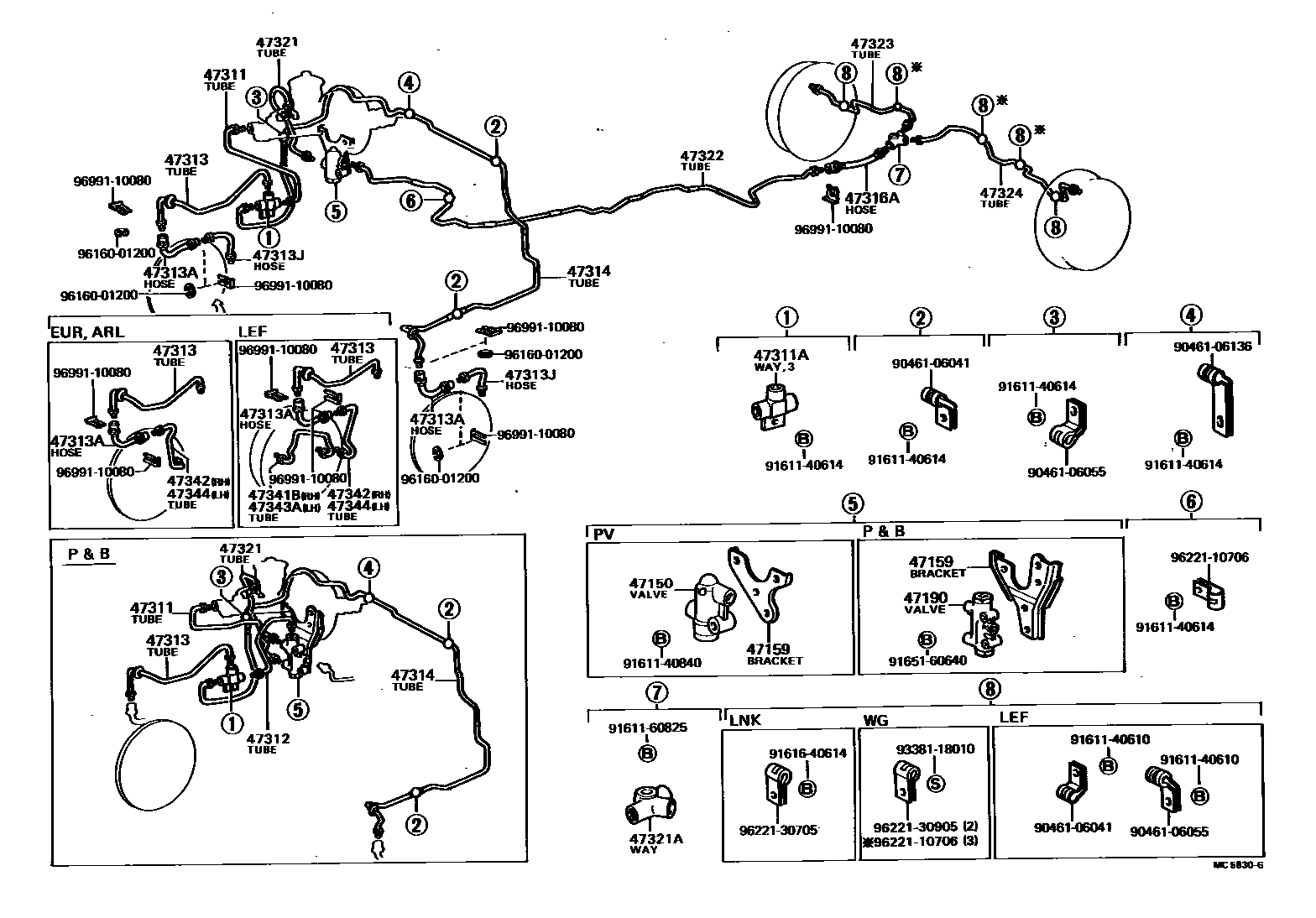

BRAKE TUBE & CLAMP

0001 1 0002 1

47150VALVE ASSY, PROPORTIONING

main47150-14010iRT130,132,TT13#..RHD..GEN197809-198112

main47150-20060iRT130,132,TT13#..LHD..(GEN,PHL)197809-198205

47159BRACKET, PROPORTIONING VALVE

main47159-20100iRT130,132,TT13#..RHD..GEN197809-198112

main47159-20120iRT132,TT132..RHD..(ARL,EUR)197809-198108

main47159-20121iRT133198108-198301

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-12010iRT133198108-198301

main47190-20020iTT132..LHD..EUR197809-198108

47311TUBE, FRONT BRAKE, NO.1

main47311-14140iRT132,TT13#..LHD197809-198205

main47311-20320iRT132,TT132..RHD..(ARL,EUR)197809-198108

main47311-20321iRT133198108-198301

main47311-20330iRT130,132,TT13#..RHD..GEN197809-198112

main47311-20340iRT130..LHD197809-198112

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10004iRT13#,TT13#197809-198301

47312TUBE, FRONT BRAKE, NO.2

main47312-20060iTT132..LHD..EUR197809-198008

main47312-20061iTT132..EUR198008-198108

main47312-20070iRT132,133..ARL;TT132..RHD..EUR197809-198301

47313TUBE, FRONT BRAKE, NO.3

main47313-20140iRT133;RT130,132,TT13#..RHD197809-198301

main47313-20150iTT132..LHD..EUR197809-198008

main47313-20151iTT132..EUR198008-198108

main47313-20160iRT13#,TT13#..LHD..(GEN,PHL)197809-198008

main47313-20161iRT130,132,TT13#..LHD..(GEN,PHL)198008-198205

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02385×2iRT130..SED..LEF; RT132..LEF197909-198008

FR DRUM

main90947-02390×2iRT13#,TT13#..GEN197905-197909

L=305

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02391×2iRT130..WG..PHL;RT130..LNK..PHL; RT132..HT,LB,WG;RT132..SED..LNK;RT130,TT132..GEN197809-197902

L=215

main96960-32154×2iRT132..HT,LB,WG;RT132..SED..LNK;RT130,TT132..GEN197902-197905

L=215

47314TUBE, FRONT BRAKE, NO.4

main47314-14022iRT130,132,TT13#..LHD197809-198205

main47314-20120iTT13#..RHD197809-198008

main47314-20121iRT133;TT13#..RHD198008-198301

main47314-20140iRT13#..RHD197809-198108

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02214iRT13#,TT132..WG197809-197902

main90947-02394iRT13#,TT132..HT,LB,SED197809-197902

main96910-33905iRT13#,TT13#..WG197902-198008

main96910-33955iRT130,132,TT13#..WG198008-198205

main96940-32855iRT133..GL;RT130,132,TT13#..HT,LB,SED197902-198205

47321TUBE, REAR BRAKE, NO.1

main47321-20010iRT130,132,TT13#..RHD..GEN197809-198112

main47321-20020iRT132,TT132..RHD..(ARL,EUR)197809-198108

main47321-20030iTT132..LHD..EUR197809-198008

main47321-20031iTT132..EUR198008-198108

main47321-20040iRT130,TT133..LHD; RT132,TT132..LHD..GEN197809-198008

main47321-20041iRT130,TT13#..LHD..(GEN,PHL)198008-198112

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10098iRT133..GL;RT130,132,TT13#198008-198301

main90413-10120iRT13#,TT13#..WG197809-198008

47322TUBE, REAR BRAKE, NO.2

main47322-20020iRT130..SED..RHD197809-197811

main47322-20021iRT130..SED..RHD197811-197908

main47322-20030iRT132..SED..LHD; TT13#..SED..LHD..GEN197809-198205

main47322-20040iRT132,TT132..RHD..(ARL,EUR)197809-198108

main47322-20041iRT133198108-198301

main47322-20050iRT130..SED..LHD197809-197811

main47322-20051iRT130..SED..LHD197811-198112

main47322-20070iTT132..LHD..EUR197809-198108

main47322-20080iRT132,TT13#..SED..RHD197809-198008

main47322-21010iRT130..WG..RHD197809-197811

main47322-21011iRT130..WG..RHD197811-197908

main47322-21020iRT132,TT13#..WG..LHD197809-198205

main47322-21030iRT130..WG..LHD197809-197811

main47322-21031iRT130..WG..LHD197811-198112

main47322-21040iTT13#..WG..RHD197809-198112

47323TUBE, REAR BRAKE, NO.3

main47323-14040iRT13#,TT13#..LNK197809-198106

main47323-14041iTT132..RHD..LNK;RT13#,TT133..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198106-198108

main47323-14042iTT133..LNK;TT132..RHD..LNK;RT130,133..DLX,GL;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198108-198112

main47323-20020iRT130,132,TT133..SED..LEF197809-198205

main47323-21020iRT130,132,TT13#..WG198008-198205

main47327-23010iRT13#,TT13#..WG197809-198008

47324TUBE, REAR BRAKE, NO.4

main47324-14050iRT13#,TT13#..LNK197809-198106

main47324-14051iTT132..RHD..LNK;RT13#,TT133..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198106-198108

main47324-14052iTT133..LNK;TT132..RHD..LNK;RT130,133..DLX,GL;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198108-198112

main47324-20010iRT130,132,TT133..SED..LEF197809-198205

main47324-21010iRT13#,TT13#..WG197809-198008

main47324-21011iRT130,132,TT13#..WG198008-198205

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47342-20010iRT132..LEF;RT130..SED..LEF..PHL197809-197909

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-20030iRT130..SED..LEF197909-198008

main47341-20040iRT132,TT132..ARL,EUR197809-198108

main47341-20050iRT132..LEF197909-198205

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47344-20010iRT132..LEF;RT130..SED..LEF..PHL197809-197909

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-20010iRT132..LEF;RT130..SED..LEF..PHL197809-197909

main47343-20020iRT133..GL198108-198112

main47343-20030iRT132..LEF197909-198205

9046106041

main90461-06041

9046106055

main90461-06055

9046106136

main90461-06136

9161140610

main91611-40610

9161140614

main91611-40614

9161140840

main91611-40840

9161160825

main91611-60825

9165160640

main91651-60640

9338118010

main93381-18010

9616001200

main96160-01200

9622110706

main96221-10706

9622130705

main96221-30705

9622130905

main96221-30905

9699110080

main96991-10080

34 parts on this diagram · 2 diagrams in section
