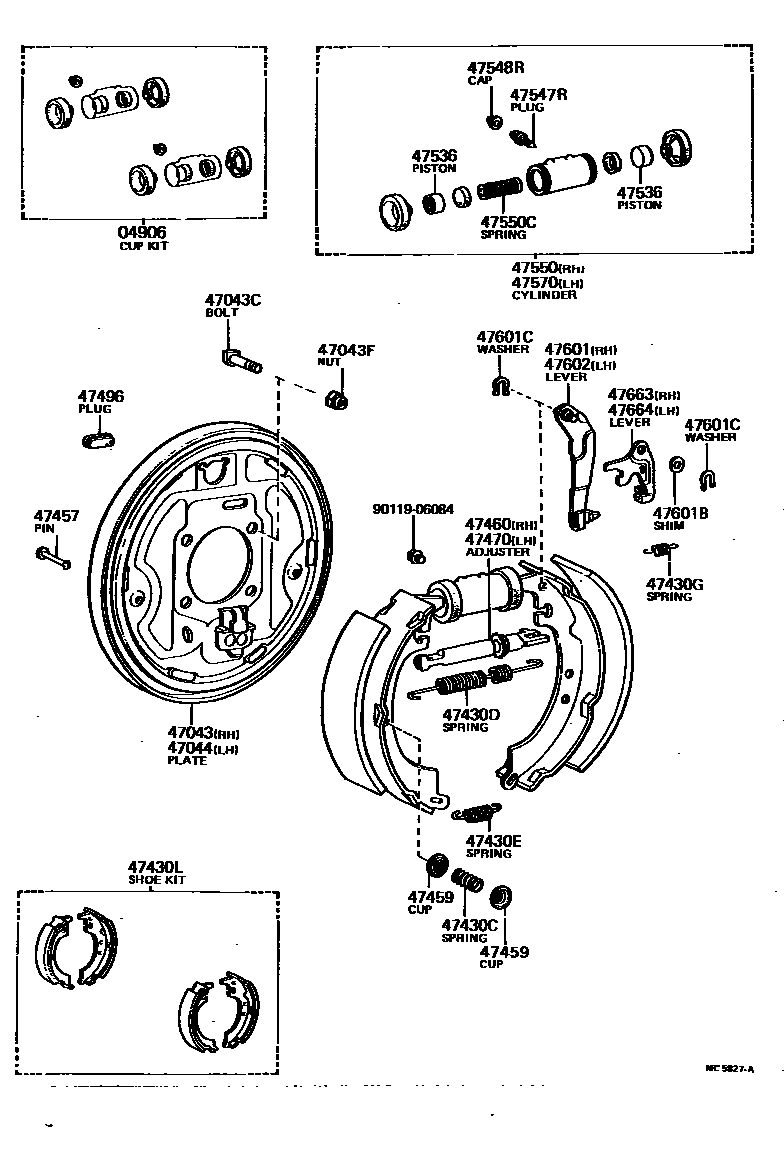

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12040iRT130,TT13#; RT132..GEN197809-198205

main04906-14020iRT132..ARL197908-198108

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20050iRT130..LNK..PHL;RT130,132,TT13#..ARL,EUR,GEN;RT130,133..(LB,WG)..(ARL,PHL)197905-198201

main47043-20060iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC,DRUM W/COOLING FIN

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iRT133..GL;RT130,132,TT13#197809-198301

*10-1.25PX37-15

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000×8iRT133..GL;RT130,132,TT13#197809-198301

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20050iRT13#,XT130198201-198301

main47044-20060iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC,DRUM W/COOLING FIN

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iRT13#,XT130198201-198301

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375×2iRT133..GL;RT130,132,TT13#197809-198201

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iRT133..GL;RT130,132,TT13#197809-198201

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iRT133..GL;RT130,132,TT13#197809-198201

47430LSHOE KIT, REAR BRAKE

main04495-20050iRT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN197809-197905

main04495-20060iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC,DRUM W/COOLING FIN

main04495-20080iRT132..LEF197905-197909

FR DRUM

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iRT130..LNK..PHL;RT130,132,TT13#..ARL,EUR,GEN;RT130,133..(LB,WG)..(ARL,PHL)197905-198201

main47447-30010×4iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC,DRUM W/COOLING FIN

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iRT133..GL;RT130,132,TT13#197809-198201

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iRT133..GL;RT130,132,TT13#197809-198201

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iRT133..GL;RT130,132,TT13#197809-198201

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iRT133..GL;RT130,132,TT13#197809-198201

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iRT133,XT130198201-198301

main47051-22040×4iRT130,132,TT13#..EUR,GEN,PHL197809-198205

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iRT133..GL;RT130,132,TT13#197809-198201

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iTT132..RHD;RT13#,TT133,XT130;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198102-198301

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19145iRT133,XT130198201-198301

main47550-29075iRT133..GL198108-198112

main47550-29115iRT130,132,TT13#..EUR,GEN,PHL197809-198205

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12020×2iRT130,132,TT13#..EUR,GEN,PHL197809-198205

main47509-20010×2iRT132..ARL197908-198108

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19145iRT133,XT130198201-198301

main47550-29075iRT133..GL198108-198112

main47550-29115iRT130,132,TT13#..EUR,GEN,PHL197809-198205

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iRT133..GL;RT130,132,TT13#197809-198201

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iRT133..GL;RT130,132,TT13#197809-198201

T=0.3,T=0.3

main90564-08151iRT133..GL;RT130,132,TT13#197809-198201

T=0.6,T=0.6

main90564-08152iRT13#,XT130198201-198301

T=0.9,T=0.9

main90564-08172iRT133..GL;RT130,132,TT13#197809-198201

T=0.2,T=0.2

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iRT133..GL;RT130,132,TT13#197809-198201

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iRT133..GL;RT130,132,TT13#197809-198201

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iRT133..GL;RT130,132,TT13#197809-198201

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iRT133..GL;RT130,132,TT13#197809-198201

9011906084

main90119-06084

28 parts on this diagram · 1 diagram in section
