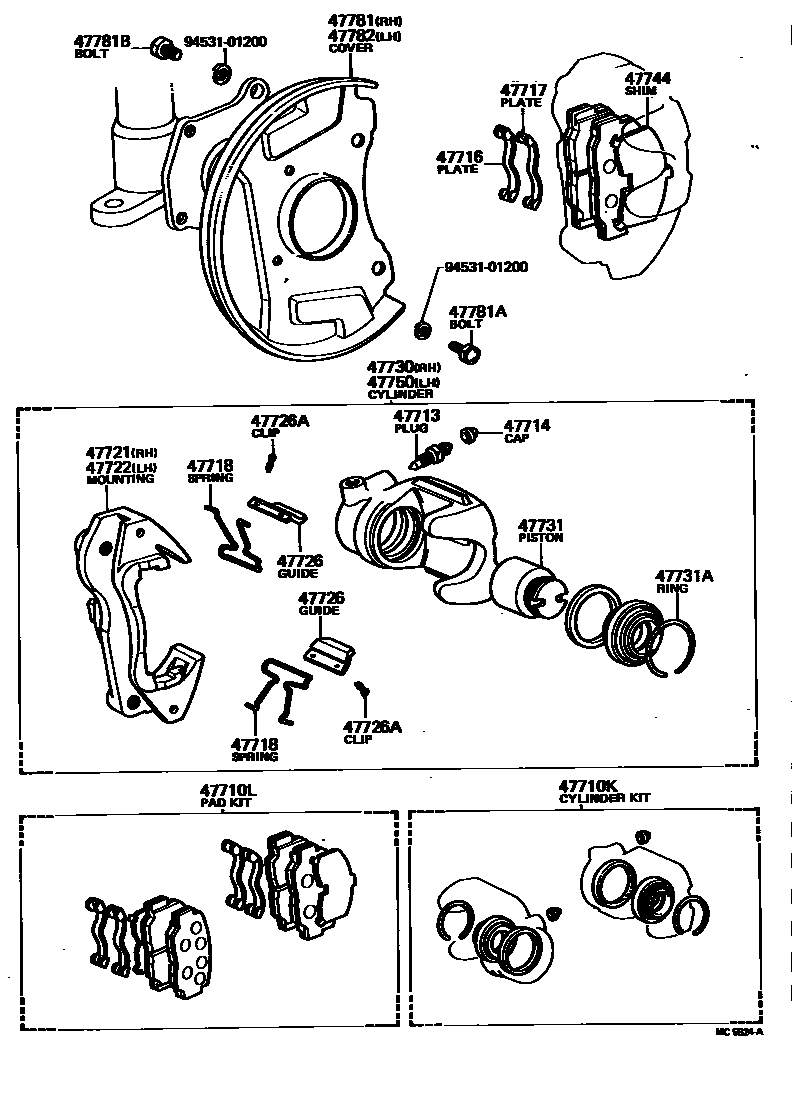

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0006 1 0007 1

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14010iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

main04479-20050iRT132..LEF197909-198205

sub04479-20051

main04479-30021iXT130198202-198301

sub04479-30022

47710LPAD KIT, DISC BRAKE, FRONT

main04491-20051iRT130198008-198112

sub04465-28250

main04491-20140iRT132..LEF197909-198205

main04491-22070iRT132,TT132..ARL,EUR197809-197910

main04491-22071iRT133..GL198108-198112

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020iRT130198008-198112

main47547-12030×2iRT132..LEF197909-198205

main47547-20030iXT130198202-198301

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iRT13#,TT13#197809-198102

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14010iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-14010iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-14010×4iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20050iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20050iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-14010×4iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12134×8iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20060iRT132,TT132..ARL,EUR197809-198011

main47730-20100iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

main47730-20120iRT132..LEF197909-198205

main47730-20130iRT132,TT132..ARL,EUR198011-198108

47731PISTON, FRONT DISC BRAKE

main47731-20030×2iRT130..WG;RT13#..(3FC,4F)..LNK197909-198008

main47731-20040×4iXT130198202-198301

main47731-20050×4iRT132..LEF197909-198205

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-53018×4iRT132..LEF197909-198205

main90522-54038×2iRT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL197905-197909

sub90522-58001

main90522-58026×4iRT133..GL198108-198112

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14011×2iTT13#..GEN197809-198008

main47744-22030×2iRT132..LEF197909-198205

main47744-30012×2iRT132,TT132..ARL,EUR197809-198108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20050iRT132,TT132..ARL,EUR197809-198011

main47750-20090iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

main47750-20110iRT132..LEF197909-198205

main47750-20120iXT130198202-198301

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20070iRT130198008-198112

main47781-20080iRT132,TT132..ARL,EUR197809-198108

main47781-20120iRT132..LEF197909-198205

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341×4iRT133,XT130198202-198301

47781BBOLT(FOR DUST COVER SETTING)

main90101-12018×4iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

sub90119-12068

main90101-12047×4iRT132,XT130..STD197909-198202

main90101-12067×4iRT130198105-198112

main90101-12379×4iXT130198202-198301

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20070iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-197905

main47782-20080iXT130198202-198301

main47782-20120iRT132..LEF197909-198205

9453101200

main94531-01200

21 parts on this diagram · 4 diagrams in section
