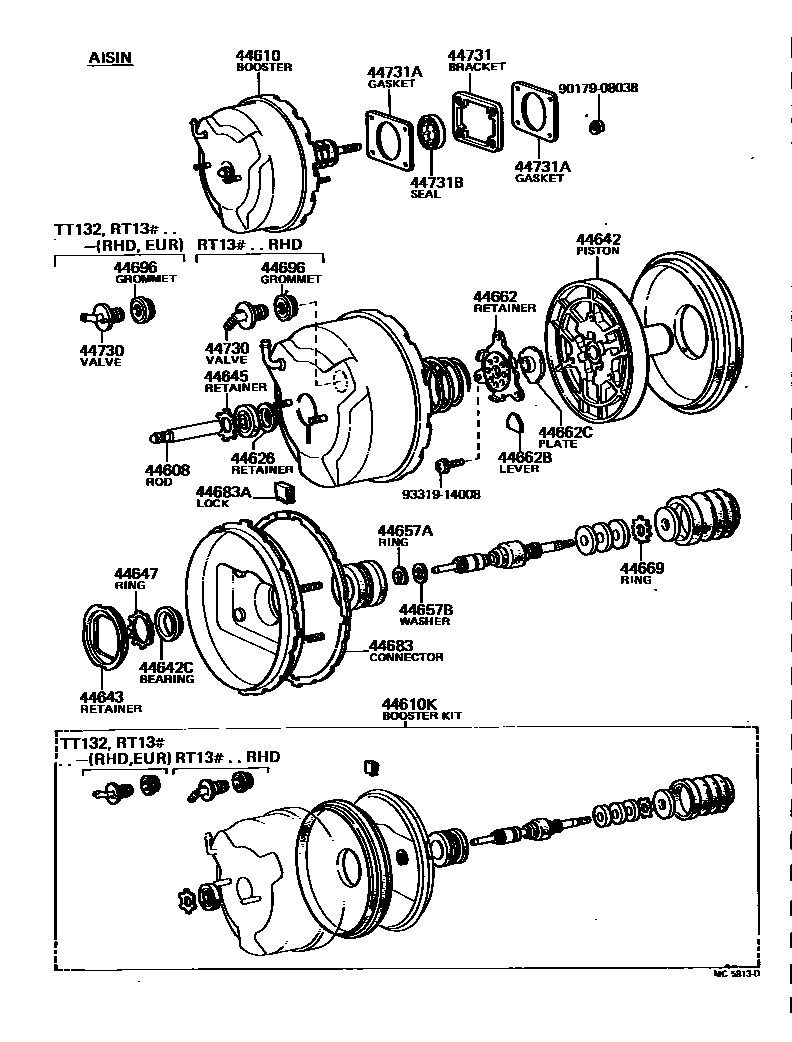

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0006 1 0007 1 0008 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-20460iTT13#..LHD..GEN197809-198112

AISIN

main44606-35100iRT132..LHD197908-198205

AISIN

main44608-22090iRT132..ARL197908-198108

JKC

44610BOOSTER ASSY, BRAKE

main44610-20470iRT13#..RHD..GEN197809-198008

main44610-20490iTT132..LHD..EUR197809-198108

main44610-20500iRT130,132..LHD197809-198205

main44610-20540iTT13#..RHD..GEN197809-198112

main44610-20550iTT132..RHD..EUR197809-198008

main44610-20560iRT133198108-198301

main44610-20590iTT13#..LHD..GEN197809-198112

main44610-20610iRT132..ARL197908-198108

44610KBOOSTER KIT, BRAKE

main04443-20210iTT13#..LHD..GEN197809-198112

main04443-20230iTT13#..RHD..GEN197809-198112

main04443-20250iRT133198108-198301

main04443-20270iRT130,132..LHD197809-198205

main04443-20280iTT132..RHD..EUR197809-198008

main04443-20290iRT132..ARL197908-198108

44626RETAINER, BOOSTER ROD CUP

main44626-60010iTT132..RHD..EUR197809-198008

44642PISTON, BRAKE BOOSTER

main44642-14170iRT130,132,TT13#..GEN,PHL197809-198205

AISIN

main44642-25080iTT132..LHD..EUR197809-198108

JKC

main44642-30030iTT132..RHD..EUR197809-198008

AISIN

44642CBEARING, BOOSTER PISTON

main44623-30150iTT132..RHD..EUR197809-198008

44643RETAINER, DIAPHRAGM

main44643-60010iTT132..RHD..EUR197809-198008

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iTT132..RHD..EUR197809-198008

AISIN

main44645-22020iTT132..LHD..EUR197809-198108

JKC

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iRT130,132,TT13#..GEN,PHL197809-198205

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iTT132..RHD..EUR197809-198008

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iRT130,132,TT13#..GEN,PHL197809-198205

44662RETAINER, REACTION, NO.1

main44662-20460iTT132..RHD..EUR197809-198008

main44662-35100iRT130,132,TT13#..GEN,PHL197809-198205

44662BLEVER, REACTION

main44661-35100iRT130,132,TT13#..GEN,PHL197809-198205

44662CPLATE, REACTION, NO.1

main44607-20460iTT132..RHD..EUR197809-198008

main44607-20470iRT130,132,TT13#..GEN,PHL197809-198205

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iTT132..RHD..EUR197809-198008

44683CONNECTOR, BOOSTER BODY

main44682-20150iRT130,132,TT13#..GEN,PHL197809-198205

44683ALOCK, CONNECTOR

main44683-20100iRT130,132,TT13#..GEN,PHL197809-198205

44696GROMMET, CHECK VALVE

main90480-24439iRT130;TT13#..LHD..GEN197809-198112

main90480-24517iTT132..LHD..EUR197809-198108

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iTT13#..RHD197809-198112

main44730-20010iXT130197908-198301

main44730-20030iTT13#..LHD..GEN197809-198112

main44730-20040iRT132..ARL197908-198108

main44730-20060iRT130,132..LHD197809-198205

main44730-30010iRT133198108-198301

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-20080iRT133;RT130,132,TT13#..RHD197809-198301

main44731-20090iRT130,132,TT13#..LHD197809-198205

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-20030×2iRT13#,TT13#197809-198301

44731BSEAL, BRAKE BOOSTER BRACKET

main90304-54001iRT133;RT130,132,TT13#..RHD197809-198301

main90304-54002iRT130,132,TT13#..LHD197809-198205

9017908038

main90179-08038

9331914008

main93319-14008

24 parts on this diagram · 6 diagrams in section
