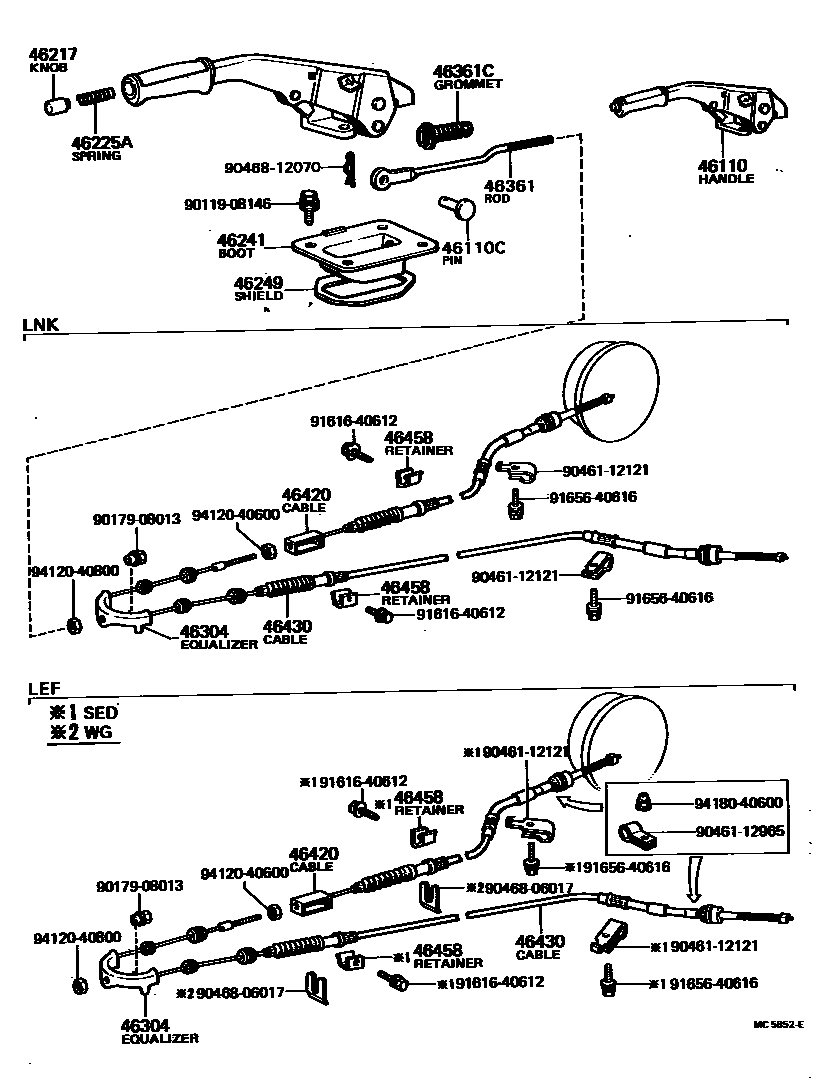

PARKING BRAKE & CABLE

0001 1 0003 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46120-20060iTT13#..LHD..STD198008-198112

STICK TYPE

main46201-20020-01iRT13#,TT13#197809-198008

BLACK,BLACK,TRIM2#

main46201-20020-02iRT13#,TT13#197809-198008

DARK WINE,RED/MAROON,TRIM3#

main46201-20020-05iRT13#,TT13#197809-198008

BEIGE,BEIGE,TRIM4#

main46201-20021-01iTT132..RHD;RT13#,TT133,XT130..DLX,STD;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..(DLX,STD)198102-198301

W/2-SPOKE STEERING,BLACK,BLACK,TRIM2#

main46201-20021-02iTT132..RHD;RT13#,TT133,XT130..DLX,STD;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..(DLX,STD)198102-198301

W/2-SPOKE STEERING,DARK WINE,RED/MAROON,TRIM3#

main46201-20021-06iTT132..RHD;RT13#,TT133,XT130..DLX,STD;TT132..(HT,LB)..LHD..5F..GEN;TT132..LHD..(3FC,4F)..(DLX,STD)198102-198301

W/2-SPOKE STEERING,LIGHT BROWN,BROWN,TRIM4#

main46201-20100-01iRT13#,TT13#..DLX,GL198008-198112

W/4-SPOKE STEERING,BLACK,BLACK,TRIM2#

main46201-20100-02iRT13#,TT13#..DLX,GL198008-198112

W/4-SPOKE STEERING,DARK WINE,RED/MAROON,TRIM3#

main46201-20100-06iRT13#,TT13#..DLX,GL198008-198112

W/4-SPOKE STEERING,LIGHT BROWN,BROWN,TRIM4#

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main90240-08037iTT132..RHD;RT13#,TT133,XT130;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198102-198301

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iRT13#,TT13#,XT130197809-198301

BLACK,BLACK,TRIM2#

main46217-10020-02iRT13#,TT13#,XT130197809-198301

DARK WINE,RED/MAROON,TRIM3#

main46217-10020-06iRT13#,TT13#,XT130197809-198301

LIGHT BROWN,BROWN,TRIM4#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iRT13#,TT13#197809-198102

46241BOOT, PARKING BRAKE LEVER

main46241-14020iRT13#,TT132197809-197908

main46241-14021iRT13#,TT13#197908-198102

46249SHIELD, PARKING BRAKE HOLE

main46249-22020iRT13#,TT13#197809-198102

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-14010iRT13#,TT13#197809-198301

46361ROD, PARKING BRAKE PULL

main46361-20040iRT13#,TT13#197809-198008

main46361-20050iRT132,133,TT13#..DLX,GL198008-198112

W/4-SPOKE STEERING WHEEL

46361CGROMMET(FOR PARKING BRAKE PULL ROD)

main90480-01057iRT13#,TT13#197809-198102

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14070iRT133,XT130..LNK198201-198301

main46420-20080iRT13#..SED..LEF197809-197901

main46420-20081iRT130,132,TT133..SED..LEF197901-198205

main46420-21050iRT13#,TT132..WG197809-197901

main46420-21051iRT130,132,TT13#..WG197901-198205

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20100iRT13#..SED..LEF197809-197901

main46430-20101iRT130,132,TT133..SED..LEF197901-198205

main46430-20120iRT13#,TT132..LNK197809-197901

main46430-20121iRT133,XT130..LNK198201-198301

main46430-21070iRT13#,TT132..WG197809-197901

main46430-21071iRT130,132,TT13#..WG197901-198205

46458RETAINER, CABLE

main46458-20020×2iRT133..GL;RT130,132,TT13#..HT,LB,SED197809-198301

9011908146

main90119-08146

9017908013

main90179-08013

9046112121

main90461-12121

9046112965

main90461-12965

9046806017

main90468-06017

9046812070

main90468-12070

9161640612

main91616-40612

9165640616

main91656-40616

9412040600

main94120-40600

9412040800

main94120-40800

9418040600

main94180-40600

23 parts on this diagram · 2 diagrams in section
