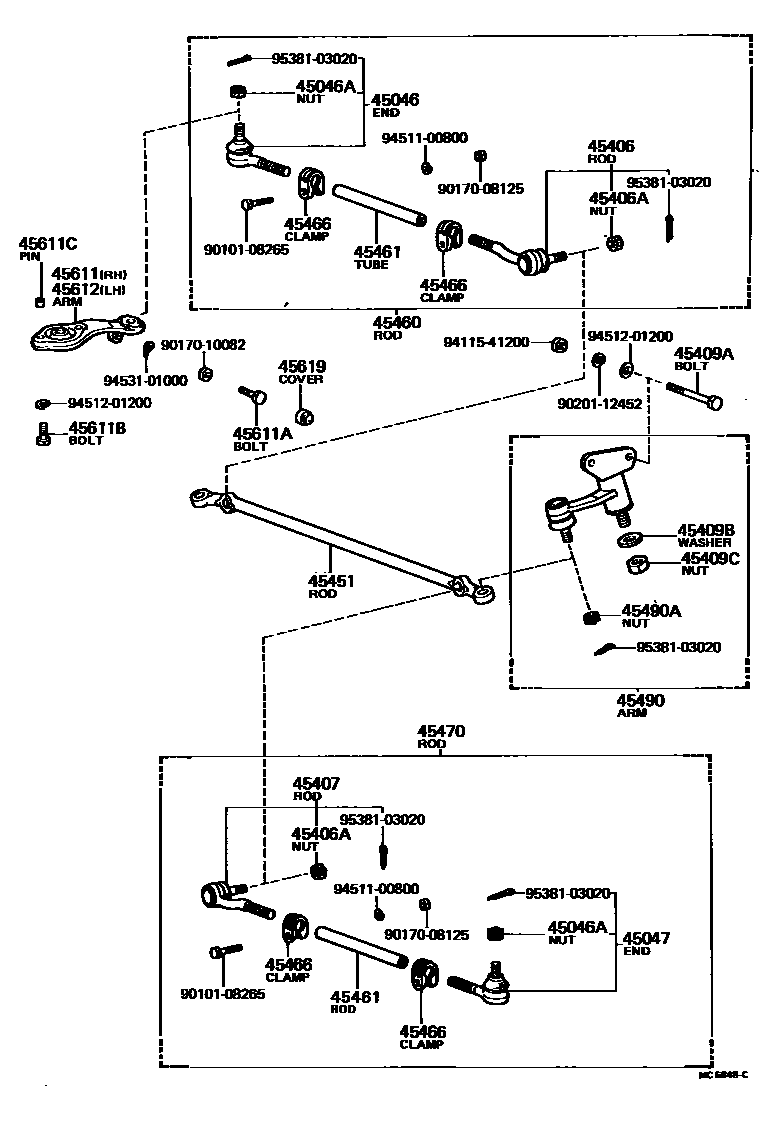

FRONT STEERING GEAR & LINK

0001 1 0003 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29075iRT13#,TT13#,XT130197809-198301

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iRT13#,TT13#,XT130197809-198301

45047END SUB-ASSY, TIE ROD, LH

main45046-29075iRT13#,TT13#,XT130197809-198301

45406ROD SUB-ASSY, TIE, RH

main45406-19016iRT13#,TT13#,XT130197809-198301

45406ANUT, CASTLE(FOR TIE ROD)

main90171-12028×2iRT13#,TT13#,XT130197809-198301

45407ROD SUB-ASSY, TIE, LH

main45406-19016iRT13#,TT13#,XT130197809-198301

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90101-12033×2iRT13#,TT13#,XT130197809-198301

45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

main90201-14519iRT133;RT130,132,TT13#,XT130..RHD197809-198301

45409CNUT(FOR IDLER ARM SUPPORT)

main94182-11400iRT133;RT130,132,TT13#,XT130..RHD197809-198301

45451ROD, STEERING RELAY

main45451-14021iRT13#,TT13#,XT130..HT,LB,SED197809-198301

main45451-15020iRT133..GL198108-198112

W/PS

45460ROD ASSY, TIE, RH

main45460-19056iRT13#,TT13#,XT130197811-198301

main45460-29145iRT13#,TT132197809-197811

45461ROD, STEERING TIE

main45465-14010×2iRT13#,TT13#,XT130197809-198301

45466CLAMP, TIE ROD END

main45466-22010×4iRT13#,TT13#,XT130197809-198301

45470ROD ASSY, TIE, LH

main45460-19056iRT13#,TT13#,XT130197811-198301

main45460-29145iRT13#,TT132197809-197811

45490ARM ASSY, STEERING IDLER

main45490-29275iRT13#,TT13#,XT130..RHD197809-198101

main45490-29285iRT130,TT133..SED..RHD..LEF197809-198008

TAXI SPEC

main45490-29295iRT130..WG..PHL;RT130..LNK..PHL;RT132..LHD..LNK;RT130,TT13#..LHD..(EUR,GEN)197809-198008

main45490-29305iRT132..GEN; TT133..SED..LHD..LEF198008-198108

TAXI SPEC

main45490-29385iXT130198101-198301

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iRT13#,TT13#,XT130197809-198301

45611ARM, STEERING KNUCKLE, RH

main45611-14011iRT13#,TT13#,XT130198008-198301

main45611-20051iRT132..LEF;RT130..SED..LEF..PHL197809-198008

45611ABOLT, KNUCKLE STOPPER

main90106-10002×2iRT13#,TT13#,XT130197809-198301

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-12295×2iRT13#,TT13#,XT130197809-198301

45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90253-15016×4iRT13#,TT13#,XT130197809-198301

45612ARM, STEERING KNUCKLE, LH

main45612-14011iRT13#,TT13#,XT130198008-198301

main45612-20051iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC

45619COVER, KNUCKLE STOPPER

main45619-14020×2iRT13#,TT13#,XT130197809-198008

9010108265

main90101-08265

9017008125

main90170-08125

9017010082

main90170-10082

9020112452

main90201-12452

9411541200

main94115-41200

9451100800

main94511-00800

9451201200

main94512-01200

9453101000

main94531-01000

9538103020

main95381-03020

31 parts on this diagram · 2 diagrams in section
