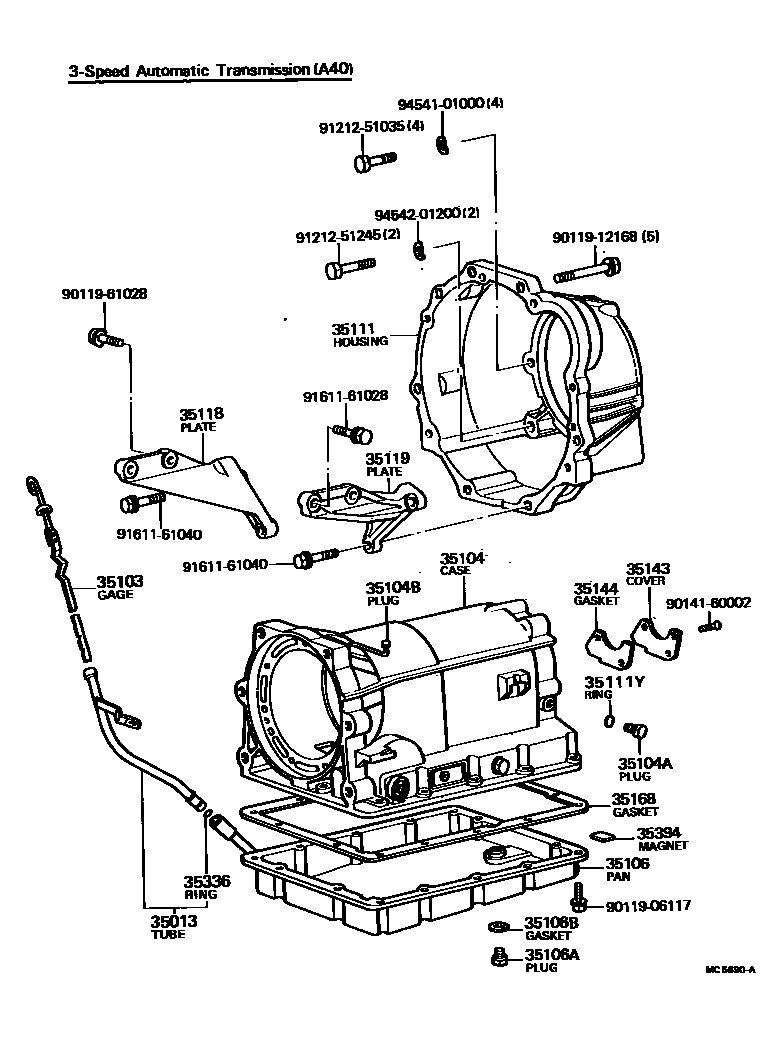

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-14071iTT132..3FC197809-198009

main35013-14091iRT132..3FC198003-198108

main35013-20110iTT132..3FC198009-198112

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-14022iRT132..3FC198003-198108

main35103-20040iTT132..3FC197809-198112

main35103-20080iRT133..4FC198108-198112

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22022iTT132..3FC197809-197907

main35104-22023iRT132,TT132..3FC197907-198012

main35104-22024iRT132,TT132..3FC198012-198106

main35104-22025iRT132,TT132..3FC198106-198112

main35104-30082iRT133..4FC198108-198112

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iRT132,133,TT132..ATM198106-198112

main90341-08079×2iRT132,TT132..3FC197809-198106

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03061iRT132,TT132..3FC197809-198112

main90930-03069iRT133..4FC198108-198112

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22020iRT132,TT132..3FC197809-198112

main35106-22031iRT133..4FC198108-198112

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iRT132,133,TT132..ATM197811-198112

L=8.3-9.0

main90341-10078iTT132..3FC197809-197811

L=8.0

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iRT132,133,TT132..ATM197811-198112

T=2.0,OD=16.7

main90202-10110iTT132..3FC197809-197811

T=0.8,OD=22.0

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-12020iTT132..3FC197809-198008

main35111-14050iTT132..3FC198008-198112

main35111-20070iRT133..4FC198108-198112

main35111-22031iRT132..3FC198003-198108

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iRT132,133,TT132..ATM197809-198112

35118PLATE, STIFENER, RH (ATM)

main33118-14010iTT132..3FC197809-198112

main33118-22030iRT132..3FC198003-198108

35119PLATE, STIFENER, LH (ATM)

main33119-14040iTT132..3FC197809-198112

main33119-22021iRT132..3FC198003-198108

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iRT132,133,TT132..ATM197809-198112

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iRT132,133,TT132..ATM197809-198112

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22010iRT132,TT132..3FC197809-198008

main35168-22011iRT132,133,TT132..ATM198008-198112

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iRT132,133,TT132..ATM197809-198112

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iRT132,133,TT132..ATM197809-198112

9011906117

main90119-06117

9011912168

main90119-12168

9011961028

main90119-61028

9014160002

main90141-60002

9121251035

main91212-51035

9121251245

main91212-51245

9161161028

main91611-61028

9161161040

main91611-61040

9454101000

main94541-01000

9454201200

main94542-01200

27 parts on this diagram · 3 diagrams in section
