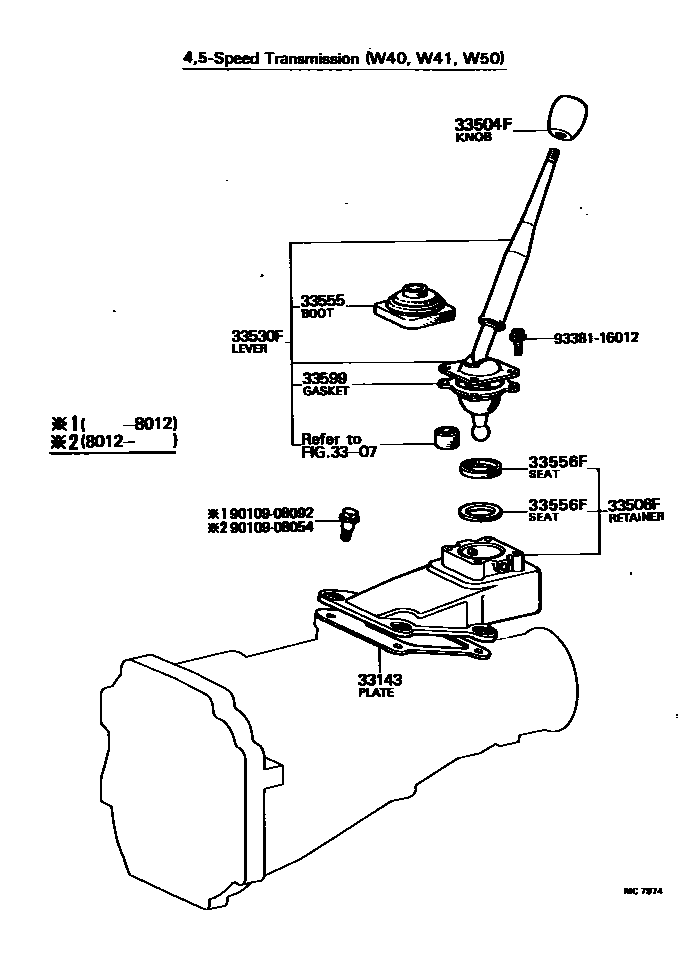

SHIFT LEVER & RETAINER

0001 1 0004 1 0006 1 0008 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-20030iRT13#,TT132..MTM..(ARL,GEN,PHL)198008-198012

main33143-20031iRT13#..MTM;TT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN198012-198108

main33143-22020iTT132..MTM..EUR198008-198108

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-01iTT132..5F..GL197809-198008

URETHANE,BLACK,BLACK,TRIM2#

main33504-20052-02iTT13#..5F198008-198112

URETHANE,DARK WINE,RED/MAROON,TRIM3#

main33504-20052-06iTT132..5F..GL197809-198008

URETHANE,LIGHT BROWN,BROWN,TRIM4#

main33504-20062-01iTT132..4F..GL; TT132..LHD..DLX..LEF;TT132..(SED,WG)..RHD..4F..DLX197809-198008

URETHANE,BLACK,BLACK,TRIM2#

main33504-20062-02iTT132..4F..GL; TT132..LHD..DLX..LEF;TT132..(SED,WG)..RHD..4F..DLX197809-198008

URETHANE,DARK WINE,RED/MAROON,TRIM3#

main33504-20062-05iTT132..4F..GL; TT132..LHD..DLX..LEF;TT132..(SED,WG)..RHD..4F..DLX197809-198008

URETHANE,BEIGE,BEIGE,TRIM4#

main33504-20062-06iRT130,TT13#..4F..DLX198008-198112

URETHANE,LIGHT BROWN,BROWN,TRIM4#

main33504-22100-01iRT13#,TT13#..4F..(DLX,STD)197809-198010

BLACK,BLACK,TRIM2#

main33504-22100-02iRT13#,TT13#..4F..(DLX,STD)197809-198010

DARK WINE,RED/MAROON,TRIM3#

main33504-22100-05iRT13#,TT13#..4F..(DLX,STD)197809-198010

BEIGE,BEIGE,TRIM4#

main33504-22101-01iRT130,132,TT13#..4F198010-198205

BLACK,BLACK,TRIM2#

main33504-22101-02iRT130,132,TT13#..4F198010-198205

DARK WINE,RED/MAROON,TRIM3#

main33504-22101-05iRT130,132,TT13#..4F198010-198205

BEIGE,BEIGE,TRIM4#

main33504-22110-01iTT13#..5F..GEN198008-198010

BLACK,BLACK,TRIM2#

main33504-22110-02iTT13#..5F..GEN198008-198010

DARK WINE,RED/MAROON,TRIM3#

main33504-22110-05iTT13#..5F..GEN198008-198010

BEIGE,BEIGE,TRIM4#

main33504-22111-01iTT133..5F;TT132..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN198010-198112

BLACK,BLACK,TRIM2#

main33504-22111-02iTT133..5F;TT132..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN198010-198112

DARK WINE,RED/MAROON,TRIM3#

main33504-22111-05iTT133..5F;TT132..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN198010-198112

BEIGE,BEIGE,TRIM4#

main33542-12090iXT130..3FC197908-198008

main33542-30110-01iRT132,133,TT132..ATM198008-198112

BLACK,BLACK,TRIM2#

main33542-30110-02iRT132,133,TT132..ATM198008-198112

DARK WINE,RED/MAROON,TRIM3#

main33542-30110-16iRT132,133,TT132..ATM198008-198112

LIGHT BROWN,BROWN,TRIM4#

main33542-30120-01iRT132,TT132..3FC197809-198008

BLACK,BLACK,TRIM2#

main33542-30120-02iRT132,TT132..3FC197809-198008

DARK WINE,RED/MAROON,TRIM3#

main33542-30120-05iRT132,TT132..3FC197809-198008

BEIGE,BEIGE,TRIM4#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-14021iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F198108-198112

main33570-21010iRT13#,TT132..MTM..(ARL,GEN,PHL)198008-198012

main33570-21011iRT130,132198108-198205

main33570-22070iRT133..5F198108-198301

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-14050iRT132,TT132..RHD..3FC197809-198008

main33503-14060iTT132..LHD..3FC197809-198008

main33503-14091iRT132,133,TT132..RHD..ATM198008-198112

main33503-14101iTT132..LHD..3FC198008-198112

main33530-14220iTT13#..RHD198108-198112

main33530-14230iTT133..LHD;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198108-198112

main33530-14331iRT133..5F198108-198301

main33530-20141iRT13#,TT132..LHD..4F197809-198008

main33530-20162iTT132..LHD..5F197809-198008

main33530-20163iTT132..LHD..5F..GEN198008-198012

main33530-20190iTT132..RHD..4F198008-198012

main33530-20210iRT132,TT132..RHD..5F197809-198008

main33530-20211iRT132,TT132..RHD..5F198008-198012

main33530-20220iTT132..MTM..EUR198008-198011

main33530-20221iTT132..MTM..EUR198011-198108

33555BOOT, SHIFT LEVER

main33555-12061iXT130..3FC197908-198008

main33555-12090iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F198108-198112

main33555-20060iTT133197908-198106

main33555-22030iRT132,133,TT132..ATM197809-198112

main33555-22050iTT132..MTM..EUR198008-198108

main33555-31011iRT13#,TT132..MTM197809-198008

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-14010iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F198108-198112

T=13.5

main33556-14020iTT133197908-198108

T=3.0

main33556-20010iRT13#,TT132..MTM197809-198008

T=3.0

main33556-22010iRT13#,TT132..MTM..(ARL,GEN,PHL)198008-198108

T=6.5

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iRT133..5F198108-198301

main33584-31020iRT13#,TT132..MTM..(ARL,GEN,PHL)198008-198108

9010908054

main90109-08054

9010908092

main90109-08092

9338116012

main93381-16012

11 parts on this diagram · 4 diagrams in section
