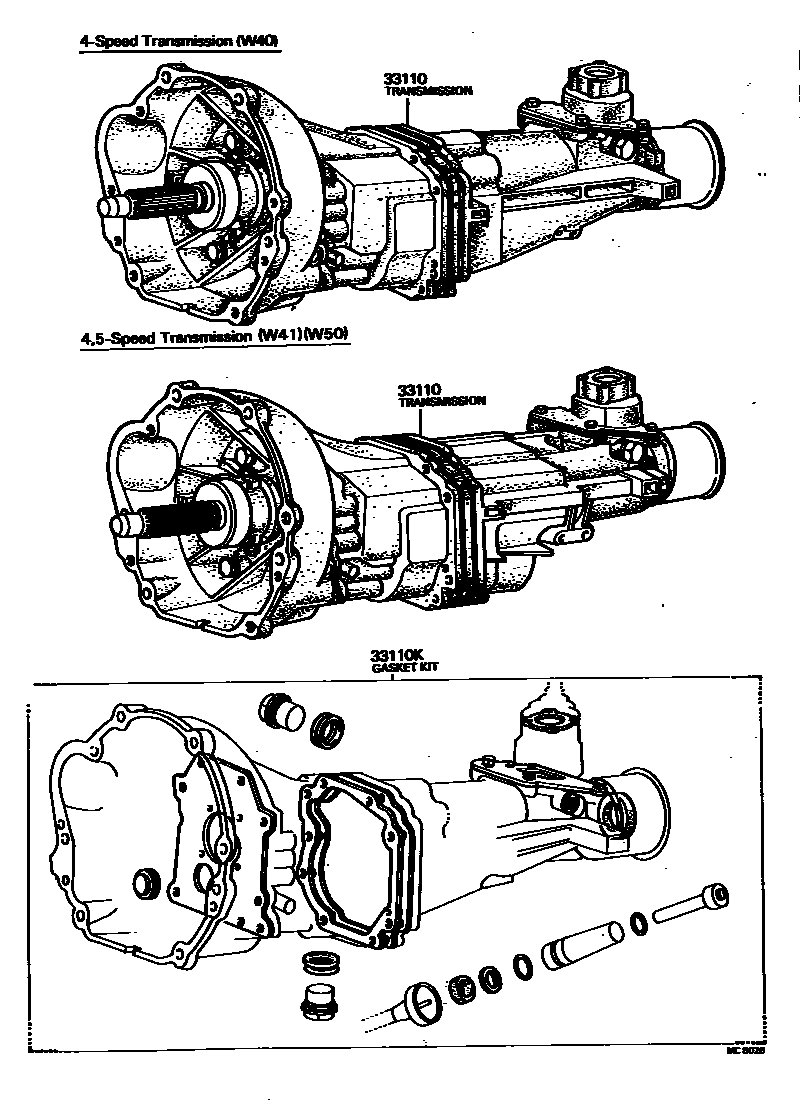

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0004 1 0006 1

33110TRANSMISSION ASSY, MANUAL

main33030-14540iTT13#..4F198108-198112

main33030-14550iTT133..5F198106-198108

main33030-20032iRT132..(HT,LB,SED)..GEN197908-198108

main33030-20040iRT130..SED..GEN197809-197908

DIFF R=3.727

main33030-20070iRT130..GEN197809-197908

DIFF R=4.100 & 4.300

main33030-20102iRT132..WG197809-198108

SMG=6

main33030-20441iTT133..4F197908-198008

main33030-20541iTT133..5F197908-198008

main33030-20580iTT132..4F..LNK197809-198008

main33030-20600iTT132..5F197809-198008

main33030-20610iTT132..4F..LEF197809-198008

main33030-20620iRT132..5F197908-198108

SMG=6

main33030-20710iTT132..DLX..EUR198008-198108

main33030-20720iTT132..5F..EUR198008-198108

main33030-20740iTT132..4F..LNK..GEN198008-198108

main33030-20750iTT132..LEF198008-198108

main33030-20760iTT132..5F..GEN198008-198108

main33030-20770iTT133..4F198008-198106

main33030-20790iTT133..5F198008-198106

main33030-20820iRT133..5F198108-198301

main33030-20850iRT130..LNK198108-198112

DIFF R=3.727

main33030-20860iRT130..LEF198108-198112

main33030-20870iRT132..SED198108-198205

main33030-20880iRT132..WG198108-198205

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-14030iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F198108-198112

main04331-20030iTT133197908-198106

main04331-20050iTT132..MTM..EUR198008-198108

main04331-22021iRT13#,TT132..4F..(GEN,PHL)198008-198108

main04331-22030iRT132,TT132..5F..(ARL,GEN)198008-198108

2 parts on this diagram · 3 diagrams in section
