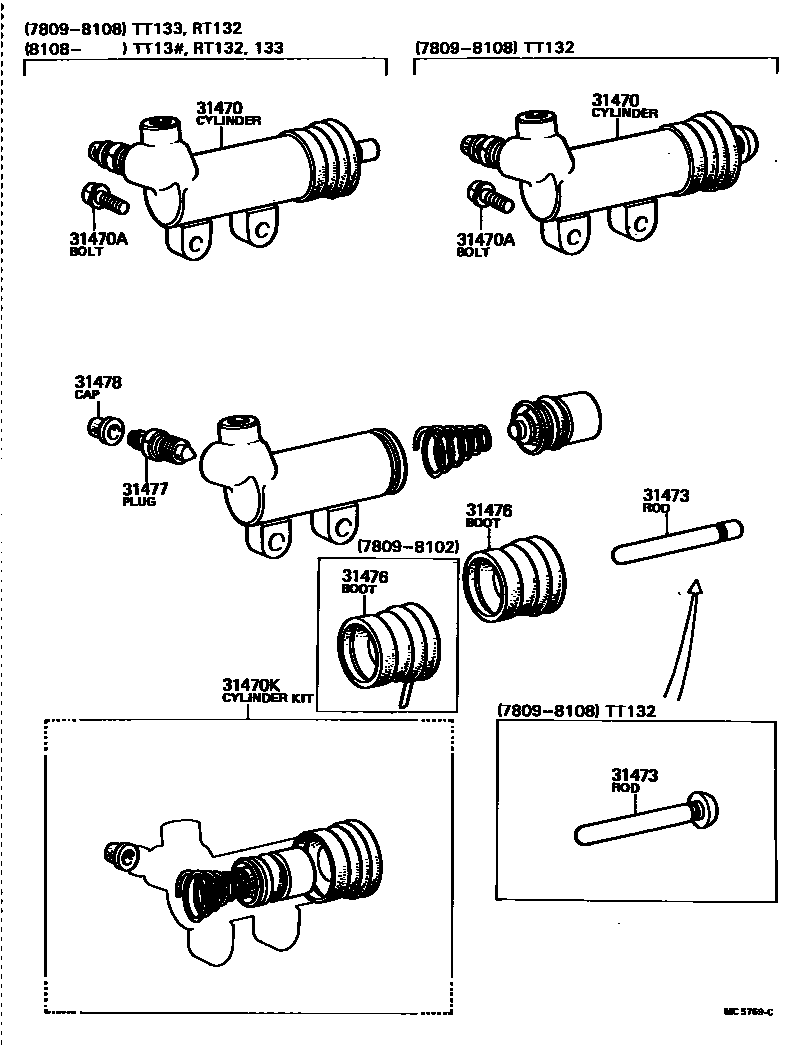

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14020iRT132;TT132..MTM..EUR198009-198102

main31470-14021iRT132,133..MTM198108-198301

main31470-20140iRT130197809-198102

main31470-20141iRT130198102-198112

main31470-20150iRT132..MTM197809-198008

main31470-20151iTT133198102-198108

main31470-22050iTT132..MTM197809-198008

main31470-22051iTT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN198102-198108

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825×2iRT13#,TT13#..MTM197809-198301

*8-1.25PX25-25

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iTT132..LHD..4F;TT132..RHD..MTM;RT13#,TT133..MTM;TT132..(HT,LB)..LHD..5F198102-198301

main04313-30100iRT13#,TT13#..MTM197809-198102

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iRT132;TT132..MTM..EUR198009-198102

main31473-20030iTT133198009-198102

main31473-20031iTT133198102-198108

main31473-22010iRT132,133..MTM198108-198301

main31473-30040iTT132..MTM197809-198008

main31473-30041iTT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN198102-198108

main31473-30050iRT130197809-198102

main31473-30051iRT130198102-198112

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iTT132..LHD..4F;TT132..RHD..MTM;RT13#,TT133..MTM;TT132..(HT,LB)..LHD..5F198102-198301

main31476-30040iRT13#,TT13#..MTM197809-198102

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRT13#,TT13#..MTM197809-198301

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRT13#,TT13#..MTM197809-198301

7 parts on this diagram · 2 diagrams in section
