MANIFOLD

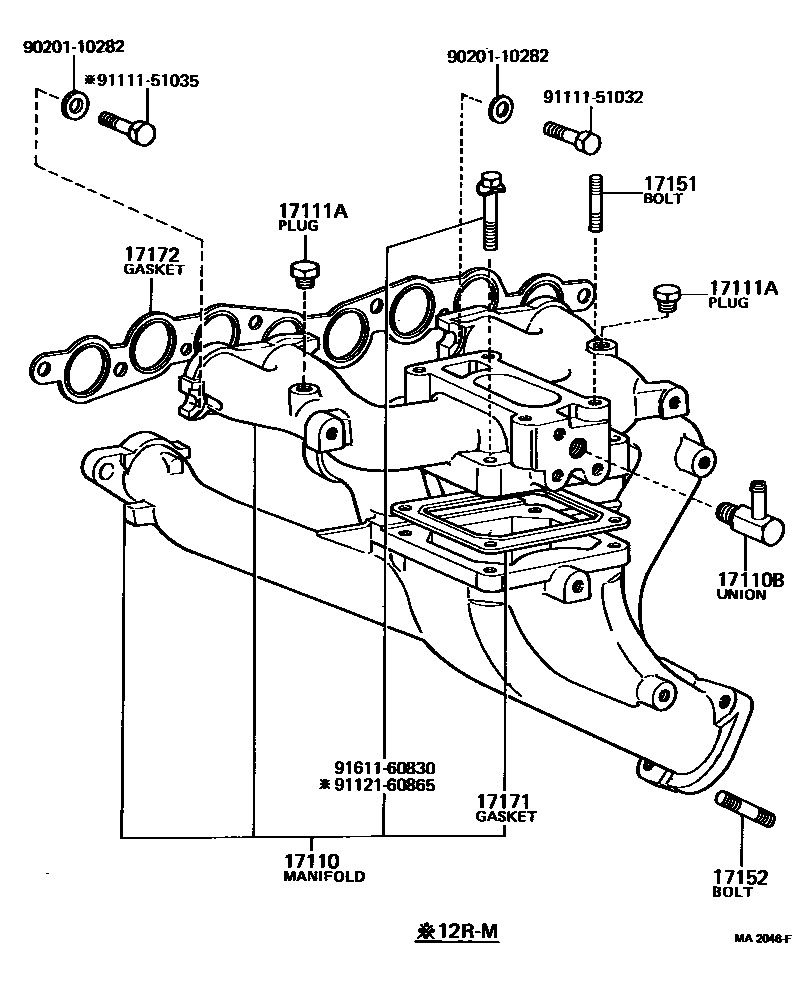

Parts diagram

17110MANIFOLD ASSY

main17110-31090i197809-197908

main17110-34051i197809-197901

main17110-34052i197901-197908

main17110-34053i197908-198012

main17110-34054i198012-198205

main17110-34101i197908-198008

main17110-34102i198008-198012

main17110-34103i198012-198108

17110BUNION(FOR VENTILATION HOSE TO MANIFOLD)

main90407-09001i197809-198112

main90407-09002i197809-198112

main90407-09003i197908-198205

main90407-10040i197809-197908

17111MANIFOLD, INTAKE

main17111-26051i197809-198112

main17111-35012i198108-198207

main17111-35040i198207-198301

17111APLUG, NO.1

main90344-51001×2i197809-197908

main90344-51010i198002-198003

main90344-51014i198003-198205

main90345-51001i198208-198301

main90345-51025×2i197809-198208

main90345-53007i197809-198112

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08023×4i197809-198112

L=41,S=14&14

main90116-08051×2i198108-198301

L=40,S=11&11

main90116-08052×4i197809-198205

L=53,S=14&14

main90116-08320×4i197809-198112

L=43,S=15&15

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017×3i198008-198205

L=41,S=14&21

main90116-10042×2i197809-198112

main90116-10056×3i198008-198112

L=44,S=14&21

main90116-10058×3i198108-198301

L=46.5,S=14&20

17171GASKET, INTAKE TO EXHAUST MANIFOLD

main17171-31020i197809-197908

main17171-34020i197809-197901

main17171-34030×2i197901-198205

main17171-44010i197809-198112

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-31020i197809-198112

main17172-31021i197809-197908

main17172-32020i198101-198301

main17172-34020i197809-198205

9020110282

main90201-10282

9111151032

main91111-51032

9111151035

main91111-51035

9112160865

main91121-60865

9161160830

main91611-60830

13 parts on this diagram · 6 diagrams in section
