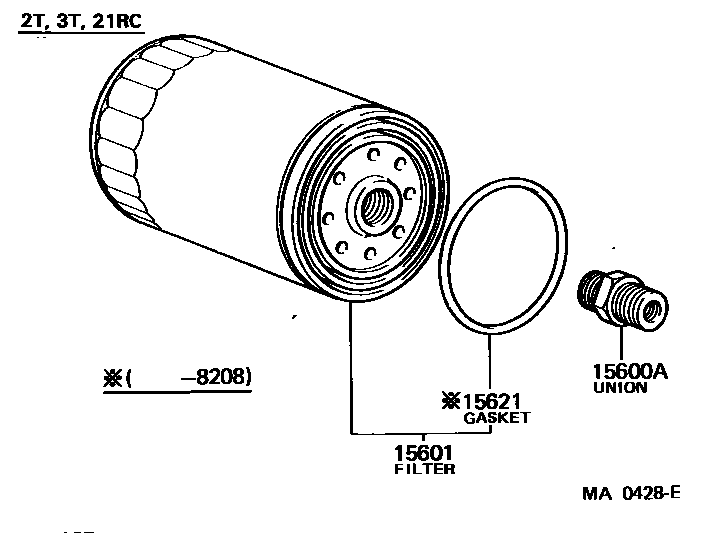

OIL FILTER

0001 1 0002 1 0003 1

15600AUNION(FOR OIL FILTER)

main90404-20173i21RC..RT133; 2T,3T..TT13#197809-198301

15601FILTER SUB-ASSY, OIL

main15600-25010i2T,3T..TT13#197809-198112

main15601-33010i18R#..RT132197809-198105

main15601-33020i12R#..RT130197809-198112

main15601-44011i21RC..RT133198108-198301

15621GASKET, OIL FILTER BODY

main15621-22010i12R#,18R#..RT130,132197809-198205

main15621-41010i21RC..RT133; 2T,3T..TT13#197809-198208

3 parts on this diagram · 3 diagrams in section
