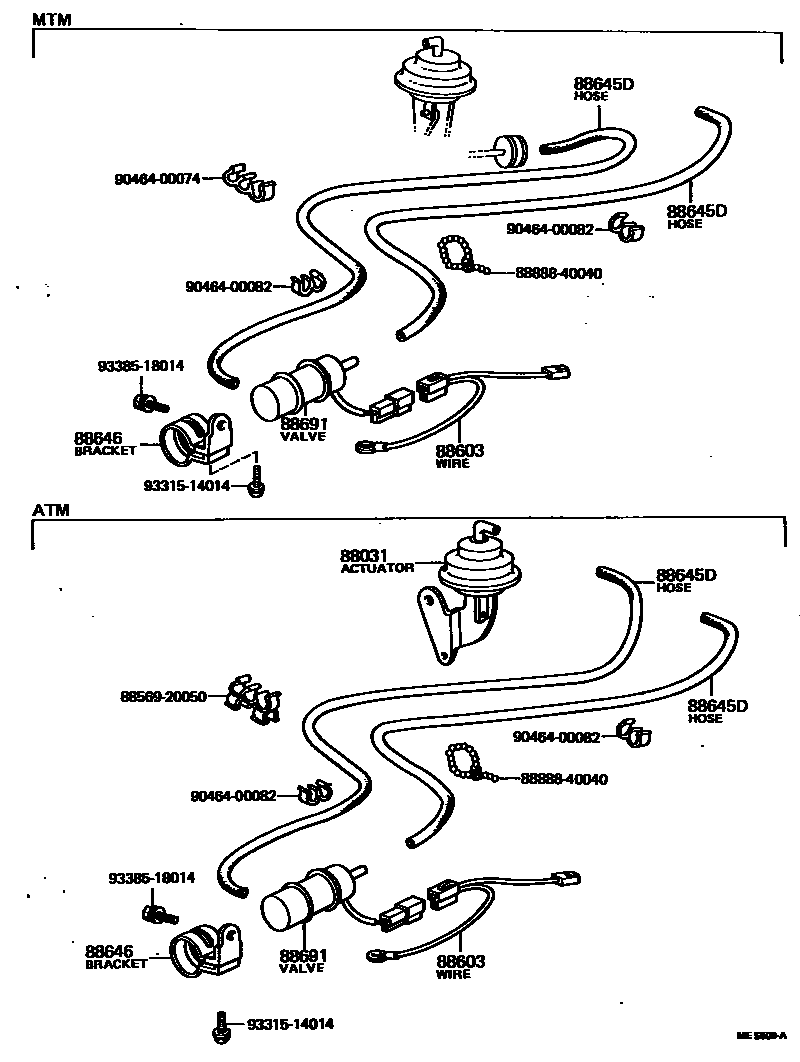

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main21099-36110iRT104,118..3FC..ARL197701-197905

main88031-22080iRT102,104,114,118..RHD197701-197905

main88686-20040iRT104,118..3FC..ARL197604-197701

88603WIRE, IDLE UP DEVICE

main88648-20110iRT104,118..ARL197604-197701

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10060iRT104,118..3FC..ARL197701-197905

*H,L=600,MARK=#0

main95411-10095iRT102,104,114,118..RHD; RT104,118..4F..ARL197701-197905

*H,L=650,MARK=#0; *H,L=750,MARK=#0

main95411-19995iRT104,118..4F..ARL197604-197701

*H,L=750,MARK=#*

88646BRACKET, IDLE UP DEVICE, NO.1

main88688-12010iRT104,118..ARL197604-197701

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-20050iRT104,118..4F..ARL197701-197905

main88690-20090iRT102,104,114,118..RHD197701-197905

main88690-20130iRT104,118..3FC..ARL197701-197905

main88691-14030iRT104,118..ARL197604-197701

8856920050CLAMP (FOR COOLER RELAY)

main88569-20050

8888840040BAND (FOR COOLER COMPRESSOR)

main88888-40040

9046400074

main90464-00074

9046400082

main90464-00082

9331514014

main93315-14014

9338518014

main93385-18014

11 parts on this diagram · 2 diagrams in section
