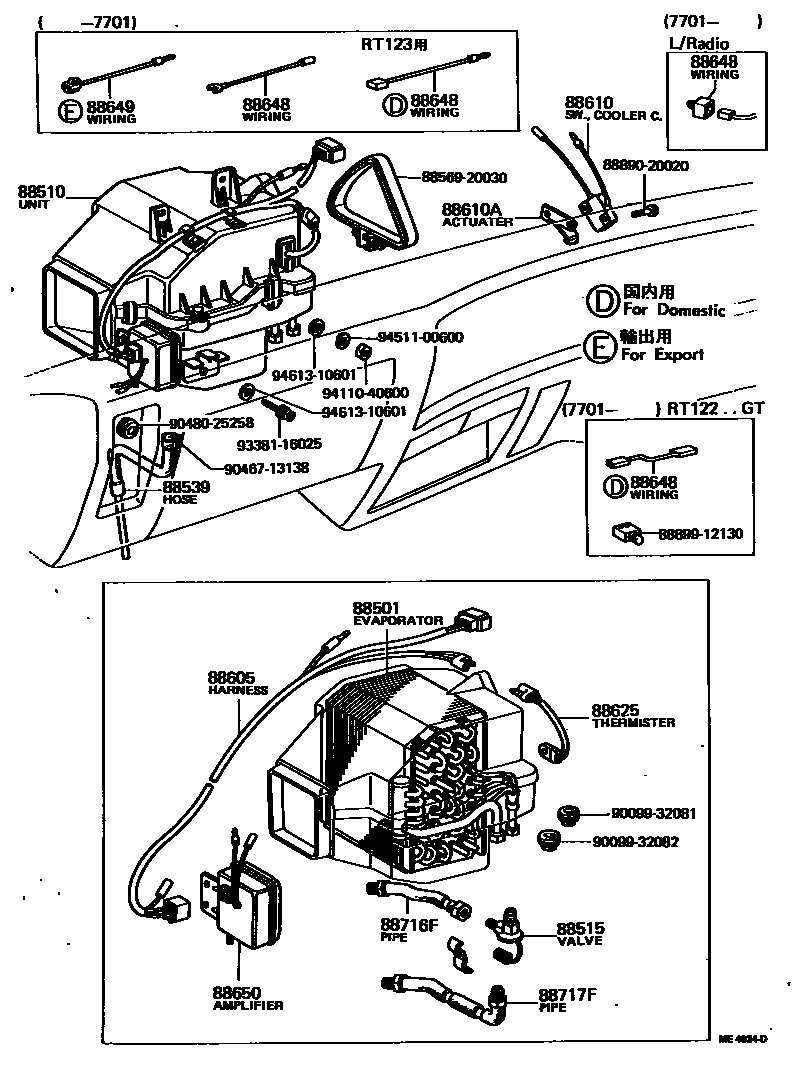

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20030iRT10#,112,114,116,117,118..RHD197308-197802

main88501-20040iRT10#,112,116,117,118..LHD197308-197509

main88501-20041iRT100,104,114,116,118..LHD197509-197905

main88501-20050iRT10#,11#..RHD197802-197905

88510UNIT ASSY, COOLER

main88510-20080iRT10#,112,114,116,117,118..RHD197308-197701

main88510-20081iRT10#,11#..RHD197701-197802

main88510-20090iRT10#,112,116,117,118..LHD197308-197509

main88510-20091iRT100,104,114,116,118..LHD197509-197701

main88510-20092iRT100,104,11#..LHD197701-197905

main88510-20101iRT10#,11#..RHD197802-197905

main88510-20120iRT100,104,11#..RHD197701-197802

FOR BOOST VENTILATOR

main88510-20121iRT100,104,11#..RHD197802-197808

FOR BOOST VENTILATOR

main88510-20130iRT100,104,11#..LHD197701-197905

FOR BOOST VENTILATOR

88515VALVE, COOLER EXPANSION

main88515-10010iRT10#,11#197308-197312

main88515-14010iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197312-197701

main88515-20031iRT10#,11#..RHD197802-197905

main88515-22040iRT10#,11#..ARL,EUR,GEN,SA197701-197802

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20040iRT10#,112,114,116,117,118..LHD197308-197905

main88539-20050iRT10#,112,114,116,117,118..RHD197308-197905

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-20070iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197701

main88605-20071iRT104,114,118..LHD197701-197905

main88605-20080iRT100,104,114,116,118..GEN197509-197701

FOR BOOST VENTILATOR

main88605-20100iRT100,104,11#..GEN197701-197808

FOR BOOST VENTILATOR

main88605-20110iRT100,116..GEN197701-197808

88610SWITCH ASSY, COOLER CONTROL

main88610-20120iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197701

88610AACTUATER (FOR COOLER CONTROL SWITCH)

main88893-20080iRT10#,112,114,116,117,118..RHD197405-197701

main88893-20090iRT10#,112,114,116,117,118..LHD197405-197701

main88893-22011iRT10#,11#197308-197405

88625THERMISTOR, COOLER, NO.1

main88625-20030iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197701

main88625-20050iRT10#,11#..ARL,EUR,GEN,SA197701-197905

88648WIRING, COOLER, NO.1

main82550-20020iRT10#,11#..EUR,GEN,SA197701-197905

L/RADIO

main88648-20040iRT100,116197308-197509

main88648-20070iRT10#,114,116,118..ARL,EUR,GEN,SA197509-197701

88649WIRING, COOLER, NO.2

main88649-25010iRT10#,114,116,118..RHD; RT100,116..LHD197509-197701

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20050iRT10#,112,114,116,117,118..RHD197308-197905

main88650-20060iRT10#,112,114,116,117,118..LHD197308-197905

main88650-20070iRT10#,114,116,118..RHD197509-197808

FOR BOOST VENTILATOR

main88650-20080iRT100,104,114,116,118..LHD197509-197905

FOR BOOST VENTILATOR

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-20200iRT10#,112,114,116,117,118..RHD197308-197701

main88716-20201iRT10#,11#..RHD197701-197802

main88716-20210iRT10#,112,114,116,117,118..LHD197308-197701

main88716-20211iRT100,104,11#..LHD197701-197905

main88716-20310iRT10#,11#..RHD197802-197905

88717FPIPE, COOLER REFRIGERANT SUCTION, F

main88717-20110iRT10#,112,114,116,117,118..RHD197308-197701

main88717-20111iRT10#,11#..RHD197701-197802

main88717-20120iRT10#,112,114,116,117,118..LHD197308-197701

main88717-20121iRT100,104,11#..LHD197701-197905

main88717-20200iRT10#,11#..RHD197802-197905

8856920030CLAMP (FOR COOLER RELAY)

main88569-20030

8889020020PUMP ASSY, BRINE W/BRACKET

main88890-20020

8889912130COVER, EVAPORATOR

main88899-12130

9009932081

main90099-32081

9009932082

main90099-32082

9046713138

main90467-13138

9048025258

main90480-25258

9338116025

main93381-16025

9411040600

main94110-40600

9451100600

main94511-00600

9461310601

main94613-10601

24 parts on this diagram · 1 diagram in section
