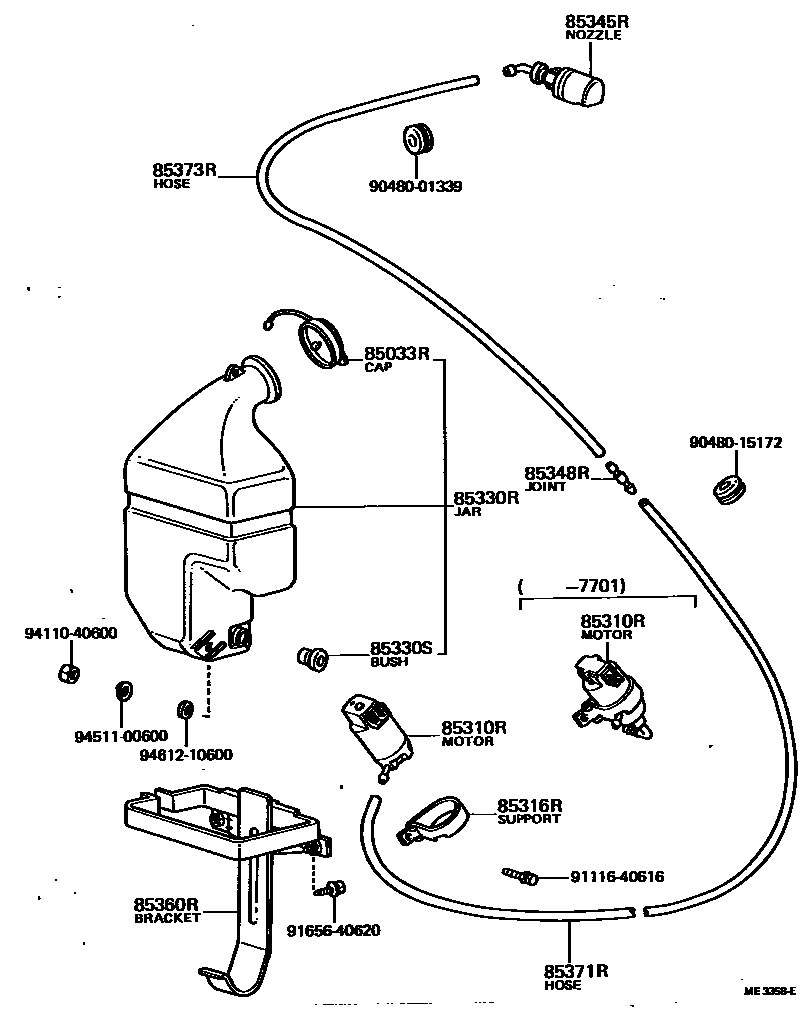

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85033-36120iRT117,118..EUR197403-197705

85310RMOTOR ASSY, REAR WASHER

main85310-20100iRT118..EUR197701-197705

main85310-23010iRT117,118..EUR197403-197701

85316RSUPPORT, REAR WASHER MOTOR

main85316-23010iRT118..EUR197701-197705

85330RJAR ASSY, REAR WASHER

main85330-23010iRT117,118..EUR197403-197701

main85330-23011iRT118..EUR197701-197705

85330SBUSH, REAR WASHER JAR

main90099-32057iRT117,118..EUR197403-197701

main90099-32089iRT118..EUR197701-197705

85345RNOZZLE, REAR WASHER

main85035-21010iRT117,118..EUR197403-197705

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-12011iRT117,118..EUR197403-197705

85360RBRACKET ASSY, REAR WASHER

main85360-21010iRT117,118..EUR197403-197705

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06253iRT117,118..EUR197403-197705

L=2000(*H,L=1400)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06320iRT117,118..EUR197403-197705

L=1000(*H,L=620)

9048001339

main90480-01339

9048015172

main90480-15172

9111640616

main91116-40616

9165640620

main91656-40620

9411040600

main94110-40600

9451100600

main94511-00600

9461210600

main94612-10600

17 parts on this diagram · 1 diagram in section
