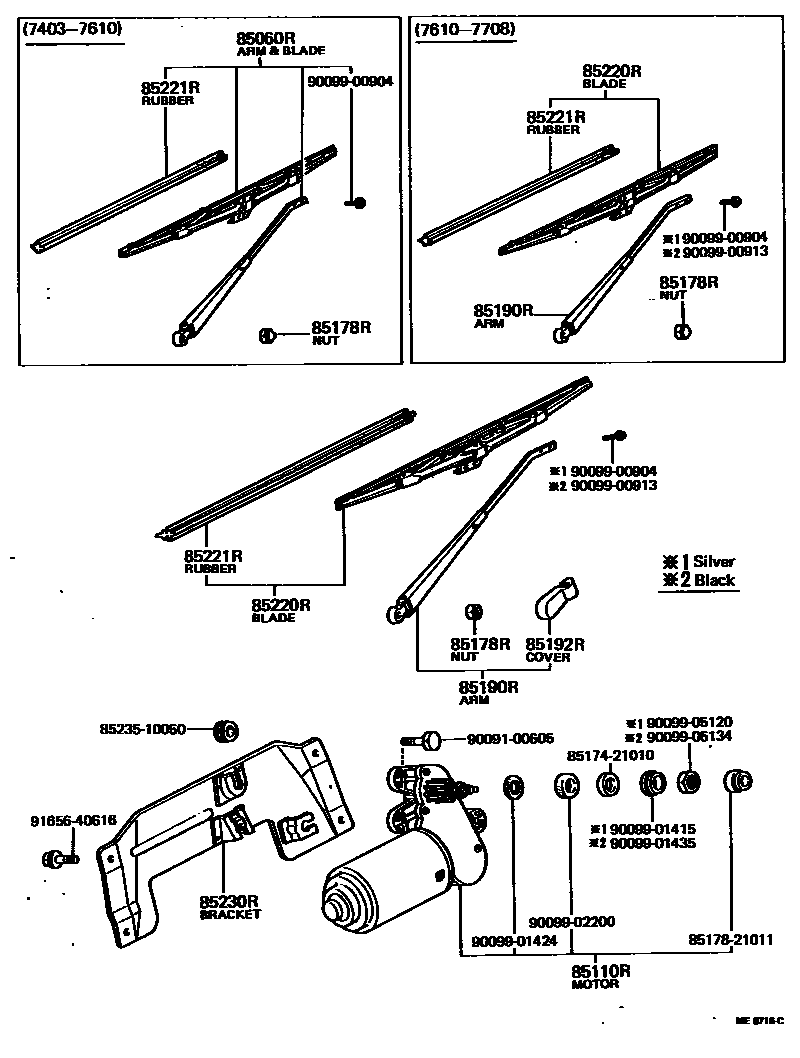

REAR WIPER

85060RARM AND BLADE ASSY, REAR WIPER

main85060-21010iRT117,118..EUR197403-197610

sub85220-21010

sub85190-21010

sub90099-00904

85110RMOTOR ASSY, REAR WIPER

main85110-21010iRT117,118..EUR197403-197701

main85110-21011iRT118..EUR197701-197706

main85110-29015iRT116,118..ARL,EUR,GEN197706-197905

85178RNUT (FOR REAR WIPER ARM SETTING)

main90176-06001iRT118..EUR197604-197701

main90176-06001iRT116,118..ARL,GEN197705-197708

SILVER

main90176-06002iRT118..EUR197701-197708

BLACK

main90176-06017iRT117,118..EUR197403-197604

sub90176-06001

main90179-06158iRT116,118..ARL,EUR,GEN197708-197905

85190RARM ASSY, REAR WIPER

main85190-21010iRT118..EUR197610-197701

sub85190-87101

main85190-21010iRT116,118..ARL,GEN197705-197708

SILVER

sub85190-87101

main85190-21020iRT118..EUR197701-197705

sub85190-13011

main85190-21020iRT116,118..ARL,EUR,GEN197705-197708

BLACK

sub85190-13011

main85190-21021iRT116,118..ARL,EUR,GEN197708-197905

85192RCOVER, REAR WIPER ARM

main85192-12010iRT116,118..ARL,EUR,GEN197708-197905

85220RBLADE ASSY, REAR WIPER

main85220-12140iRT116,118..ARL,EUR,GEN197708-197905

main85220-21010iRT116,118..ARL,EUR,GEN197610-197708

sub85220-12140

85221RBLADE, REAR WIPER

main85221-20050iRT117,118..EUR197403-197905

sub85221-20H90

85230RBRACKET ASSY, REAR WIPER

main85230-21010iRT117,118..EUR197403-197905

8517421010PACKING, WIPER LINK

main85174-21010

8517821011NUT (FOR FRONT WIPER ARM SETTING)

main85178-21011

8523510050CUSHION, WINDSHIELD WIPER MOUNTING

main85235-10050

9009100605

main90091-00605

9009900904

main90099-00904

9009900913

main90099-00913

9009901415

main90099-01415

9009901424

main90099-01424

9009901435

main90099-01435

9009902200

main90099-02200

9009905120

main90099-05120

9009905134

main90099-05134

9165640616

main91656-40616

21 parts on this diagram · 1 diagram in section
