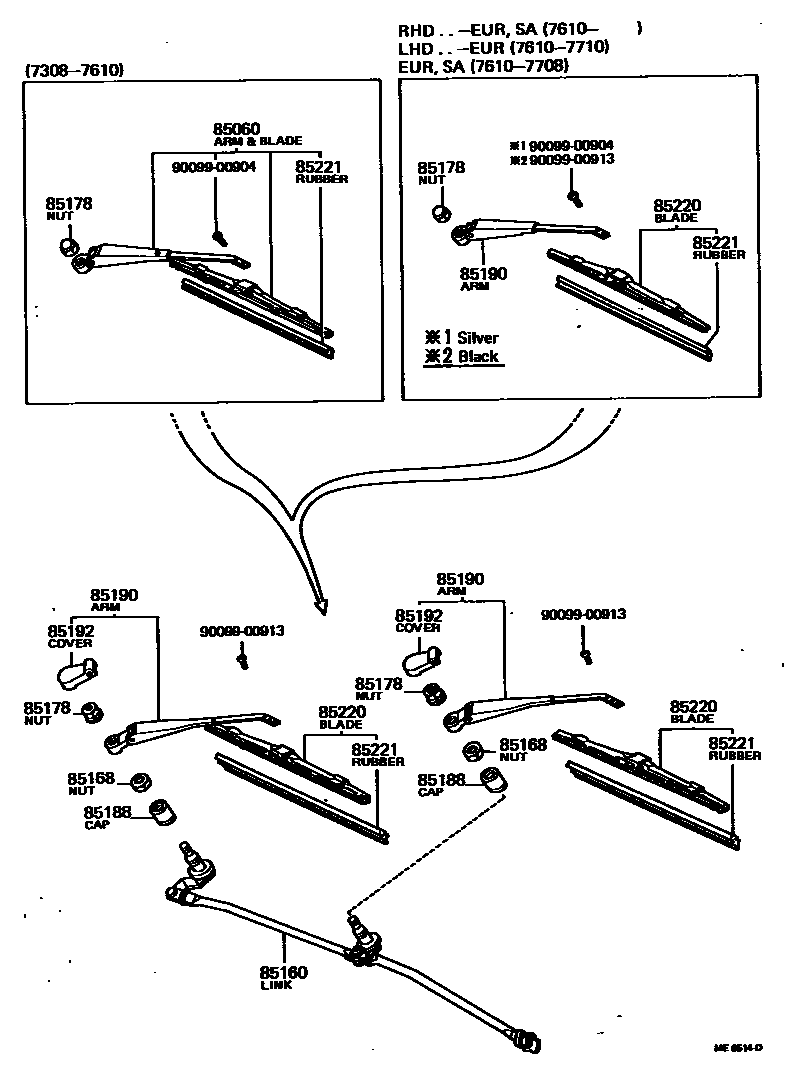

WINDSHIELD WIPER

0001 1 0002 1 0004 1

85060ARM AND BLADE ASSY, WINDSHIELD WIPER

main85060-20030×2iRT10#,112,114,116,117,118..RHD197308-197610

main85060-20040×2iRT10#,11#..LHD197308-197610

85160LINK ASSY, WINDSHIELD WIPER

main85160-20060iRT10#,112,114,116,117,118..RHD197308-197703

main85160-20061iRT10#,11#..RHD197703-197905

main85160-20080iRT10#,110,112,116,117,118..LHD197308-197509

main85160-20081iRT100,104,11#..LHD197703-197905

main85160-20090iRT104,118..LHD..EUR197509-197808

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85186-12170×2iRT100,104,11#..LHD; RT102,104,114,118..RHD..(EUR,SA)197710-197903

BLACK

main85186-12171×2iRT10#..SA; RT104,118..GEN197903-197905

BLACK

main85186-12210×2iRT100,104,11#..RHD197710-197905

SILVER

main85186-20040×2iRT10#,11#197308-197507

SILVER

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08005×2iRT10#,11#197507-197701

SILVER

main90176-08012×2iRT10#,11#..ARL,GEN,PHL,SA197703-197705

SILVER

main90176-08018×2iRT10#,11#197308-197507

main90176-08019×2iRT104,118..EUR197701-197705

BLACK

main90179-08015×2iRT100,104,11#..LHD; RT102,104,114,118..RHD..(EUR,SA)197710-197905

BLACK

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85179-12170×2iRT100,104,11#..LHD; RT102,104,114,118..RHD..(EUR,SA)197710-197905

BLACK

main85179-12210×2iRT10#,11#197507-197701

SILVER

main85179-20060iRT10#,11#197308-197507

SILVER

85190ARM ASSY, WINDSHIELD WIPER

main85190-20180×2iRT10#,11#..RHD197701-197705

SILVER

main85190-20190×2iRT100,104,11#..LHD197701-197710

SILVER

main85190-20200×2iRT104,118..RHD..EUG197701-197705

BLACK

main85190-20201×2iRT102,104,114,118..RHD..(EUR,SA)197708-197905

BLACK

main85190-20210×2iRT104,118..LHD..EUR197701-197708

BLACK

main85190-20211×2iRT100,104,11#..LHD197710-197905

BLACK

85192COVER, WINDSHIELD WIPER ARM

main85192-12010×2iRT100,104,11#..LHD; RT102,104,114,118..RHD..(EUR,SA)197710-197905

BLACK

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12140×2iRT104,118..RHD..EUG197701-197705

BLACK

main85220-12190×2iRT104,118..LHD..EUR197701-197710

BLACK

main85220-12210×2iRT100,104,11#..RHD197708-197905

SILVER

main85220-12220×2iRT102,104,114,118..RHD..(EUR,SA)197708-197905

BLACK

main85220-12250×2iRT100,104,11#..LHD197710-197905

BLACK

main85220-20070×2iRT100,104,11#..RHD197705-197708

SILVER

main85220-20090×2iRT100,104,11#..LHD197701-197710

SILVER

85221BLADE, WINDSHIELD WIPER

main85221-12060×2iRT10#,11#197710-197905

main85221-14010×2iRT10#,11#..LHD197308-197612

main85221-20050×2iRT100,104,11#..LHD197708-197710

9009900904

main90099-00904

9009900913

main90099-00913

11 parts on this diagram · 3 diagrams in section
