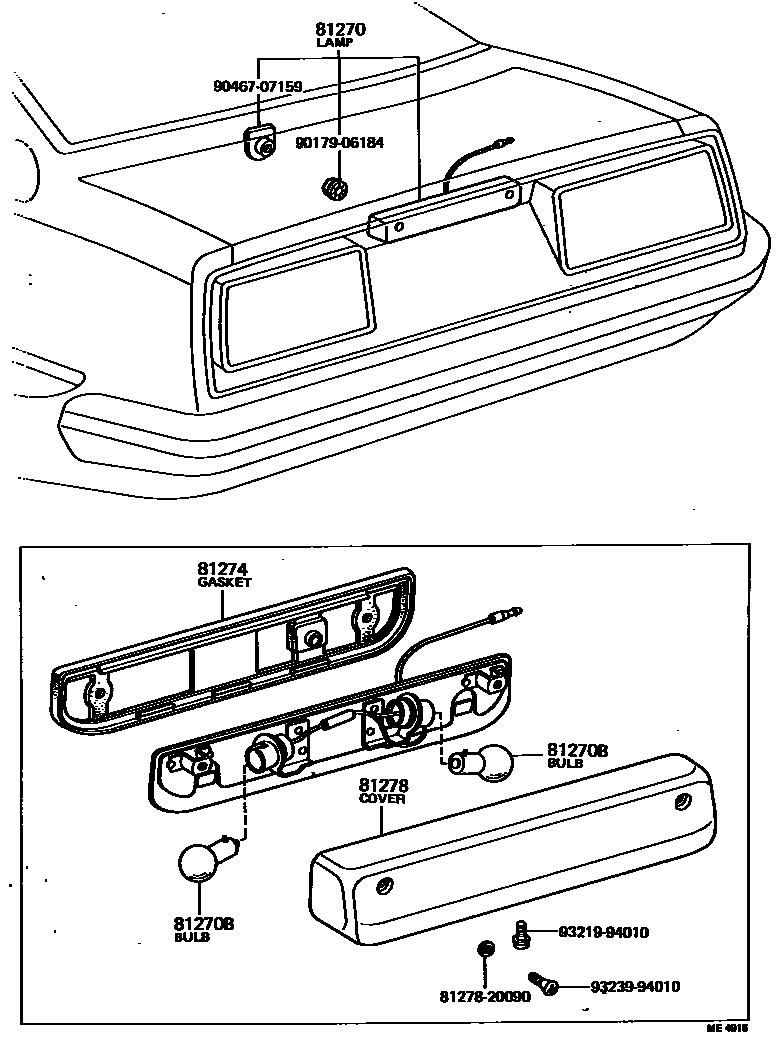

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-29165iRT10#,110,112,114197308-197905

main81270-29185iRT116,117,118197308-197701

main81270-29186iRT116,118197701-197905

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11100×2iRT10#,11#197308-197905

12V 10W,12V 10W

81274GASKET, LICENSE PLATE LAMP BODY

main81274-20090iRT10#,110,112,114197308-197905

main81274-21070iRT116,117,118197308-197905

81278COVER, LICENSE PLATE LAMP

main81276-20090iRT10#,110,112,114197308-197905

8127820090COVER, LICENSE PLATE LAMP

main81278-20090

9017906184

main90179-06184

9046707159

main90467-07159

9321994010

main93219-94010

9323994010

main93239-94010

9 parts on this diagram · 2 diagrams in section
