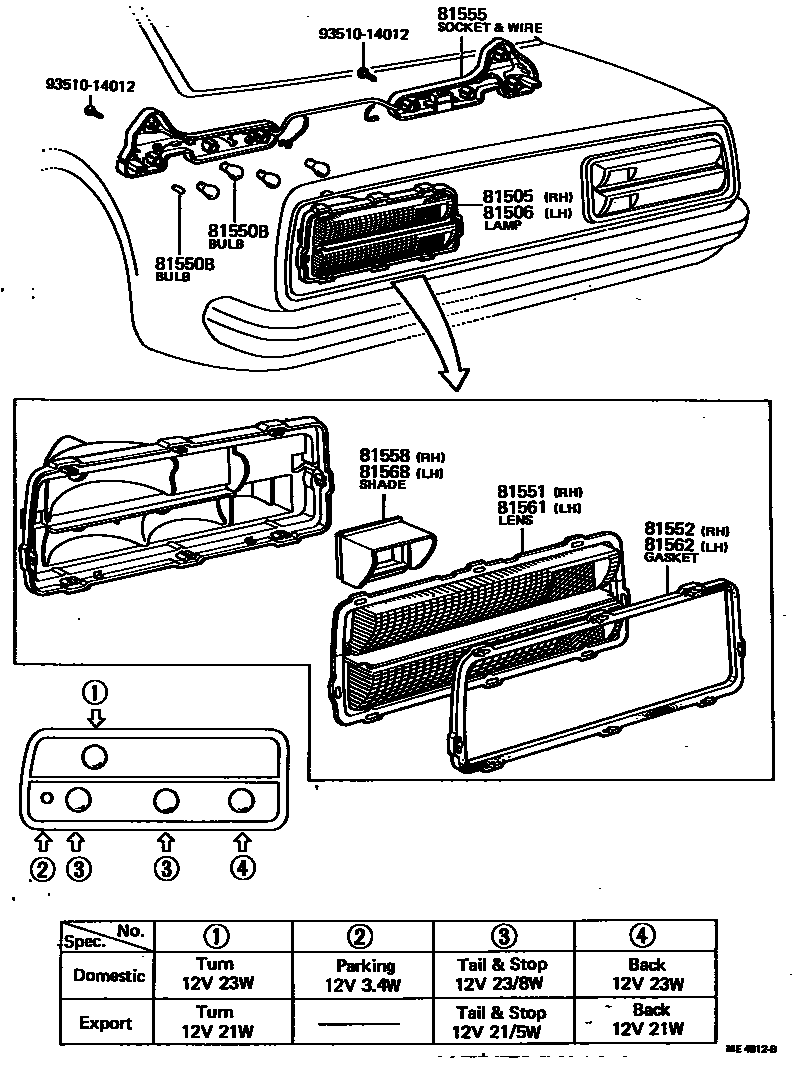

REAR COMBINATION LAMP
81505LAMP SUB-ASSY, REAR COMBINATION, RH
AMBER-RED-CLEAR,KOITO
AMBER-RED-CLEAR,KOITO
AMBER-RED-CLEAR,IKI
AMBER-RED-CLEAR,KOITO
AMBER-RED-CLEAR
AMBER-RED-CLEAR
81506LAMP SUB-ASSY, REAR COMBINATION, LH
AMBER-RED-CLEAR,KOITO
AMBER-RED-CLEAR,KOITO
AMBER-RED-CLEAR,IKI
AMBER-RED-CLEAR,KOITO
81550LAMP ASSY, REAR COMBINATION, RH
AMBER-RED-CLEAR
AMBER-RED-CLEAR
81550BBULB(FOR REAR COMBINATION LAMP)
12V 21W,12V 21W
12V 21/5W,12V 21/5W
81551LENS, REAR COMBINATION LAMP, RH
AMBER-RED-CLEAR,IKI
AMBER-RED-CLEAR,KOITO
RED
AMBER-RED-CLEAR,KOITO
AMBER-RED-CLEAR
AMBER-RED-CLEAR
AMBER-RED-CLEAR
CLEAR
AMBER-RED
81552GASKET, REAR COMBINATION LAMP LENS, RH
IKI
KOITO
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
IKI
KOITO
81558SHADE, REAR COMBINATION LAMP, NO.1 RH
81561LENS, REAR COMBINATION LAMP, LH
RED
AMBER-RED-CLEAR,IKI
AMBER-RED-CLEAR,KOITO
AMBER-RED-CLEAR,KOITO
AMBER-RED-CLEAR
AMBER-RED-CLEAR
AMBER-RED-CLEAR
CLEAR
AMBER-RED
81562GASKET, REAR COMBINATION LAMP LENS, LH
IKI
KOITO
81568SHADE, REAR COMBINATION LAMP, NO.1 LH
9351014012
main93510-14012
12 parts on this diagram · 5 diagrams in section
