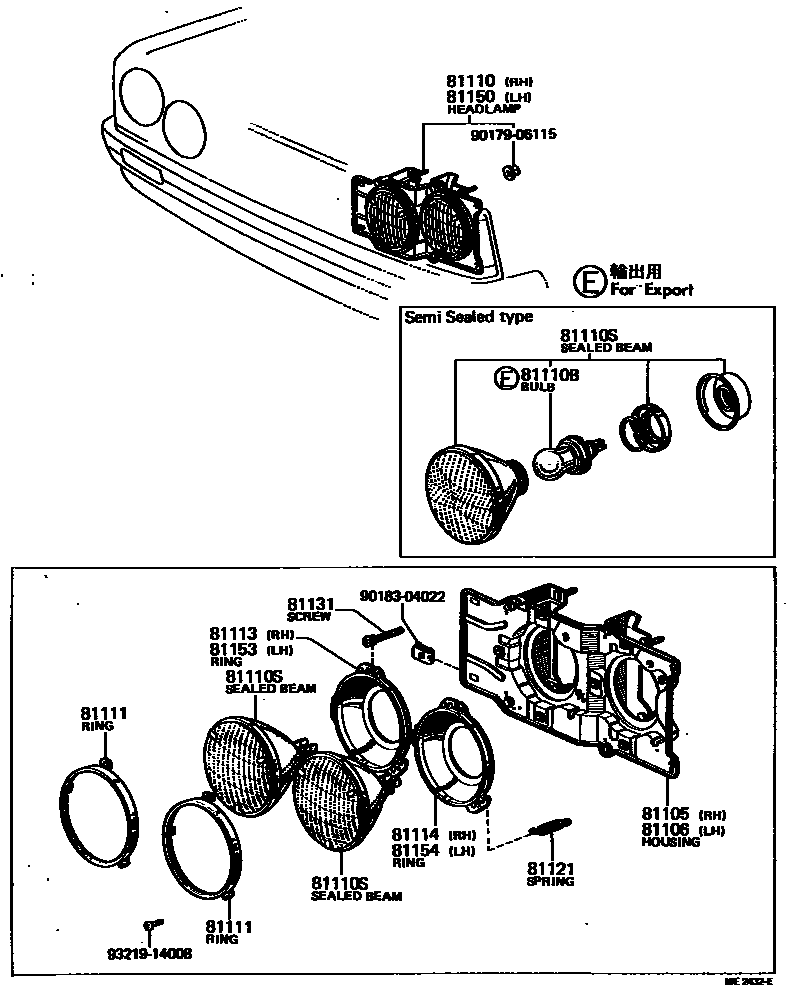

HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-20170iRT10#,116,117,118197308-197701

main81105-20210iRT110,112,114197308-197701

main81105-20260iRT10#,11#197701-197905

IKI

main81105-20280iRT10#,11#197701-197905

KOITO

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-20130iRT10#,116,117,118197308-197701

main81106-20170iRT110,112,114197308-197701

main81106-20220iRT10#,11#197701-197905

IKI

main81106-20240iRT10#,11#197701-197905

KOITO

81110HEADLAMP ASSY, RH

main81110-29305iRT10#,116,117,118..RHD197308-197701

main81110-29315iRT10#,116,117,118..LHD197308-197701

main81110-29325iRT112,114..RHD197308-197701

main81110-29335iRT110,112..LHD197308-197509

main81110-29336iRT110,114..LHD197509-197701

main81110-29345iRT112,114..LHD197308-197701

SEMI-SEALED,WHITE

main81110-29355iRT112,114..LHD197308-197701

SEMI-SEALED,YELLOW

main81110-29365iRT10#,116,117,118..LHD197308-197701

SEMI-SEALED,WHITE

main81110-29375iRT10#,116,117,118..LHD197308-197701

SEMI-SEALED,YELLOW

main81110-29395iRT104,118..EUR197409-197509

FOR HEADLAMP CLEANER

main81110-29555iRT10#,11#..RHD197701-197905

IKI

main81110-29565iRT100,104,11#..LHD197701-197905

IKI

main81110-29575iRT10#,11#..RHD197701-197905

KOITO

main81110-29585iRT100,104,11#..LHD197701-197905

KOITO

main81110-29595iRT100,104,11#..LHD197701-197905

SEMI-SEALED,WHITE

main81110-29605iRT100,104,11#..LHD197701-197905

SEMI-SEALED,YELLOW

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×4iRT10#,112,114,116,117,118..LHD197308-197905

12V 45/40W,WHITE,12V 45/40W,WHITE

main90981-13014×4iRT10#,112,114,116,117,118..LHD197308-197905

12V 45/40W,YELLOW,12V 45/40W,YELLOW

81110SSEALED BEAM UNIT, NO.1

main90981-02003×2iRT110,112..LHD197308-197509

12V 37.5W

main90981-02004×2iRT10#,11#..RHD197701-197712

12V 37.5/50W,TOSHIBA

main90981-02006×2iRT100,104,11#..LHD197701-197712

12V 37.5/50W,TOSHIBA

main90981-02011×2iRT104,118..LHD..EUG; RT104,118..LHD..GEN197509-197701

12V 37.5W,*WB,12V 37.5W

main90981-02012×2iRT10#,116,117,118..RHD197308-197701

12V 37.5/50W,*WB,12V 37.5/50W

main90981-02013×2iRT10#,116,117,118..LHD197308-197701

12V 37.5/50W,*WB,12V 37.5/50W

main90981-02014×2iRT112,114..LHD197308-197701

WHITE BULB,TYPE 1

main90981-02015×2iRT112,114..LHD197308-197701

YELLOW BULB,TYPE 1

main90981-02016×2iRT112,114..LHD197308-197701

WHITE BULB,TYPE 2

main90981-02017×2iRT112,114..LHD197308-197701

YELLOW BULB,TYPE 2

main90981-02018×2iRT100,104,11#..LHD197701-197905

12V 45/40W,*WSB,WHITE BULB,TYPE 1

main90981-02019iRT100,104,11#..LHD197701-197905

12V 45/40W,*WSB,WHITE BULB,TYPE 2,LH

main90981-02020×2iRT10#,116,117,118..LHD197308-197701

12V 45/40W,*YSB,YELLOW BULB,TYPE 1

main90981-02021×2iRT10#,116,117,118..LHD197308-197701

12V 45/40W,*YSB,YELLOW BULB,TYPE 2

main90981-02022×2iRT104,118..EUR197409-197509

FOR HEADLAMP CLEANER,TYPE 2

main90981-02023×2iRT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA197701-197712

12V 37.5W,TOSHIBA

main90981-02024iRT100,104,11#..LHD197701-197905

WHITE BULB,TYPE 2,RH

main90981-02025iRT100,104,11#..LHD197701-197905

YELLOW BULB,TYPE 2,RH

main90981-02027×2iRT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA197712-197905

12V 37.5W,IKI

main90981-02028×2iRT10#,11#..RHD197712-197905

12V 37.5/50W,IKI

main90981-02029×2iRT100,104,11#..LHD197712-197905

12V 37.5/50W,IKI

81111RING, SEALED BEAM RETAINING

main81111-20110×4iRT10#,11#197701-197905

IKI

main81111-20111×2iRT110,112,114197308-197701

TYPE 1

main81111-20170×4iRT10#,11#197701-197702

KOITO

main81111-20280×4iRT10#,11#197702-197905

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-14100iRT10#,11#197701-197905

IKI

main81113-20111iRT110,112,114197308-197701

main81113-20170iRT10#,116,117,118197308-197701

main81153-30150iRT10#,11#197701-197905

KOITO

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-20170iRT10#,116,117,118197308-197701

main81114-20210iRT110,112,114197308-197701

main81154-30150iRT10#,11#197701-197905

KOITO

81121SPRING, HEADLAMP TENSION

main81121-20100iRT10#,11#197701-197905

KOITO

main90506-16019×4iRT10#,116,117,118197308-197701

main90506-18018×4iRT110,112,114197308-197701

81131SCREW, HEADLAMP ADJUSTING

main81131-20043×8iRT10#,116,117,118197308-197701

main81131-20053×8iRT10#,11#197701-197905

IKI

81150HEADLAMP ASSY, LH

main81150-29305iRT10#,116,117,118..RHD197308-197701

main81150-29315iRT10#,116,117,118..LHD197308-197701

main81150-29325iRT112,114..RHD197308-197701

main81150-29335iRT110,112..LHD197308-197509

main81150-29336iRT110,114..LHD197509-197701

main81150-29345iRT112,114..LHD197308-197701

SEMI-SEALED,WHITE

main81150-29355iRT112,114..LHD197308-197701

SEMI-SEALED,YELLOW

main81150-29365iRT10#,116,117,118..LHD197308-197701

SEMI-SEALED,WHITE

main81150-29375iRT10#,116,117,118..LHD197308-197701

SEMI-SEALED,YELLOW

main81150-29395iRT104,118..EUR197409-197509

FOR HEADLAMP CLEANER

main81150-29555iRT10#,11#..RHD197701-197905

IKI

main81150-29565iRT100,104,11#..LHD197701-197905

IKI

main81150-29575iRT10#,11#..RHD197701-197905

KOITO

main81150-29585iRT100,104,11#..LHD197701-197905

KOITO

main81150-29595iRT100,104,11#..LHD197701-197905

SEMI-SEALED,WHITE

main81150-29605iRT100,104,11#..LHD197701-197905

SEMI-SEALED,YELLOW

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-30170iRT10#,11#197701-197905

KOITO

main81153-14100iRT10#,11#197701-197905

IKI

main81153-20071iRT110,112,114197308-197701

main81153-20130iRT10#,116,117,118197308-197701

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81114-30170iRT10#,11#197701-197905

KOITO

main81154-20130iRT10#,116,117,118197308-197701

main81154-20170iRT110,112,114197308-197701

9017906115

main90179-06115

9018304022

main90183-04022

9321914008

main93219-14008

16 parts on this diagram · 1 diagram in section
