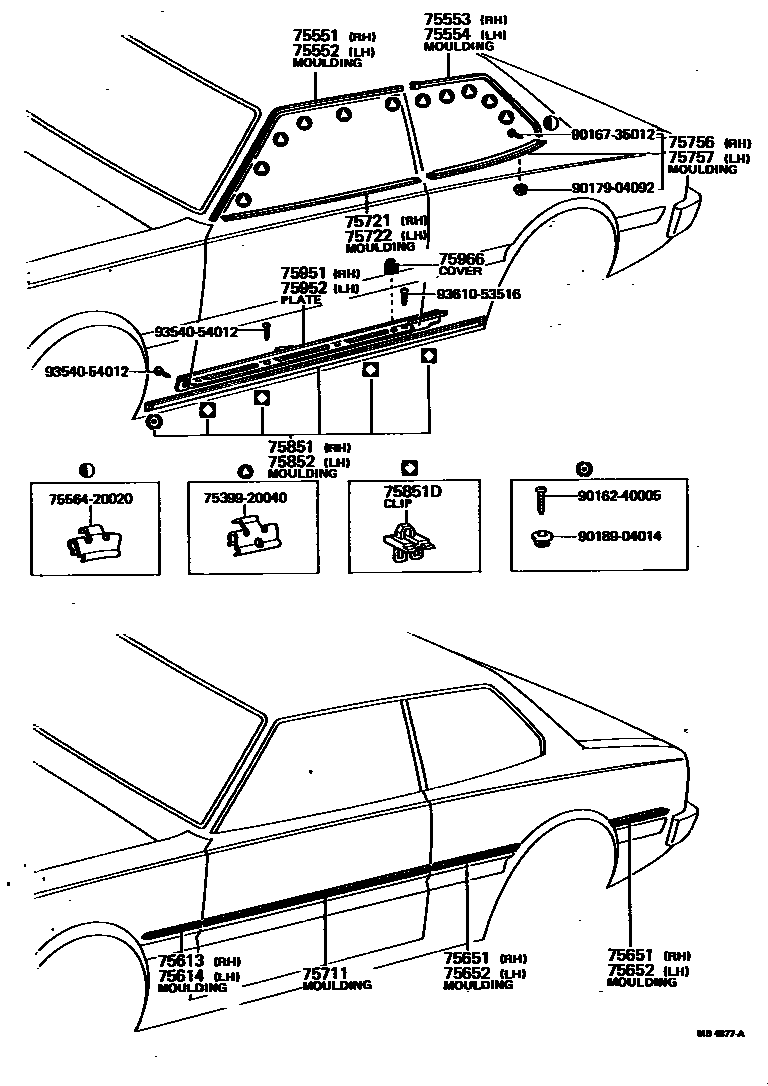

SIDE MOULDING

0001 1 0002 1 0003 1 0004 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-20100iRT10#,116,117,118197308-197905

main75551-20130iRT110,112,114197308-197808

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-20100iRT10#,116,117,118197308-197905

main75552-20130iRT110,112,114197308-197808

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75507-20080iRT10#..4D197308-197905

main75507-20100iRT104..2D197308-197411

main75507-21010iRT116,117,118197308-197905

main75555-29015iRT112,114197308-197311

main75555-29016iRT110,112,114197311-197808

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75508-20080iRT10#..4D197308-197905

main75508-20100iRT104..2D197308-197411

main75508-21010iRT116,117,118197308-197905

main75556-29015iRT112,114197308-197311

main75556-29016iRT110,112,114197311-197808

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-20010-01iRT118..EUR197512-197701

BLACK,BLACK

main75611-20010-04iRT116,118..EUR,GEN197701-197905

BLUE,BLUE

main75611-20010-06iRT117,118..EUR197409-197701

BROWN,BROWN

main75611-20010-16iRT117,118..EUR197409-197512

GOLD M.,BROWN

main75611-20020-01iRT104..EUR197512-197609

BLACK,BLACK

main75611-20020-04iRT104..EUR;RT104..LHD..4F..STD..GEN197609-197701

BLUE,BLUE

main75611-20020-06iRT104..EUR;RT104..LHD..4F..STD..GEN197609-197701

BROWN,BROWN

main75611-20020-16iRT102,104..EUR197410-197512

GOLD M.,BROWN

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75611-20010-01iRT118..EUR197512-197701

BLACK,BLACK

main75611-20010-04iRT116,118..EUR,GEN197701-197905

BLUE,BLUE

main75611-20010-06iRT117,118..EUR197409-197701

BROWN,BROWN

main75611-20010-16iRT117,118..EUR197409-197512

GOLD M.,BROWN

main75611-20020-01iRT104..EUR197512-197609

BLACK,BLACK

main75611-20020-04iRT104..EUR;RT104..LHD..4F..STD..GEN197609-197701

BLUE,BLUE

main75611-20020-06iRT104..EUR;RT104..LHD..4F..STD..GEN197609-197701

BROWN,BROWN

main75611-20020-16iRT102,104..EUR197410-197512

GOLD M.,BROWN

75651MOULDING, QUARTER, OUTSIDE RH

main75651-20030-01iRT100..LHD..4F..STD..GEN; RT104..EUR;RT104..LHD..4F..STD..GEN197609-197701

BLACK,BLACK; REAR,BLACK,BLACK

main75651-20030-04iRT102,104..EUR197410-197609

BLUE,BLUE

main75651-20030-06iRT114..GEN197701-197808

REAR,BROWN,BROWN

main75651-20030-16iRT102,104..EUR197410-197512

GOLD M.,BROWN

main75651-21030-01iRT116,118..EUR,GEN197701-197905

BLACK,BLACK

main75651-21030-04iRT117,118..EUR197409-197701

BLUE,BLUE

main75651-21030-06iRT117,118..EUR197409-197701

BROWN,BROWN

main75651-21030-16iRT117,118..EUR197409-197512

GOLD M.,BROWN

main75655-20020-01iRT114..GEN197701-197808

FRONT,BLACK,BLACK

main75655-20020-04iRT114..GEN197701-197808

FRONT,BLUE,BLUE

main75655-20020-06iRT114..GEN197701-197808

FRONT,BROWN,BROWN

75652MOULDING, QUARTER, OUTSIDE LH

main75652-20020-01iRT104..EUR197512-197609

BLACK,BLACK

main75652-20020-04iRT100..LHD..4F..STD..GEN; RT104..EUR;RT104..LHD..4F..STD..GEN197609-197701

BLUE,BLUE; REAR,BLUE,BLUE

main75652-20020-06iRT114..GEN197701-197808

REAR,BROWN,BROWN

main75652-20020-16iRT102,104..EUR197410-197512

GOLD M.,BROWN

main75652-21030-01iRT118..EUR197512-197701

BLACK,BLACK

main75652-21030-04iRT117,118..EUR197409-197701

BLUE,BLUE

main75652-21030-06iRT117,118..EUR197409-197701

BROWN,BROWN

main75652-21030-16iRT117,118..EUR197409-197512

GOLD M.,BROWN

main75656-20020-01iRT114..GEN197701-197808

FRONT,BLACK,BLACK

main75656-20020-04iRT114..GEN197701-197808

FRONT,BLUE,BLUE

main75656-20020-06iRT114..LHD..4F197609-197701

FRONT,BROWN,BROWN

75711MOULDING, FRONT DOOR OUTSIDE, NO.1

main75711-20030-01×2iRT118..EUR197512-197701

BLACK,BLACK,TRIM2#

main75711-20030-04×2iRT117,118..EUR197409-197701

BLUE,BLUE,TRIM8#

main75711-20030-06×2iRT116,118..EUR,GEN197701-197905

BROWN,BROWN,TRIM4#

main75711-20030-16×2iRT117,118..EUR197409-197512

GOLD M.,BROWN

main75711-20050-01×2iRT100..LHD..4F..STD..GEN; RT104..EUR;RT104..LHD..4F..STD..GEN197610-197701

BLACK,BLACK,TRIM2#

main75711-20050-04×2iRT100..LHD..4F..STD..GEN; RT104..EUR;RT104..LHD..4F..STD..GEN197610-197701

BLUE,BLUE,TRIM8#

main75711-20050-06×2iRT100..LHD..4F..STD..GEN; RT104..EUR;RT104..LHD..4F..STD..GEN197610-197701

BROWN,BROWN,TRIM4#

main75711-20050-16×2iRT102,104..EUR197410-197512

GOLD M.,BROWN

main75711-20060-01×2iRT114..LHD..4F197609-197701

BLACK,BLACK,TRIM2#

main75711-20060-04×2iRT114..GEN197701-197808

BLUE,BLUE,TRIM8#

main75711-20060-06×2iRT114..LHD..4F197609-197701

BROWN,BROWN,TRIM4#

75721MOULDING, FRONT DOOR BELT, RH

main75710-20080iRT10#..DLX197308-197701

main75710-20081iRT100,104..DLX197701-197905

main75710-20100iRT104..2D197308-197411

main75710-29015iRT110,112,114197308-197808

75722MOULDING, FRONT DOOR BELT, LH

main75720-20080iRT10#..DLX197308-197701

main75720-20081iRT100,104..DLX197701-197905

main75720-20100iRT104..2D197308-197411

main75720-29015iRT110,112,114197308-197808

75756MOULDING, QUARTER BELT, RH

main75605-29015iRT118..ARL197308-197905

main75708-29015iRT104..2D197308-197411

main75740-29015iRT110,112,114197308-197808

75757MOULDING, QUARTER BELT, LH

main75606-29015iRT118..ARL197308-197905

main75709-29015iRT104..2D197308-197411

main75750-29015iRT110,112,114197308-197808

75851MOULDING, ROCKER PANEL, RH

main75850-29045iRT10#,112,114..DLX197308-197406

main75850-29046iRT10#,110,112,114..DLX197406-197701

main75850-29047iRT100,104,114..DLX197701-197905

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75859-20010×8iRT10#,110,112,114..DLX197308-197701

main75859-20011×8iRT100,104,114..DLX197701-197905

75852MOULDING, ROCKER PANEL, LH

main75860-29045iRT10#,112,114..DLX197308-197406

main75860-29046iRT10#,110,112,114..DLX197406-197701

main75860-29047iRT100,104,114..DLX197701-197905

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-20050iRT10#,116,118..RHD; RT100,104..LHD..STD;RT100..LHD..3H..DLX; RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL)197509-197701

main67913-20070iRT110; RT114..RHD197509-197701

main67913-20080-01iRT10#,116,118197701-197905

FULL CARPET,BLACK,BLACK,TRIM2#

main67913-20080-03iRT10#,116,118197701-197905

FULL CARPET,GRAY,GRAY,TRIM1#

main67913-20080-05iRT100..LHD..GEN;RT100..DLX..PHL;RT104,116,118..LHD197509-197701

FULL CARPET,BEIGE,BEIGE,TRIM4#

main67913-20080-06iRT100..LHD..GEN;RT100..DLX..PHL;RT104,116,118..LHD197509-197701

FULL CARPET,BROWN,BROWN,TRIM4#

main67913-20080-15iRT10#,116,118197701-197905

FULL CARPET,BEIGE,BEIGE,TRIM4#

main67913-20090-01iRT114197701-197808

BLACK,BLACK,TRIM2#

main67913-20090-05iRT114..LHD197509-197701

BEIGE,BEIGE,TRIM4#

main67913-20090-06iRT114..LHD197509-197701

BROWN,BROWN,TRIM4#

main67913-20090-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67914-20050iRT10#,116,118..RHD; RT100,104..LHD..STD;RT100..LHD..3H..DLX; RT118..LHD..EUG;RT116,118..LHD..(GEN,PHL)197509-197701

main67914-20070iRT110; RT114197308-197509

main67914-20080-01iRT10#,116,118197701-197905

FULL CARPET,BLACK,BLACK,TRIM2#

main67914-20080-03iRT10#,116,118197701-197905

FULL CARPET,GRAY,GRAY,TRIM1#

main67914-20080-05iRT100..LHD..GEN;RT100..DLX..PHL;RT104,116,118..LHD197509-197701

FULL CARPET,BEIGE,BEIGE,TRIM4#

main67914-20080-06iRT100..LHD..GEN;RT100..DLX..PHL;RT104,116,118..LHD197509-197701

FULL CARPET,BROWN,BROWN,TRIM4#

main67914-20080-15iRT10#,116,118197701-197905

FULL CARPET,BEIGE,BEIGE,TRIM4#

main67914-20090-01iRT114197701-197808

BLACK,BLACK,TRIM2#

main67914-20090-05iRT114..LHD197509-197701

BEIGE,BEIGE,TRIM4#

main67914-20090-06iRT114..LHD197509-197701

BROWN,BROWN,TRIM4#

main67914-20090-15iRT114197701-197808

BEIGE,BEIGE,TRIM4#

75966COVER, DOOR SCUFF PLATE HOLE

main67935-20010×2iRT10#,11#197308-197511

FOR L/SEAT BELT

7539920040RETAINER, ROOF DRIP SIDE FINISH MOULDING

main75399-20040

7556420020RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75564-20020

9016240005

main90162-40005

9016735012

main90167-35012

9017904092

main90179-04092

9018904014

main90189-04014

9354054012

main93540-54012

9361053516

main93610-53516

27 parts on this diagram · 4 diagrams in section
