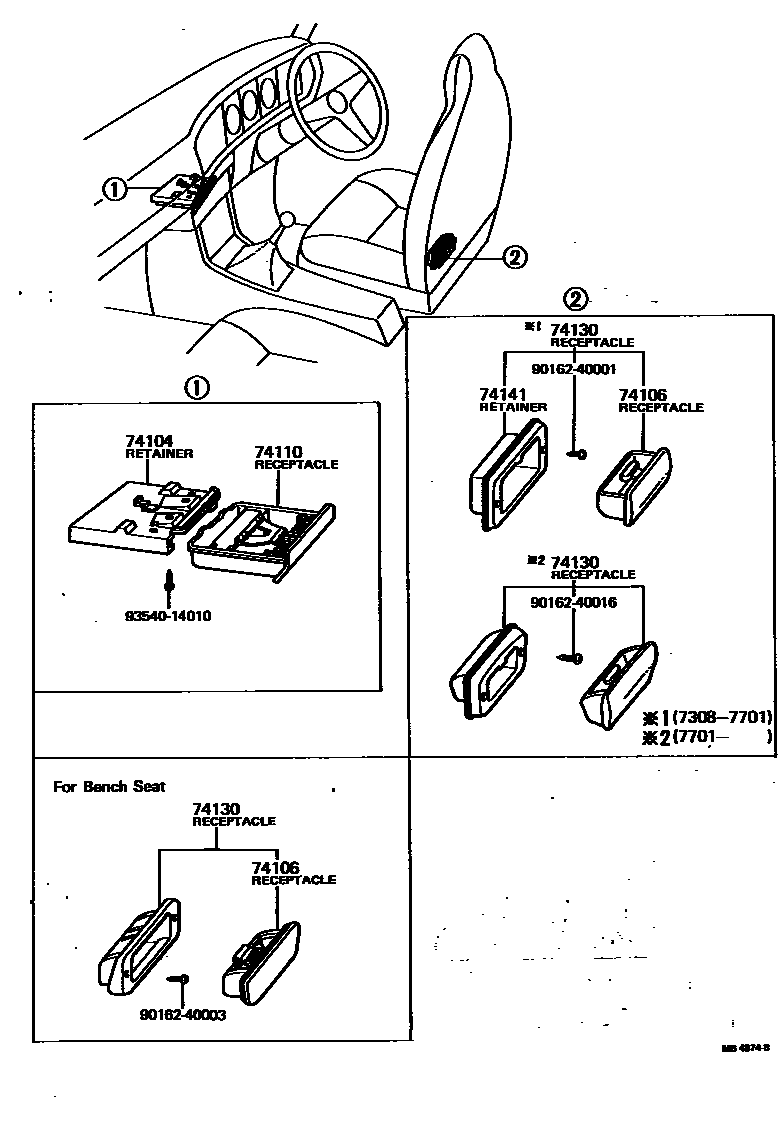

ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-20050iRT10#,112,114,116,117,118..RHD197308-197701

main74104-20060iRT10#,11#..LHD197308-197701

main74104-20070iRT100,116,118..RHD..STD;RT104..RHD..STD..(ARL,GEN)197701-197905

main74104-20080iRT118..3FC;RT10#,114,116..RHD;RT118..RHD..(EUR,GEN)197701-197905

FOR W/LIGHT

main74104-20090iRT104..LHD..STD..GEN;RT100,116,118..LHD..STD197701-197905

main74104-20100iRT104,11#..LHD;RT100..LHD..GEN197701-197905

FOR W/LIGHT

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74106-12010-03iRT100,102,110,112,116,117..LHD197308-197408

FOR SP. GRAY,GRAY,TRIM1#

main74106-12010-06iRT100,102,110,112,116,117..LHD197308-197408

FOR SP.OLIVE-BROWN,BROWN,TRIM4#

main74106-12010-11iRT10#,11#..LHD197308-197610

FOR SP. BLACK,BLACK,TRIM2#

main74106-20010-01iRT100,116..RHD..3H197701-197808

FOR BN. BLACK,BLACK,TRIM2#

main74106-20010-03iRT100,116..RHD..3H197308-197408

FOR BN. GRAY,GRAY,TRIM1#

main74106-20010-05iRT100,116..RHD..3H197701-197808

FOR BN.BEIGE,BEIGE,TRIM4#

main74106-20010-06iRT100,116..RHD..3H197308-197408

FOR BN. OLIVE-BROWN,BROWN,TRIM4#

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-20020-01iRT10#,11#..RHD197701-197905

BLACK,BLACK,TRIM2#

main74102-20020-03iRT10#,11#..RHD197701-197905

GRAY,GRAY,TRIM1#

main74102-20020-05iRT10#,11#..RHD197701-197905

BEIGE,BEIGE,TRIM4#

main74102-20030-01iRT100,104,11#..LHD197701-197905

BLACK,BLACK,TRIM2#

main74102-20030-03iRT100,104,11#..LHD197701-197905

GRAY,GRAY,TRIM1#

main74102-20030-05iRT100,104,11#..LHD197701-197905

BEIGE,BEIGE,TRIM4#

main74108-20030-01iRT10#,112,114,116,117,118..RHD197308-197701

BLACK,BLACK,TRIM2#,8#

main74108-20030-03iRT10#,112,114,116,117,118..RHD197308-197408

GRAY,GRAY,TRIM1#

main74108-20030-06iRT10#,112,114,116,117,118..RHD197308-197701

OLIVE-BROWN,BROWN,TRIM4#

main74108-20040-01iRT10#,11#..LHD197308-197701

BLACK,BLACK,TRIM2#,8#

main74108-20040-03iRT100,102,110,112,116,117..LHD197308-197408

GRAY,GRAY,TRIM1#

main74108-20040-06iRT10#,11#..LHD197308-197701

OLIVE-BROWN,BROWN,TRIM4#

74130RECEPTACLE ASSY, REAR ASH

main74130-12010-03iRT100,102,110,112,116,117..LHD197308-197408

FOR SP.GRAY,GRAY,TRIM1#

main74130-12010-06iRT100,102,110,112,116,117..LHD197308-197408

FOR SP.OLIVE-BROWN,BROWN,TRIM4#

main74130-12010-11iRT10#,11#..LHD197308-197610

FOR SP.BLACK,BLACK,TRIM2#

main74130-20030-01iRT100..3H;RT116..RHD..3H197504-197808

FOR BN.BLACK,BLACK,TRIM2#

main74130-20030-03iRT100,116..RHD..3H197308-197408

FOR BN.GRAY,GRAY,TRIM1#

main74130-20030-05iRT100,116..RHD..3H197701-197808

FOR BN.BEIGE,BEIGE,TRIM4#

main74130-20030-06iRT100,116..RHD..3H197308-197408

FOR BN.OLIVE-BROWN,BROWN,TRIM4#

main74130-22020-01iRT100..LHD;RT100..RHD..4F;RT104,114,116,118;RT100..RHD..3H..DLX197610-197905

FOR SP.BLACK,BLACK,TRIM2#

main74130-22020-03iRT100..LHD;RT100..RHD..4F;RT104,114,116,118;RT100..RHD..3H..DLX197610-197905

FOR SP.GRAY,GRAY,TRIM1#

main74130-22020-05iRT100..LHD;RT100..RHD..4F;RT104,114,116,118;RT100..RHD..3H..DLX197610-197905

FOR SP.BEIGE,BEIGE,TRIM4#

main74130-22030-03iRT100,116..RHD197701-197808

FOR BN.GRAY,TRIM1#

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74109-12010iRT10#,11#..LHD197308-197701

FOR SP.

9016240001

main90162-40001

9016240003

main90162-40003

9016240016

main90162-40016

9354014010

main93540-14010

9 parts on this diagram · 1 diagram in section
