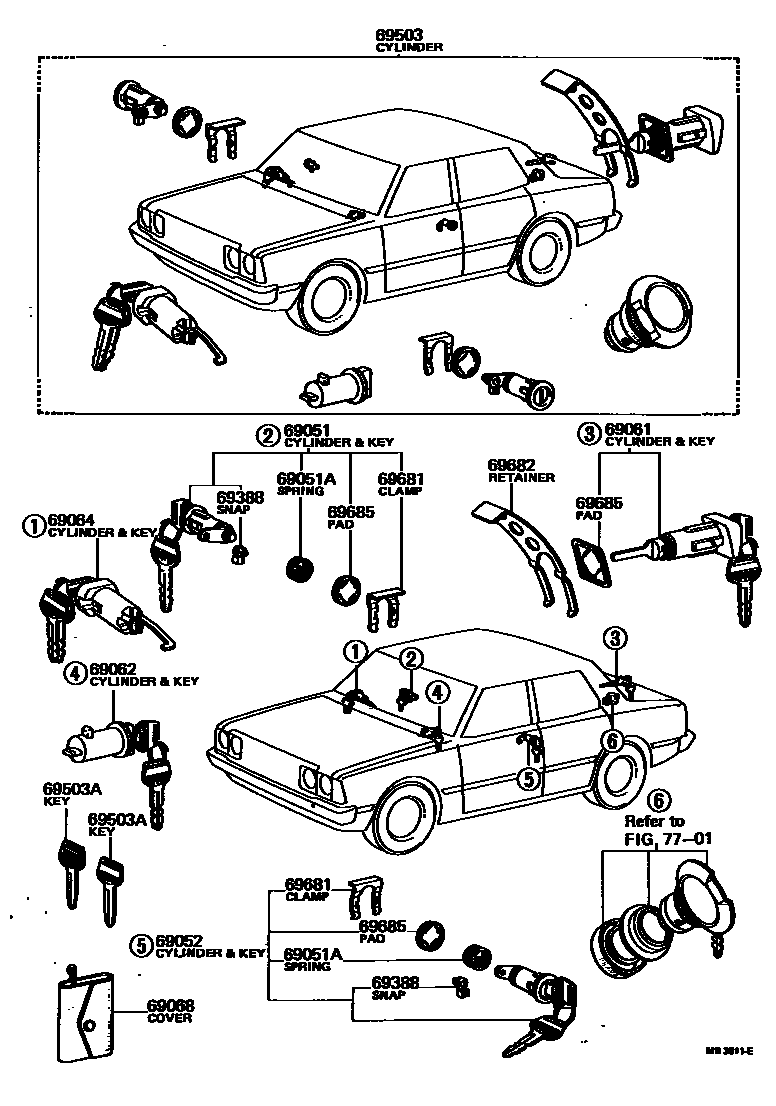

LOCK CYLINDER SET
69051ASPRING, DOOR LOCK CYLINDER
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
sub69057-25010
sub69064-87001
sub69057-20010
sub69064-87001
69068COVER SUB-ASSY, KEY
69388SNAP, ROD(FOR DOOR LOCK)
FOR BACK DOOR
FOR FRONT DOOR
69503CYLINDER SET, LOCK
W/FUEL CAP,GLOVE BOX KEY
W/FUEL CAP,GLOVE BOX KEY
L/FUEL CAP,GLOVE BOX KEY
W/FUEL CAP,L/GLOVE BOX KEY
W/FUEL CAP,GLOVE BOX KEY
W/FUEL CAP,GLOVE BOX KEY
L/FUEL CAP,GLOVE BOX KEY
W/FUEL CAP,L/GLOVE BOX KEY
L/FUEL CAP,GLOVE BOX KEY
L/FUEL CAP,W/GLOVE BOX KEY
W/FUEL CAP,GLOVE BOX KEY
W/FUEL CAP,L/GLOVE BOX KEY
W/FUEL KEY
W/FUEL KEY
L/FUEL & GLOVE BOX KEY
L/FUEL LOCK,W/GLOVE BOX LOCK
W/FUEL KEY & L/GLOVE BOX KEY
W/FUEL & GLOVE BOX KEY
69503AKEY, BLANK
MASTER KEY,FOR MASTER KEY
69682RETAINER, LOCK CYLINDER
69685PAD, LOCK CYLINDER
FOR LUGGAGE
FOR LUGGAGE
FOR FRONT DOOR
7701
14 parts on this diagram · 3 diagrams in section
