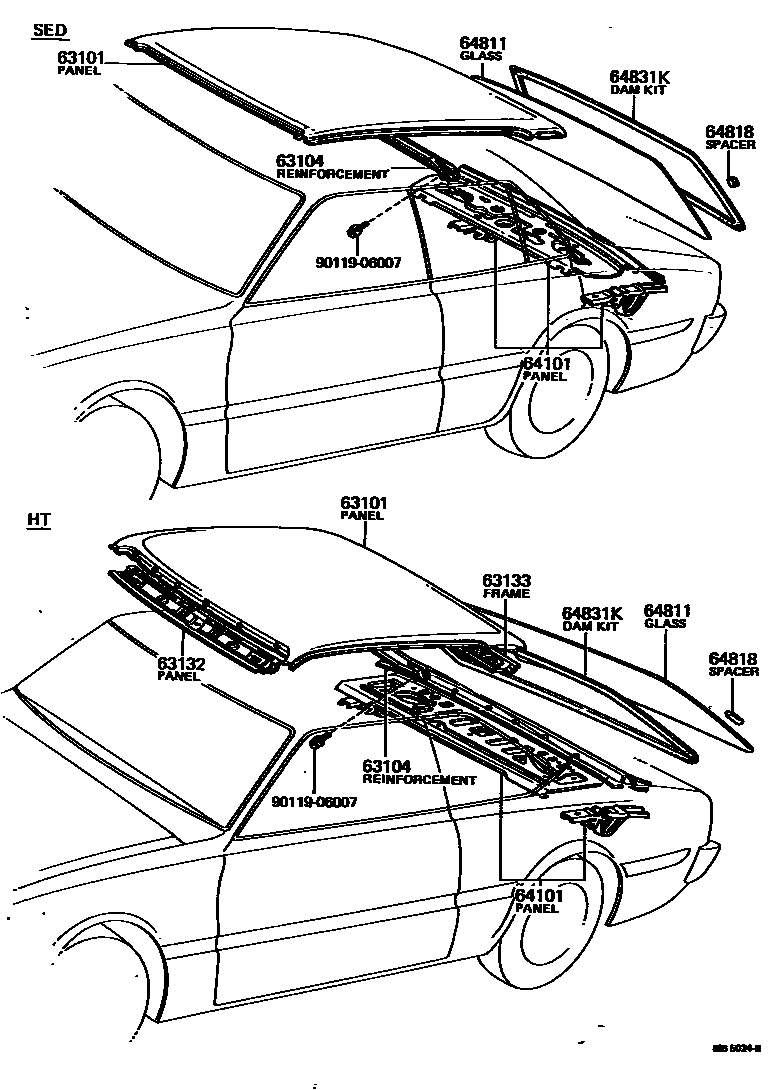

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63101PANEL SUB-ASSY, ROOF

main63101-20070iRT10#197308-197905

main63101-21010iRT116,117,118197308-197905

main63111-20070iRT110,112,114197308-197808

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63104-21010iRT110,112,114197308-197808

main63143-20060iRT10#197308-197905

63132PANEL, WINDSHIELD HEADER, INNER

main63132-20050iRT110,112,114197308-197808

63133FRAME, BACK WINDOW OPENING, UPPER

main63143-20050iRT110,112,114197308-197808

64101PANEL SUB-ASSY, UPPER BACK

main64101-20080iRT112,114197308-197808

main64101-20090iRT10#197308-197603

main64101-20100iRT10#197603-197712

main64101-20101iRT10#197712-197905

main64101-95504iRT110197407-197701

64811GLASS, BACK WINDOW

main64811-20170iRT110,112,114197308-197808

TN.TP.T=4.0

main64811-20200iRT100; RT102,104..LHD;RT102..RHD..STD..GEN197308-197509

TN.TP.T=4.0

main64811-20220iRT104..ARL197504-197610

TP.T=5.0

main64811-20240iRT100,104..LHD..STD197509-197610

ELECT.TP.T=4.0

main64811-20250iRT104..EUR197409-197509

ELECT.TN.TP.T=4.0

main64811-20260iRT114..GEN197509-197808

ELECT.TN.TP.T=4.0

main64811-20270iRT100..DLX;RT100..STD..PHL197509-197701

TN.TP.T=5.0

main64811-20280iRT104..LHD..STD..EUG197509-197701

ELECT.TP.T=4.0,ARCTIC

main64811-20290iRT102,104..LHD..EUR197502-197509

ELECT.TN.TP.T=4.0,ARCTIC

main64811-20300iRT10#..STD197509-197610

TP.T=4.0

64818SPACER, BACK WINDOW GLASS

main56116-20030×2iRT10#197308-197905

main56116-20040×2iRT110,112,114197308-197808

64831KDAM KIT, BACK WINDOW GLASS

main04562-30010iRT10#,110,112,114197308-197709

main04562-30020iRT10#,114197709-197905

9011906007

main90119-06007

9 parts on this diagram · 2 diagrams in section
