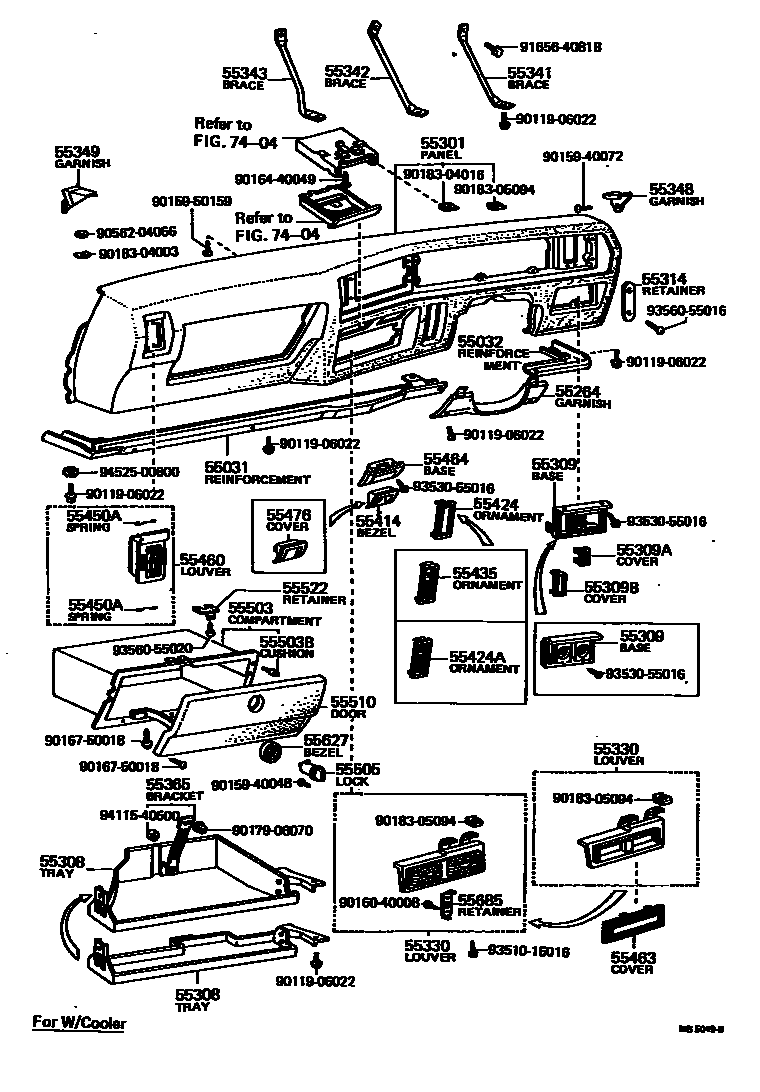

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

55031REINFORCEMENT, INSTRUMENT PANEL, NO.1

main55032-20010iRT10#,112,114,116,117,118..RHD197308-197701

main55032-20020iRT10#,11#..LHD197308-197701

main55305-20050iRT10#,11#..RHD197701-197905

main55305-20060iRT100,104,11#..LHD197701-197905

55032REINFORCEMENT, INSTRUMENT PANEL, NO.2

main55339-20040iRT10#,112,114,116,117,118..RHD197308-197701

main55339-20050iRT10#,11#..LHD197308-197701

55264GARNISH, STEERING COLUMN

main55264-20010-01iRT10#,112,114,116,117,118..RHD197308-197905

BLACK,BLACK,TRIM1#,2#,8#

sub55264-20010

main55264-20010-03iRT10#,112,114,116,117,118..RHD197308-197408

GRAY,GRAY,TRIM1#

sub55264-20010

main55264-20010-05iRT10#,11#..RHD197701-197905

BEIGE,BEIGE,TRIM4#

sub55264-20010

main55264-20010-06iRT10#,112,114,116,117,118..RHD197308-197701

OLIVE-BROWN,BROWN,TRIM4#

sub55264-20010

main55264-20010-13iRT10#,11#..RHD197701-197905

GRAY,GRAY,TRIM1#

sub55264-20010

main55264-20020-01iRT10#,11#..LHD197308-197905

BLACK,BLACK,TRIM1#,2#,8#

sub55264-20020

main55264-20020-03iRT100,102,110,112,116,117..LHD197308-197408

GRAY,GRAY,TRIM1#

sub55264-20020

main55264-20020-05iRT100,104,11#..LHD197701-197905

BEIGE,BEIGE,TRIM4#

sub55264-20020

main55264-20020-06iRT10#,11#..LHD197308-197701

OLIVE-BROWN,BROWN,TRIM4#

sub55264-20020

main55264-20020-13iRT100,104,11#..LHD197701-197905

GRAY

sub55264-20020

55301PANEL SUB-ASSY, INSTRUMENT

main55301-20140-01iRT10#,112,114,116,117,118..RHD197308-197701

BLACK,BLACK,TRIM1#,2#,8#

main55301-20140-03iRT10#,112,114,116,117,118..RHD197308-197408

GRAY,GRAY,TRIM1#

main55301-20140-06iRT10#,112,114,116,117,118..RHD197308-197701

OLIVE-BROWN,BROWN,TRIM4#

main55301-20150-01iRT10#,11#..LHD197308-197701

BLACK,BLACK,TRIM1#,2#,8#

main55301-20150-03iRT100,102,110,112,116,117..LHD197308-197408

GRAY,GRAY,TRIM1#

main55301-20150-06iRT10#,11#..LHD197308-197701

OLIVE-BROWN,BROWN,TRIM4#

main55311-20080-01iRT10#,11#..RHD197701-197905

BLACK,BLACK,TRIM1#,2#

main55311-20080-03iRT10#,11#..RHD197701-197905

GRAY,GRAY,TRIM1#

main55311-20080-05iRT10#,11#..RHD197701-197905

BEIGE,BEIGE,TRIM4#

main55311-20090-01iRT100,104,11#..LHD197701-197905

BLACK,BLACK,TRIM1#,2#

main55311-20090-03iRT100,104,11#..LHD197701-197905

GRAY,GRAY,TRIM1#

main55311-20090-05iRT100,104,11#..LHD197701-197905

BEIGE,BEIGE,TRIM4#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55308-20070iRT10#,112,114..RHD..DLX197308-197701

main55308-20070-01iRT100,104,114..RHD197701-197905

BLACK,BLACK,TRIM1#,2#

sub55308-20070

main55308-20070-05iRT100,104,114..RHD197701-197905

BEIGE,BEIGE,TRIM4#

sub55308-20070

main55308-20080iRT10#,110,112,114..LHD..DLX197308-197701

main55308-20080-01iRT100,104,114..LHD..DLX197701-197808

BLACK,BLACK,TRIM1#,2#

sub55308-20080

main55308-20080-05iRT100,104,114..LHD..DLX197701-197808

BEIGE,BEIGE,TRIM4#

sub55308-20080

main55308-20090iRT10#,112,114..RHD..DLX197308-197701

FOR W/COOLER

main55308-20090-01iRT10#,114..RHD197701-197905

FOR W/COOLER,BLACK,BLACK,TRIM1#,2#

sub55308-20090

main55308-20090-05iRT10#,114..RHD197701-197905

FOR W/COOLER,BEIGE,BEIGE,TRIM4#

sub55308-20090

55309BASE SUB-ASSY, SWITCH

main55309-20030iRT10#,11#197308-197408

sub55309-20031

main55309-20031iRT10#,11#197408-197701

main55309-20031-01iRT10#,11#197701-197905

BLACK,BLACK,TRIM2#

sub55309-20031

main55309-20031-03iRT10#,11#197701-197905

GRAY,GRAY,TRIM1#

sub55309-20031

main55309-20031-05iRT10#,11#197701-197905

BEIGE,BEIGE,TRIM4#

sub55309-20031

55309ACOVER, BASE SWITCH HOLE, NO.1

main55384-20010iRT10#,11#197308-197408

sub55384-20011

main55384-20011iRT10#,11#197408-197701

main55384-20011-01iRT118..EUG;RT10#,114,116;RT118..ARL,GEN197701-197905

BLACK,BLACK,TRIM2#

sub55384-20011

main55384-20011-05iRT118..3FC;RT10#,114,116;RT118..EUR,GEN197701-197905

BEIGE,BEIGE,TRIM4#

sub55384-20011

55309BCOVER, BASE SWITCH HOLE, NO.2

main55385-20010iRT10#,11#197308-197408

sub55385-20011

main55385-20011iRT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA197408-197905

55314RETAINER, INSTRUMENT PANEL SIDE

main55341-20020iRT10#,11#197308-197701

55330LOUVER ASSY, CENTER VENTILATOR

main55460-20030-01iRT10#,112,114,116,117,118..RHD197308-197509

FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8#

sub55460-20031

main55460-20030-03iRT10#,112,114,116,117,118..RHD197308-197408

FOR W/HEATER,GRAY,GRAY,TRIM1#

sub55460-20031

main55460-20030-06iRT10#,112,114,116,117,118..RHD197308-197509

FOR W/HEATER,OLIVE-BROWN,BROWN,TRIM4#

sub55460-20031

main55460-20031-01iRT10#,114,116,118..RHD197509-197701

FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8#

main55460-20031-06iRT10#,114,116,118..RHD197509-197701

FOR W/HEATER,OLIVE-BROWN,BROWN,TRIM4#

main55460-20032-01iRT100,104,11#..RHD197701-197905

FOR W/HEATER,BLACK,BLACK,TRIM1#,2#

main55460-20032-03iRT100,104,11#..RHD197701-197905

FOR W/HEATER,GRAY,GRAY,TRIM1#

main55460-20032-05iRT100,104,11#..RHD197701-197905

FOR W/HEATER,BEIGE,BEIGE,TRIM4#

main55460-20040-01iRT10#,110,112,116,117,118..LHD197308-197509

FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8#

sub55460-20041

sub55460-20040

main55460-20040-03iRT100,102,110,112,116,117..LHD197308-197408

FOR W/HEATER,GRAY,GRAY,TRIM1#

sub55460-20041

sub55460-20040

main55460-20040-06iRT10#,110,112,116,117,118..LHD197308-197509

FOR W/HEATER,OLIVE-BROWN,BROWN,TRIM4#

sub55460-20041

sub55460-20040

main55460-20041-01iRT100,104,11#..LHD197509-197701

FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8#

sub55460-20041

main55460-20041-06iRT100,104,11#..LHD197509-197701

FOR W/HEATER,BROWN,BROWN,TRIM4#

sub55460-20041

main55460-20042-01iRT100,104,11#..LHD197701-197905

FOR W/HEATER,BLACK,BLACK,TRIM1#,2#

sub55460-20042

main55460-20042-03iRT100,104,11#..LHD197701-197905

FOR W/HEATER,GRAY,GRAY,TRIM1#

sub55460-20042

main55460-20042-05iRT100,104,11#..LHD197701-197905

FOR W/HEATER,BEIGE,BEIGE,TRIM4#

sub55460-20042

main55460-20050-01iRT10#,116,117,118..RHD..STD197308-197701

FOR L/HEATER,BLACK,BLACK,TRIM1#,2#,8#

main55460-20050-03iRT100,102,116,117..RHD..STD197308-197408

FOR L/HEATER,GRAY,GRAY,TRIM1#

main55460-20050-06iRT10#,116,117,118..RHD..STD197308-197701

FOR L/HEATER,OLIVE-BROWN,BROWN,TRIM4#

main55460-20051-01iRT100,104,116,118..RHD197701-197808

FOR L/HEATER,BLACK,BLACK,TRIM1#,2#

main55460-20051-03iRT100,104,116,118..RHD197701-197808

FOR L/HEATER,GRAY,GRAY,TRIM1#

main55460-20051-05iRT100,104,116,118..RHD197701-197808

FOR L/HEATER,BEIGE,BEIGE,TRIM4#

main55460-20060-01iRT10#,116,117,118..LHD..STD197308-197701

FOR L/HEATER,BLACK,BLACK,TRIM1#,2#,8#

sub55460-20060

main55460-20060-03iRT100,102,116,117..LHD..STD197308-197408

FOR L/HEATER,GRAY,GRAY,TRIM1#

sub55460-20060

main55460-20060-06iRT10#,116,117,118..LHD..STD197308-197701

FOR L/HEATER,OLIVE-BROWN,BROWN,TRIM4#

sub55460-20060

main55460-20061-01iRT100,104,116,118..LHD197701-197905

FOR L/HEATER,BLACK,BLACK,TRIM1#,2#

sub55460-20061

main55460-20061-03iRT100,104,116,118..LHD197701-197905

FOR L/HEATER,GRAY,GRAY,TRIM1#

sub55460-20061

main55460-20061-05iRT100,104,116,118..LHD197701-197905

FOR L/HEATER,BEIGE,BEIGE,TRIM4#

sub55460-20061

55341BRACE, INSTRUMENT PANEL, NO.1

main55727-20020iRT10#,112,114,116,117,118..RHD197308-197701

main55727-20030iRT10#,11#..LHD197308-197701

55342BRACE, INSTRUMENT PANEL, NO.2

main55728-20010iRT10#,112,114,116,117,118..RHD197308-197905

main55728-20020iRT10#,11#..LHD197308-197905

55343BRACE, INSTRUMENT PANEL, NO.3

main55344-20040iRT10#,11#..RHD197701-197905

main55344-20050iRT100,104,11#..LHD197701-197905

main55729-20010iRT10#,11#197308-197701

55348GARNISH, INSTRUMENT PANEL SIDE, RH

main55348-20020-01iRT10#,112,114,116,117,118..RHD197308-197512

BLACK,BLACK,TRIM1#,2#,8#

sub55348-20020

main55348-20020-01iRT102,104,114..SA197512-197905

BLACK,BLACK,TRIM1#,2#

sub55348-20020

main55348-20020-06iRT102,104,114..SA197308-197905

OLIVE-BROWN,BROWN,TRIM4#

sub55348-20020

main55348-20030-01iRT10#,11#..LHD197308-197512

BLACK,BLACK,TRIM1#,2#,8#

sub55348-20030

main55348-20030-06iRT10#,11#..LHD197308-197512

OLIVE-BROWN,BROWN,TRIM4#

sub55348-20030

55349GARNISH, INSTRUMENT PANEL SIDE, LH

main55349-20020-01iRT102,104,114..SA197512-197905

BLACK,BLACK,TRIM1#,2#

sub55349-20020

main55349-20020-01iRT10#,112,114,116,117,118..RHD197308-197512

BLACK,BLACK,TRIM1#,2#,8#

sub55349-20020

main55349-20020-06iRT10#,112,114,116,117,118..RHD197308-197905

OLIVE-BROWN,BROWN,TRIM4#

sub55349-20020

main55349-20030-01iRT10#,11#..LHD197308-197512

BLACK,BLACK,TRIM1#,2#,8#

main55349-20030-06iRT10#,11#..LHD197308-197512

OLIVE-BROWN,BROWN,TRIM4#

55365BRACKET, INSTRUMENT PANEL UNDER TRAY

main55365-20050iRT10#,110,112,114..DLX197308-197905

55414BEZEL, CIGAR LIGHTER HOLE

main55414-20040iRT10#,11#197308-197701

main55477-20030iRT100,104,11#..ARL,EUR,GEN,SA197701-197905

55424ORNAMENT, CHOKE CONTROL

main55429-20020iRT10#,110,112,116,117,118..EUR,GEN,PHL197308-197509

main55429-20020-01iRT100,104,11#..EUR,GEN,PHL197509-197701

BLACK,BLACK,TRIM2#

sub55429-20020

main55429-20020-06iRT100,104,11#..LHD197509-197701

BROWN,BROWN,TRIM4#

sub55429-20020

55424AORNAMENT, CHOKE CONTROL

main55424-20040iRT100,110,116197509-197701

55435ORNAMENT, LIGHT CONTROL

main55433-20030iRT102,104,114,118..ARL,SA197308-197701

55450LOUVER ASSY, SIDE VENTILATOR, RH

main55061-20010iRT10#,11#..RHD197701-197905

main55065-20010iRT10#,112,114,116,117,118..RHD197308-197509

main55065-20020iRT10#,114,116,118..RHD197509-197701

sub55065-20030

main55450-20123iRT100,104,11#..LHD197701-197905

main55450-20130iRT100,102,112,116,117..LHD197308-197407

sub55450-20131

main55450-20131iRT10#,110,112,116,117,118..LHD197407-197509

sub55450-20132

main55450-20132iRT100,104,11#..LHD197509-197701

55450ASPRING, SIDE VENTILATOR LOUVER

main55426-20020iRT10#,11#197308-197701

55460LOUVER ASSY, SIDE VENTILATOR, LH

main55061-20010iRT100,104,11#..LHD197701-197905

main55065-20010iRT10#,110,112,116,117,118..LHD197308-197509

main55065-20040iRT100,104,11#..LHD197509-197701

sub55065-20030

main55445-20901iRT10#,11#..RHD197308-197407

sub55450-20121

main55450-20121iRT10#,112,114,116,117,118..RHD197407-197509

sub55450-20122

main55450-20122iRT10#,114,116,118..RHD197509-197701

main55450-20123iRT10#,11#..RHD197701-197905

55463COVER, CENTER VENTILATOR

main55471-20040iRT100,104,116,118..RHD197701-197808

main55471-20040-01iRT100,104,116,118..STD197308-197701

BLACK,BLACK,TRIM2#

sub55471-20040

main55471-20040-03iRT100,102..STD197308-197408

GRAY,GRAY,TRIM1#

sub55471-20040

main55471-20040-06iRT100,102,116,117..STD197308-197509

OLIVE-BROWN,BROWN,TRIM4#

sub55471-20040

main55471-20040-06iRT100,104,116,118..STD197509-197701

BROWN,BROWN,TRIM4#

sub55471-20040

55464BASE, CIGARETTE LIGHTER

main55444-20040-01iRT10#,11#..RHD197701-197905

BLACK,BLACK,TRIM1#,2#

main55444-20040-03iRT10#,11#..RHD197701-197905

GRAY,GRAY,TRIM1#

main55444-20040-05iRT10#,11#..RHD197701-197905

BEIGE,BEIGE,TRIM4#

main55444-20050-01iRT100,104,11#..LHD197701-197905

BLACK,BLACK,TRIM1#,2#

sub55444-20050

main55444-20050-03iRT100,104,11#..LHD197701-197905

GRAY,GRAY,TRIM1#

sub55444-20050

main55444-20050-05iRT100,104,11#..LHD197701-197905

BEIGE,BEIGE,TRIM4#

sub55444-20050

main55474-20020-01iRT10#,112,114,116,117,118..RHD197308-197701

BLACK,BLACK,TRIM1#,2#,8#

main55474-20020-03iRT10#,112,114,116,117,118..RHD197308-197408

GRAY,GRAY,TRIM1#

main55474-20020-06iRT10#,112,114,116,117,118..RHD197308-197701

OLIVE-BROWN,BROWN,TRIM4#

main55474-20030-01iRT10#,11#..LHD197308-197701

BLACK,BLACK,TRIM1#,2#,8#

sub55474-20030

main55474-20030-03iRT100,102,110,112,116,117..LHD197308-197408

GRAY,GRAY,TRIM1#

sub55474-20030

main55474-20030-06iRT10#,11#..LHD197308-197701

OLIVE-BROWN,BROWN,TRIM4#

sub55474-20030

55476COVER, CIGARETTE LIGHTER HOLE

main55407-20050iRT10#,116,117,118..STD197308-197701

main55477-10010iRT100,104,116,118..STD197701-197905

55503COMPARTMENT SUB-ASSY, GLOVE

main55531-20120iRT10#,112,114..RHD..DLX197308-197701

FOR W/LAMP HOLE

main55531-20130iRT10#,110,112..LHD..DLX197308-197701

FOR W/LAMP HOLE

main55531-20140iRT10#,116,117,118..RHD..STD197308-197701

FOR L/LAMP HOLE

main55531-20150iRT10#,116,117,118..LHD..STD197308-197701

FOR W/LAMP HOLE

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03078iRT10#,11#197701-197905

main90541-04142iRT10#,11#197308-197701

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55520-14010iRT10#,116,117,118..STD197308-197503

sub55520-14011

main55520-14011iRT10#,116,117,118..STD197503-197701

main55560-20010iRT100,104,116,118..STD197701-197905

55510DOOR ASSY, GLOVE COMPARTMENT

main55510-20270-01iRT10#,112,114,116,117,118..RHD197308-197701

BLACK,BLACK,TRIM1#,2#,8#

main55510-20270-03iRT10#,112,114,116,117,118..RHD197308-197408

GRAY,GRAY,TRIM1#

main55510-20270-06iRT10#,112,114,116,117,118..RHD197308-197701

OLIVE-BROWN,BROWN,TRIM4#

main55510-20280-01iRT10#,11#..LHD197308-197701

BLACK,BLACK,TRIM1#,2#,8#

sub55510-20280

main55510-20280-03iRT100,102,110,112,116,117..LHD197308-197408

GRAY,GRAY,TRIM1#

sub55510-20280

main55510-20280-06iRT10#,11#..LHD197308-197701

OLIVE-BROWN,BROWN,TRIM4#

sub55510-20280

main55550-20010-01iRT10#,11#..RHD197701-197905

BLACK,BLACK,TRIM1#,2#

main55550-20010-03iRT10#,11#..RHD197701-197905

GRAY,GRAY,TRIM1#

main55550-20010-05iRT10#,11#..RHD197701-197905

BEIGE,BEIGE,TRIM4#

main55550-20020-01iRT100,104,11#..LHD197701-197905

BLACK,BLACK,TRIM1#,2#

sub55550-20020

main55550-20020-03iRT100,104,11#..LHD197701-197905

GRAY,GRAY,TRIM1#

sub55550-20020

main55550-20020-05iRT100,104,11#..LHD197701-197905

BEIGE,BEIGE,TRIM4#

sub55550-20020

55522RETAINER, GLOVE COMPARTMENT MALE

main55521-20050iRT10#,11#197308-197701

main55561-20040iRT10#,11#197701-197905

55627BEZEL, GLOVE COMPARTMENT DOOR LOCK

main55627-30011iRT10#,11#197308-197701

55685RETAINER,AIR GUIDE BLADE CASE, CENTER NO.1

main55697-20010iRT10#,11#197308-197701

7404

9011906022

main90119-06022

9015940048

main90159-40048

9015940072

main90159-40072

9015950159

main90159-50159

9016040008

main90160-40008

9016440049

main90164-40049

9016750018

main90167-50018

9017906070

main90179-06070

9018304003

main90183-04003

9018304016

main90183-04016

9018305094

main90183-05094

9056204066

main90562-04066

9165640818

main91656-40818

9351015016

main93510-15016

9353055016

main93530-55016

9356055016

main93560-55016

9356055020

main93560-55020

9411540500

main94115-40500

9452500600

main94525-00600

53 parts on this diagram · 8 diagrams in section
