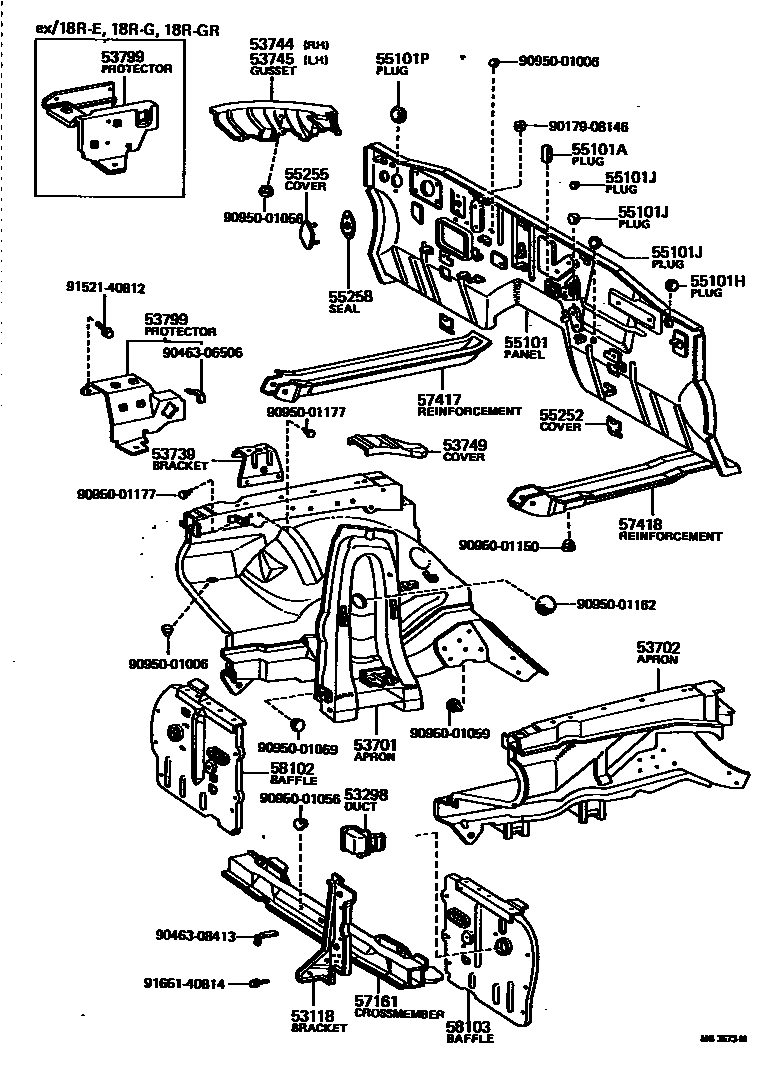

FRONT FENDER APRON & DASH PANEL

53118BRACKET, RADIATOR GRILLE SUPPORT, LH

main53167-20010iRT10#,11#197308-197701

main53167-20011iRT10#,11#197701-197905

53298DUCT, COOL AIR INTAKE

main53207-20010iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197701-197905

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20902iRT10#,112,114,116,117,118..RHD197308-197512

main53701-20903iRT116..PHL;RT116..LHD..3H;RT110,114,118..LHD197609-197701

main53701-20904iRT104,118..ARL,SA197609-197701

main53701-20905iRT118..LHD..GEN;RT118..LHD..EUG;RT100,104,116..LHD197609-197701

sub53701-20908

main53701-20906iRT118..3FC;RT116,118..RHD..(EUR,GEN)197609-197701

main53701-20907iRT10#,11#..RHD197701-197905

main53701-20910iRT100,104,11#..LHD197701-197905

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20902iRT104,118..ARL,SA197609-197701

main53702-20903iRT10#,11#..LHD197308-197609

main53702-20905iRT118..LHD..GEN;RT118..LHD..EUG;RT100,104,116..LHD197609-197701

sub53702-20914

main53702-20906iRT118..3FC;RT116,118..RHD..(EUR,GEN)197609-197701

main53702-20909iRT102,104,114,118..RHD197701-197905

main53702-20911iRT116..RHD;RT100..RHD..4F;RT100..RHD..3H..DLX197701-197808

main53702-20912iRT100,116..LHD;RT100..RHD..3H..STD197701-197808

main53702-20913iRT104,114,118..LHD197701-197905

53739BRACKET, BATTERY SUPPORT

main53739-20040iRT10#,11#197308-197905

53744GUSSET, FENDER APRON CENTER, RH

main53744-20020iRT10#,11#197308-197905

53745GUSSET, FENDER APRON CENTER, LH

main53745-20020iRT10#,11#197308-197905

53749COVER, FENDER APRON STEERING GEAR BOX

main53749-20020iRT10#,112,114,116,117,118..RHD197308-197701

main53749-20021iRT10#,11#..RHD197701-197905

53799PROTECTOR, FENDER APRON WIRE HARNESS

main53709-20010iRT10#,11#197308-197509

main53797-20020iRT10#,11#197509-197604

main53797-20021iRT10#,11#197604-197701

55101PANEL SUB-ASSY, DASH

main55101-20210iRT10#,112,114,116,117,118..RHD197308-197509

main55101-20211iRT10#,114,116,118..RHD197509-197701

main55101-20212iRT10#,11#..RHD197701-197905

main55101-20220iRT100,102,110,112,116,117..LHD197308-197408

sub55101-20221

main55101-20240iRT10#,110,112,116,117,118..LHD197408-197509

main55101-20241iRT100,104,11#..LHD197509-197905

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main90950-01047iRT10#,11#197308-197905

FOR L/HEATER,OD=60X30

55101HPLUG, HOLE, NO.2(FOR DASH PANEL)

main90950-01060iRT10#,11#197308-197905

sub90950-01866

55101JPLUG, HOLE, NO.3(FOR DASH PANEL)

main90950-01060×2iRT10#,11#197308-197905

FOR L/COOLER,OD=26

sub90950-01866

main90950-01061iRT10#,11#197601-197905

FOR L/COOLER,OD=36

sub90950-01872

main90950-01167iRT10#,11#197308-197601

FOR L/COOLER,OD=42

main90950-01168iRT10#,11#197308-197601

FOR L/COOLER,OD=52

55101PPLUG, HOLE, NO.4(FOR DASH PANEL)

main90950-01169iRT10#,11#197308-197510

OD=47

55252COVER, DASH PANEL HOLE

main55256-20010×2iRT10#,11#197308-197905

55255COVER, CLUTCH MASTER CYLINDER HOLE

main55255-22010iRT102,104,112,114,118..RHD..3FC197411-197701

main55255-22020iRT102,104,112,114..LHD..3FC197411-197701

55258SEAL, CLUTCH MASTER CYLINDER HOLE

main55258-20010iRT102,104,112,114,118..3FC197308-197701

57161CROSSMEMBER, FRONT

main57104-20050iRT10#,11#197308-197905

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20010iRT10#,11#197308-197701

sub57417-20012

main57417-20011iRT10#,11#197701-197905

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20010iRT10#,11#197308-197409

main57418-20013iRT10#,11#197701-197706

main57418-20014iRT10#,11#197706-197905

sub57418-20015

main57418-20900iRT10#,11#197409-197508

sub57506-20012

main57506-20010iRT10#,110,114,116,118197508-197701

sub57506-20012

58102BAFFLE SUB-ASSY, RADIATOR SIDE, RH

main53202-20010iRT10#,11#197701-197905

main53211-20901iRT10#,11#197308-197508

main53211-20902iRT10#,11#197508-197701

58103BAFFLE SUB-ASSY,RADIATOR SIDE, LH

main53203-20020iRT104,118..EUG;RT102,104,114,118..ARL,GEN,SA197701-197905

main53203-20030iRT116197701-197808

main53212-20901iRT10#,11#197308-197508

main53212-20902iRT10#,11#197508-197701

9017908146

main90179-08146

9046306506

main90463-06506

9046308413

main90463-08413

9095001006

main90950-01006

9095001056

main90950-01056

9095001059

main90950-01059

9095001150

main90950-01150

9095001162

main90950-01162

9095001177

main90950-01177

9152140812

main91521-40812

9165140814

main91651-40814

33 parts on this diagram · 1 diagram in section
