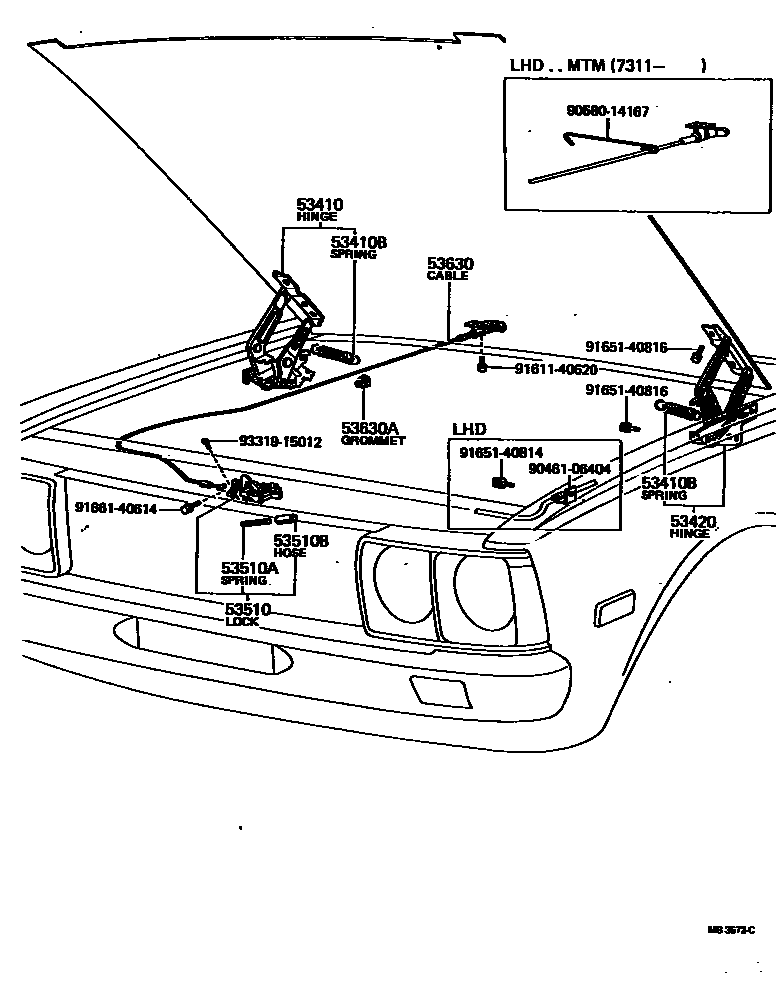

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-20040iRT10#,11#197308-197905

53410BSPRING, TENSION(FOR HOOD HINGE)

main90506-45001iRT10#,11#197602-197905

main90506-48440iRT10#,11#197308-197602

53420HINGE ASSY, HOOD, LH

main53420-20040iRT10#,11#197308-197905

53510LOCK ASSY, HOOD

main53510-20070iRT10#,11#..RHD197701-197708

main53510-20071iRT10#,11#..RHD197708-197905

main53510-20080iRT100,104,11#..LHD197701-197708

main53510-20081iRT100,104,11#..LHD197708-197905

main53510-22031iRT10#,112,114,116,117,118..RHD197308-197701

main53510-22041iRT10#,11#..LHD197308-197701

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-10196iRT10#,11#197308-197701

main90506-10487iRT10#,11#197701-197905

ID=8

main90506-16013iRT10#,11#197701-197905

ID=12

53510BHOSE(FOR HOOD LOCK)

main90446-12209iRT10#,11#197308-197510

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-20100iRT10#,11#197701-197708

main53630-20101iRT10#,11#197708-197905

main53630-22040iRT10#,11#197308-197410

main53630-22041iRT10#,11#197410-197701

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main82819-12020iRT10#,112,114,116,117,118..RHD197308-197905

main90480-15001iRT100,104,11#..LHD197701-197905

main90480-15194iRT10#,11#..LHD197308-197701

9046106404

main90461-06404

9058014167

main90580-14167

9161140620

main91611-40620

9165140814

main91651-40814

9165140816

main91651-40816

9166140614

main91661-40614

9331915012

main93319-15012

15 parts on this diagram · 1 diagram in section
