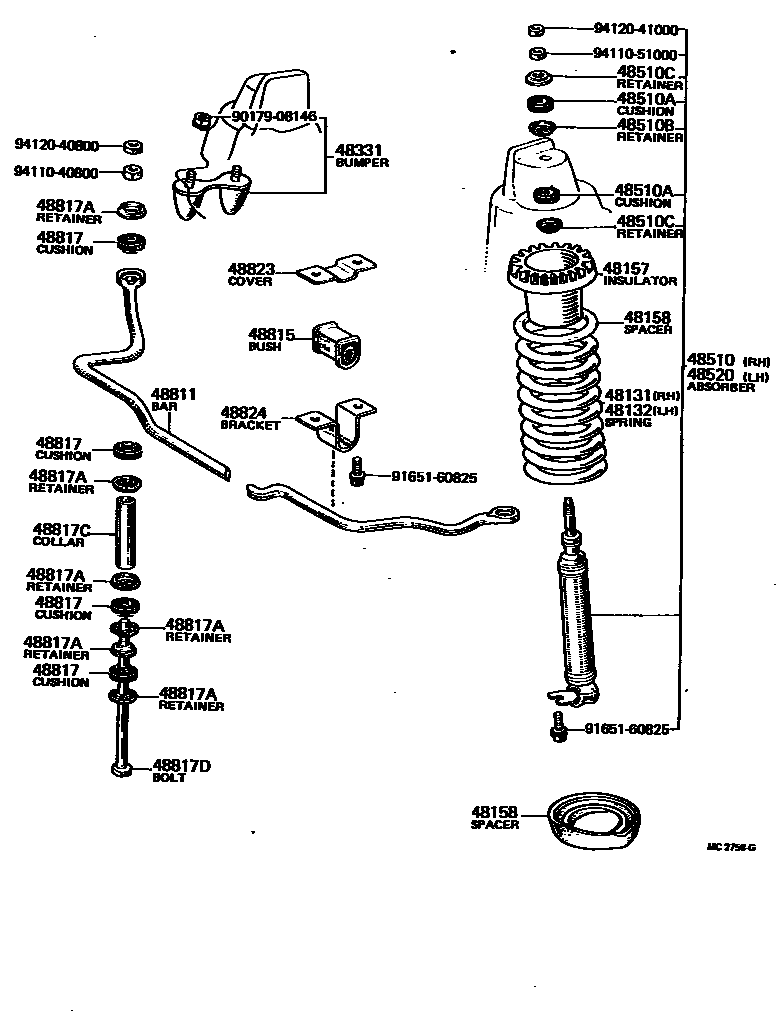

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-20201iRT117..EUG197401-197407

sub48131-20380

main48131-20221iRT100197509-197512

main48131-20222iRT100197512-197905

main48131-20240iRT116197401-197509

main48131-20241iRT116197509-197512

main48131-20242iRT116197512-197808

main48131-20261iRT112..LHD197308-197509

sub48131-22051

main48131-20271iRT102..STD197505-197509

main48131-20272iRT110197512-197701

main48131-20281iRT104..DLX197411-197505

sub48131-22300

main48131-20291iRT104,114..GEN,SA197509-197905

sub48131-22190

main48131-20350iRT104..EUR197509-197808

sub48131-22051

48132SPRING, FRONT COIL, LH

main48131-20201iRT118197308-197401

sub48131-20380

main48131-20221iRT100197411-197509

main48131-20222iRT100197512-197905

main48131-20240iRT116197401-197509

main48131-20241iRT116197509-197512

main48131-20242iRT116197512-197808

main48131-20261iRT112..LHD197308-197509

sub48131-22051

main48131-20271iRT102..STD197505-197509

main48131-20272iRT110197512-197701

main48131-20281iRT102..SA;RT102..RHD..4F..DLX..GEN197308-197411

sub48131-22300

main48131-20291iRT104,114..GEN,SA197509-197905

sub48131-22190

main48131-20350iRT104..EUR197509-197808

sub48131-22051

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-20020×2iRT10#,11#197308-197905

48158SPACER, FRONT COIL SPRING

main48158-20020×2iRT10#,11#197509-197701

FOR COOLER,T=7.0,UPPER

main48158-20030×2iRT104,118..EUG;RT100,104,11#..ARL,GEN,PHL,SA197701-197905

FOR COOLER & BOOST VENTILATOR

48331BUMPER, FRONT SPRING, NO.1

main48331-29025×2iRT10#,11#197308-197905

48510ABSORBER ASSY, SHOCK, FRONT RH

main48500-29115iRT10#,11#197308-197410

main48500-29116iRT116;RT10#,114,118..ARL,EUR,GEN,SA197701-197905

main48500-29175iRT100197701-197808

TAXI SPEC.

sub48500-29176

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01002×4iRT10#,11#197308-197905

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02034×2iRT10#,11#197308-197905

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02031×4iRT10#,11#197308-197905

48520ABSORBER ASSY, SHOCK, FRONT LH

main48500-29115iRT10#,11#197308-197410

main48500-29116iRT10#,11#197410-197701

main48500-29175iRT100197701-197808

TAXI SPEC.

sub48500-29176

48811BAR, STABILIZER, FRONT

main48811-20120iRT100197308-197808

main48811-20130iRT104,118..ARL197406-197411

main48811-20140iRT102,104,11#197308-197406

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20030×2iRT102,104,114,116..ARL,GEN,PHL,SA197807-197905

main48815-20060×2iRT104..EUR197807-197808

main48815-20080×2iRT102,104..EUR197505-197807

main48815-20090×2iRT100197308-197808

main48815-20100×2iRT102,104,110,114,116..ARL,GEN,PHL,SA197509-197807

48817CUSHION, FRONT STABILIZER

main48817-30010×8iRT10#,11#197308-197905

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02015×4iRT10#,11#197308-197905

ID=17.5

main90948-02032×8iRT10#,11#197308-197905

ID=9

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09115×2iRT10#,11#197308-197905

48817DBOLT(FOR FRONT STABILIZER)

main90101-08458×2iRT10#,11#197308-197905

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-20040×2iRT10#,11#197308-197905

48824BRACKET, STABILIZER, FRONT

main48824-20030×2iRT10#,11#197308-197905

9017908146

main90179-08146

9165160825

main91651-60825

9411040800

main94110-40800

9411051000

main94110-51000

9412040800

main94120-40800

9412041000

main94120-41000

24 parts on this diagram · 1 diagram in section
