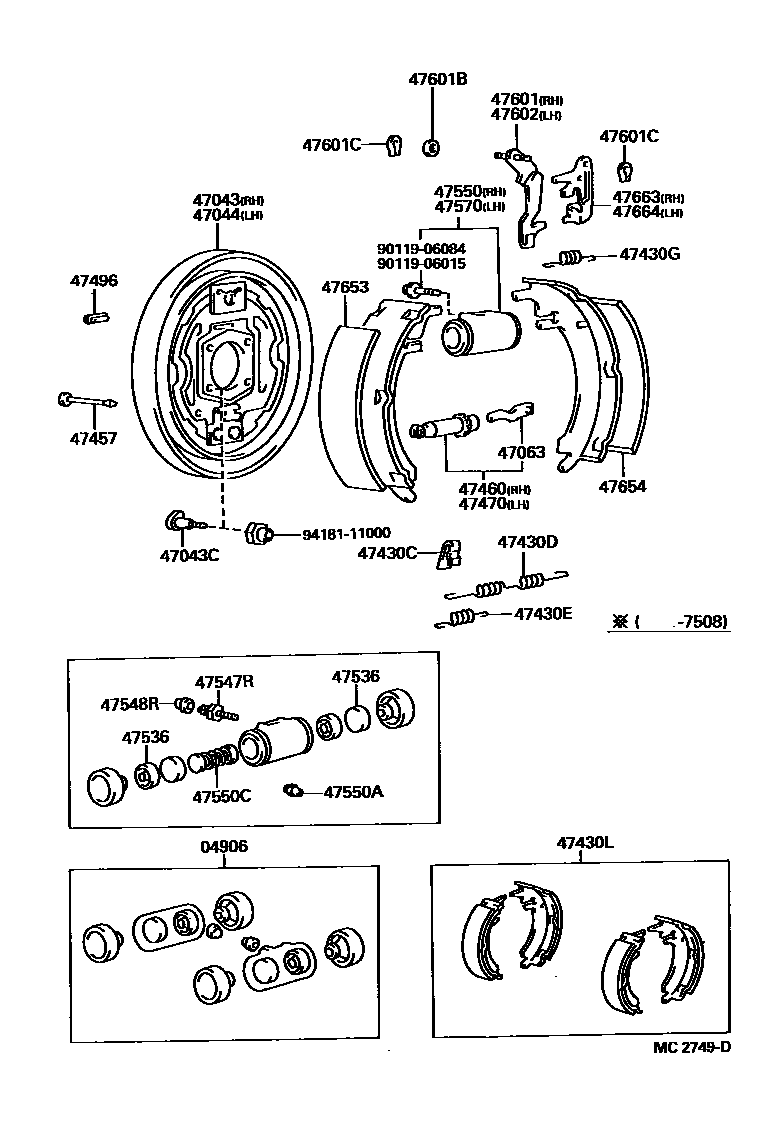

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12030iRT116..PHL197512-197605

FOR FRONT DRUM

main04906-12040iRT100,104,114,116,118197509-197605

TAXI SPEC. & FRONT DISC

main04906-14020iRT102,104,114,118..ARL,SA197308-197905

main04906-20050iRT104..LHD..4F..STD197509-197905

EXCEPT EUROPE

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20050iRT10#,11#197308-197905

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iRT10#,11#197308-197905

*10-1.25PX37-15

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20050iRT10#,11#197308-197905

47063PIECE SUB-ASSY, PARKING BRAKE SHOE

main47477-14010×2iRT10#,11#197308-197905

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10010×4iRT10#,11#197308-197905

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375×2iRT10#,11#197308-197905

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iRT10#,11#197308-197905

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iRT100,104,11#..EUR,GEN,PHL197701-197905

FRONT DISC

main90506-12310×2iRT100,116..GEN197701-197808

FRONT DRUM

47430LSHOE KIT, REAR BRAKE

main04495-20030iRT100,116197308-197403

main04495-20031iRT100,116197403-197605

FRONT DRUM

sub04495-20032

main04495-20050iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197605

FRONT DISC

sub04495-20051

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-11010×4iRT10#,11#197308-197905

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iRT10#,11#197308-197905

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iRT10#,11#197308-197905

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iRT10#,11#197308-197905

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iRT102,104,114,118..ARL,SA197308-197905

main47051-22030×4iRT100..DLX..PHL197512-197605

FOR FRONT DRUM

sub47051-22031

main47051-22040×4iRT100..GEN;RT100..STD..PHL197509-197605

TAXI SPEC.

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iRT10#,11#197308-197905

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iRT10#,11#197308-197905

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-29075iRT102,104,114,118..ARL,SA197308-197905

ID=22.22

sub47550-19145

main47550-29105iRT100..GEN197605-197701

FOR FRONT DRUM

sub47550-29106

main47550-29115iRT100,104,114,116,118..EUR,GEN197509-197605

TAXI SPEC. & FRONT DISC

sub47550-19135

47550ASEAT, UNION(FOR REAR WHEEL BRAKE CYLINDER)

main90410-03015×2iRT10#,11#197308-197508

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010×2iRT100..DLX..PHL197512-197605

FOR FRONT DRUM

main47509-12020×2iRT100,104,11#..EUR,GEN,PHL197706-197905

main47509-20010×2iRT102,104,114,118..ARL,SA197308-197905

main47509-22010×2iRT100,104,114,116,118..EUR,GEN197509-197605

TAXI SPEC. & FRONT DISC

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-29075iRT102,104,114,118..ARL,SA197308-197905

ID=22.22

sub47550-19145

main47550-29105iRT102,112,116,117..GEN,PHL197308-197605

FOR FRONT DRUM

sub47550-29106

main47550-29115iRT100,104,114,116,118..EUR,GEN197509-197605

TAXI SPEC. & FRONT DISC

sub47550-19135

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iRT10#,11#197308-197905

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iRT10#,11#197308-197905

T=0.3,T=0.285-0.315

main90564-08151iRT10#,11#197308-197905

T=0.6,T=0.570-0.630

main90564-08152iRT10#,11#197308-197905

T=0.9,T=0.855-0.945

main90564-08172×2iRT10#,11#197308-197905

T=0.2,T=0.19-0.21

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iRT10#,11#197308-197905

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iRT10#,11#197308-197905

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-22020×2iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197605

FRONT DISC

main47655-20130×2iRT100,116197308-197403

FRONT DRUM

main47655-20131×2iRT100,116197403-197605

FRONT DRUM

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-22020×2iRT10#,112,114,116,117,118..ARL,EUR,GEN,SA197308-197605

FRONT DISC

main47655-20130×2iRT100,116197308-197403

FRONT DRUM

main47655-20131×2iRT104..LHD..4F..STD..GEN197605-197905

FRONT DRUM

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-14021iRT102,104,114,118..ARL,SA197701-197905

FRONT DRUM

main47643-20020iRT104..LHD..4F..STD..GEN197701-197905

FRONT DISC

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47643-20020iRT104..LHD..4F..STD..GEN197701-197905

FRONT DISC

main47644-14021iRT102,104,114,118..ARL,SA197701-197905

FRONT DRUM

9011906015

main90119-06015

9011906084

main90119-06084

9418111000

main94181-11000

32 parts on this diagram · 1 diagram in section
