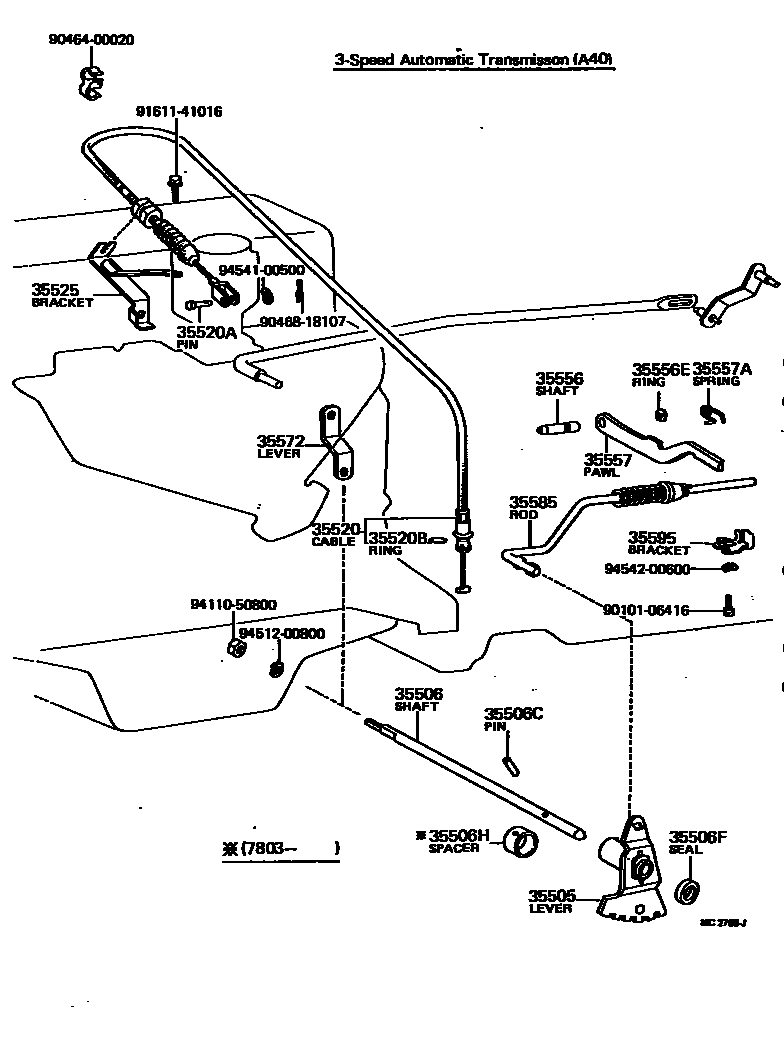

THROTTLE LINK & VALVE LEVER (ATM)

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22010iRT102,104,112,114,118..3FC197308-197905

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-20020iRT102,104,112,118..3FC197308-197309

main35561-20021iRT102,104,112,114,118..3FC197309-197905

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-03004iRT104,114,118..3FC197803-197905

main90254-03044iRT102,104,112,114,118..3FC197308-197803

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11128×2iRT102,104,112,114,118..3FC197308-197905

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iRT104,114,118..3FC197803-197905

35520CABLE ASSY, THROTTLE

main35520-22010iRT102,104,112,114,118..3FC197308-197804

main35520-22030iRT104,114,118..3FC197804-197905

35520APIN, THROTTLE CABLE

main90240-05139iRT102,104,112,114,118..3FC197308-197905

35520BRING, O(FOR THROTTLE CABLE)

main90301-09063iRT102,104,112,114,118..3FC197308-197905

35525BRACKET, THROTTLE CABLE

main35525-14020iRT104,114,118..3FC197509-197905

main35525-22011iRT102,104,112,118..3FC197308-197509

35556SHAFT, PARKING LOCK PAWL

main35556-22010iRT102,104,112,114,118..3FC197308-197905

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iRT102,104,112,114,118..3FC197308-197905

35557PAWL, PARKING LOCK

main35557-22010iRT102,104,112,114,118..3FC197308-197905

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-25329iRT102,104,112,114,118..3FC197308-197905

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-20060iRT102,104,112,118..3FC197308-197408

main35572-22040iRT102,104,112,114,118..3FC197408-197905

35585ROD, PARKING LOCK

main35501-22010iRT102,104,112,114,118..3FC197308-197905

35595BRACKET, PARKING LOCK PAWL

main35595-22010iRT102,104,112,114,118..3FC197308-197905

9010106416

main90101-06416

9046400020

main90464-00020

9046818107

main90468-18107

9161141016

main91611-41016

9411050800

main94110-50800

9451200800

main94512-00800

9454100500

main94541-00500

9454200600

main94542-00600

24 parts on this diagram · 1 diagram in section
