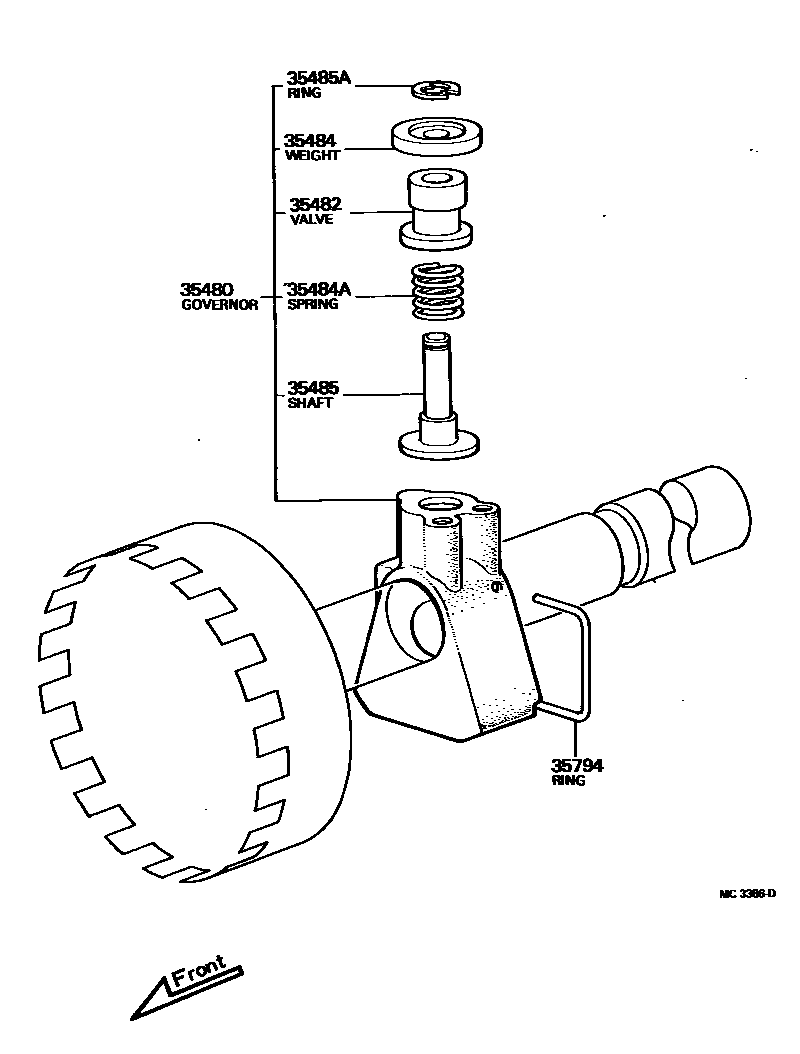

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-22020iRT102,104,112,114,118..3FC197308-197905

35482VALVE, GOVERNOR

main35482-22010iRT102,104,112,114,118..3FC197308-197905

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iRT102,104,112,114,118..3FC197308-197905

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iRT102,104,112,114,118..3FC197308-197905

35485SHAFT, GOVERNOR VALVE

main35485-22010iRT102,104,112,114,118..3FC197308-197905

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iRT102,104,112,114,118..3FC197308-197905

35794RING, GOVERNOR RETAINING

main35794-22010iRT102,104,112,114,118..3FC197308-197905

7 parts on this diagram · 1 diagram in section
