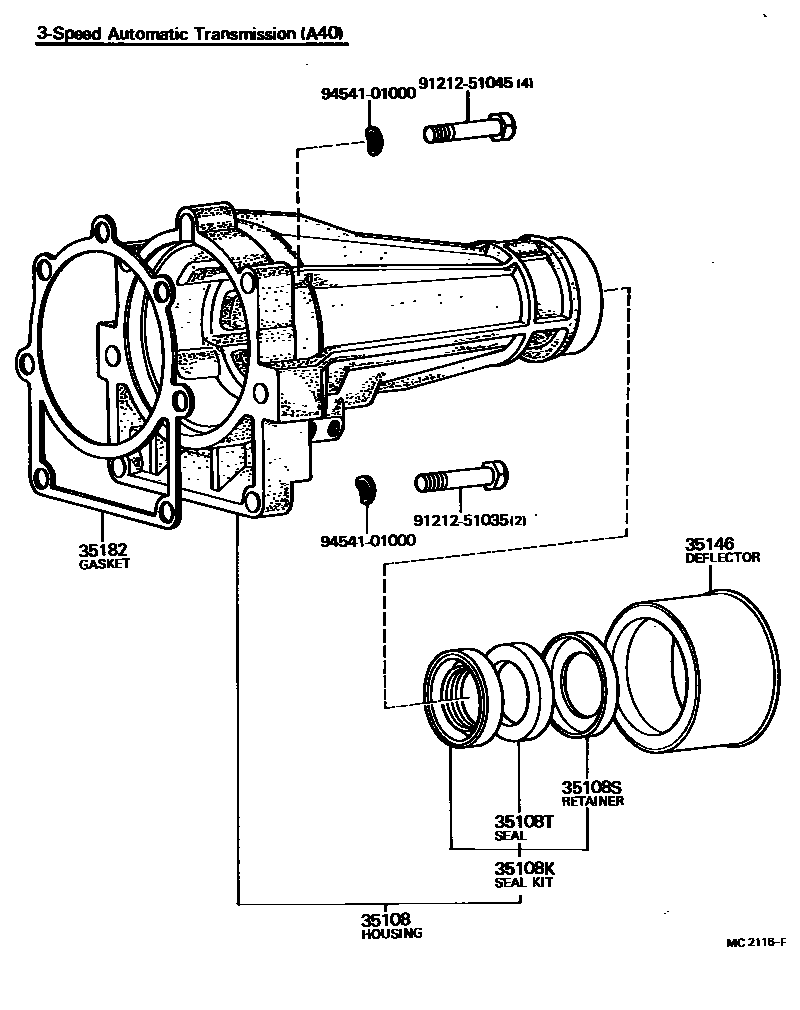

EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-22030iRT102,104,112,114,118..3FC197308-197808

main35108-22031iRT104,118..3FC197808-197905

35108KSEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iRT102,104,112,114,118..3FC197308-197905

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iRT102,104,112,114,118..3FC197308-197905

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iRT102,104,112,114,118..3FC197308-197905

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iRT102,104,112,114,118..3FC197308-197905

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iRT102,104,112,114,118..3FC197308-197905

9121251035

main91212-51035

9121251045

main91212-51045

9454101000

main94541-01000

9 parts on this diagram · 1 diagram in section
