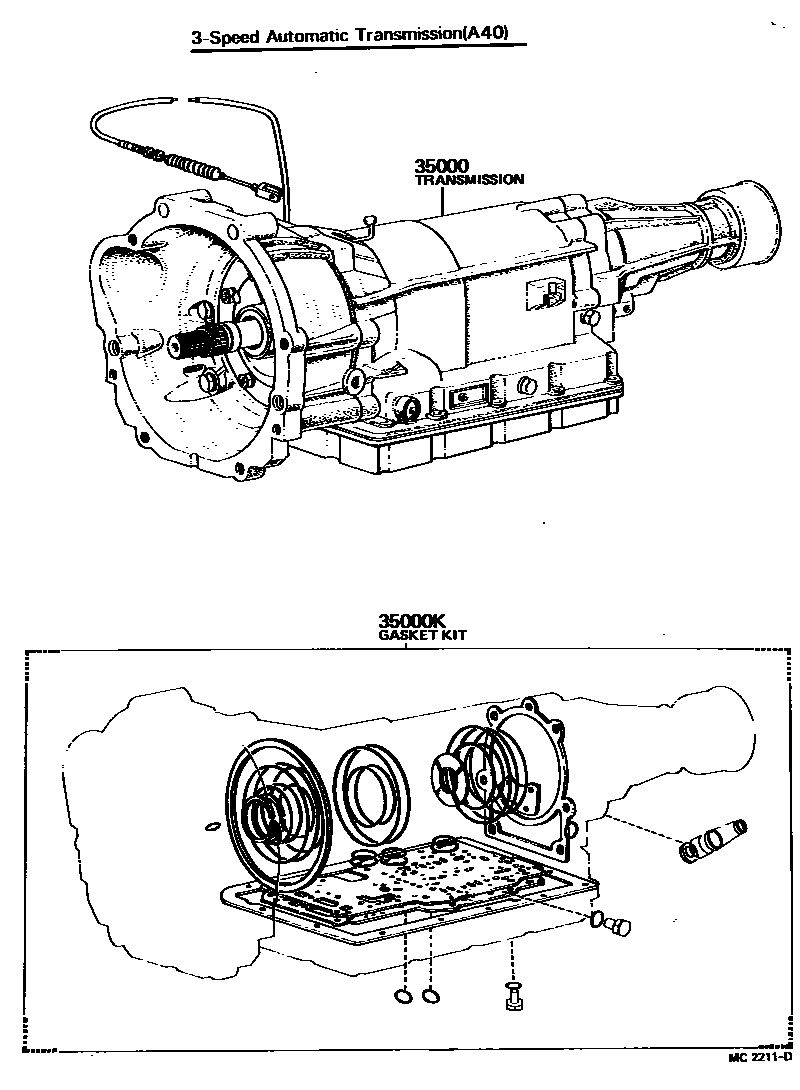

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

35000TRANSMISSION ASSY, AUTOMATIC

main35000-20280iRT102,112..RHD..3FC197308-197408

SMG.R=17:5

main35000-20281iRT102,112..RHD..3FC197408-197509

SMG.R=17:5

main35000-20290iRT102,112..3FC197404-197408

SMG.R=20:6

main35000-20291iRT104..3FC..EUR197509-197701

SMG.R=20:6

main35000-20292iRT104,114..3FC..(EUR,GEN,SA)197701-197804

SMG.R=20:6,DIFF.GEAR R=4.100

main35000-20293iRT104,114..3FC..(EUR,GEN,SA)197804-197808

SMG.R=20:6,DIFF.GEAR R=4.100

main35000-20320iRT102..3FC..EUG; RT104,118..3FC197308-197408

SMG.R=19:6

main35000-20321iRT102..3FC..EUG; RT104,118..RHD..3FC197408-197509

SMG.R=19:6

main35000-20322iRT104..3FC..EUG;RT104,114,118..3FC..(ARL,SA)197701-197804

SMG.R=19:6

main35000-20323iRT104..3FC..EUG;RT104,118..3FC..ARL197804-197905

SMG.R=19:6

main35000-20620iRT104,114..3FC..SA197804-197905

SMG.R=18:6

35000KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-22010iRT102,104,112,114,118..3FC197308-197708

main04351-22020iRT104,114,118..3FC197708-197905

2 parts on this diagram · 1 diagram in section
