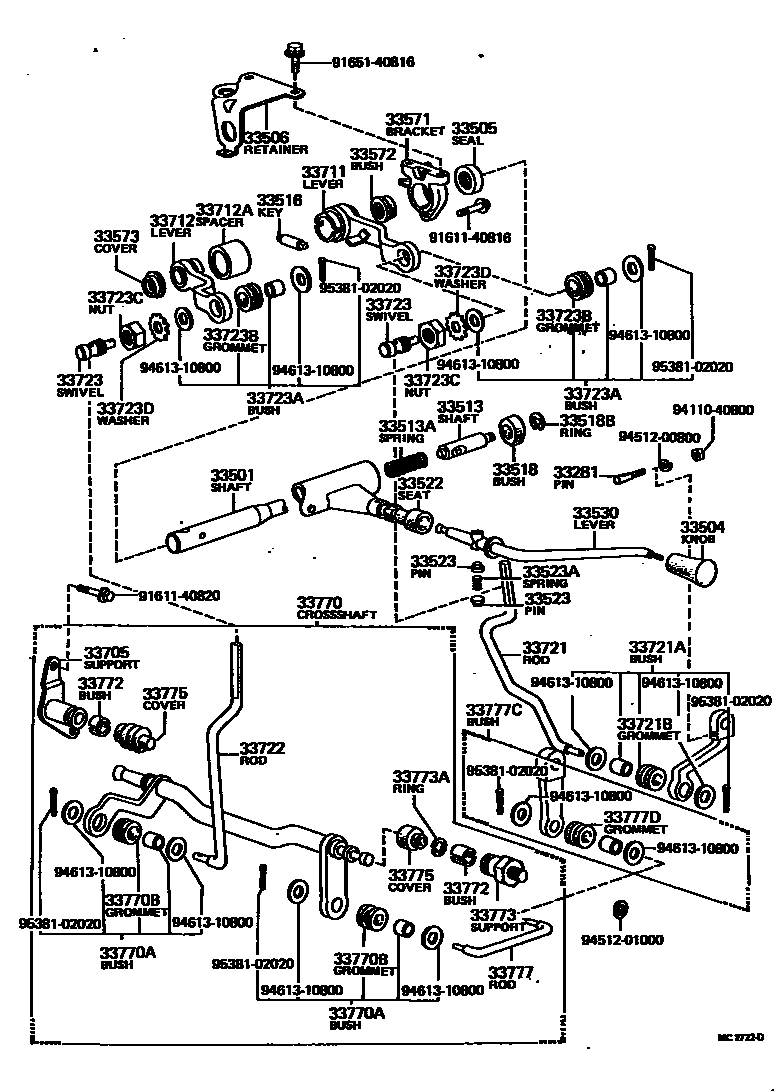

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

33281PIN, LEVER LOCK (FOR COLUMN SHIFT)

main33281-30010×2iRT100,116..3H197308-197808

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-20200iRT100,116..RHD..3H197308-197808

FOR COLLAPSIBLE STEERING

main33501-20210iRT100,116..LHD..3H197308-197808

FOR COLLAPSIBLE STEERING

main33501-20220iRT100,116..RHD..3H197308-197808

main33501-20230iRT100,116..LHD..3H197308-197808

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-22010iRT100,116..3H197308-197410

main33504-30110iRT100,116..3H197410-197808

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main33505-30010iRT100,116..3H197308-197808

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33575-20160iRT100,116..RHD..3H197308-197808

main33575-20170iRT100,116..LHD..3H197308-197808

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-20020iRT100,116..3H197308-197808

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14730iRT100,116..3H197308-197808

33516KEY, CONTROL LEVER SELECTING

main33516-20020iRT100,116..3H197308-197808

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-20030iRT100,116..3H197308-197808

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main96160-00900iRT100,116..3H197308-197808

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-20010iRT100,116..3H197308-197808

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main33523-30010×2iRT100,116..3H197308-197808

33523ASPRING, COMPRESSION

main90501-04062iRT100,116..3H197308-197808

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-22010iRT100,116..3H197308-197808

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-20100iRT100,116..RHD..3H197308-197808

main33571-20110iRT100,116..LHD..3H197308-197808

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-30020iRT100,116..3H197308-197808

33573COVER, CONTROL SHAFT DUST, LOWER

main33573-22010iRT100,116..3H197308-197808

33705SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE)

main33705-20090iRT100,116..RHD..3H197308-197808

main33705-20100iRT100,116..LHD..3H197308-197808

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33711-20130iRT100,116..RHD..3H197308-197808

main33711-20140iRT100,116..LHD..3H197308-197808

33712LEVER, CONTROL SHAFT

main33712-20040iRT100,116..RHD..3H197308-197808

main33712-22020iRT100,116..LHD..3H197308-197808

33712ASPACER (FOR CONTROL SHAFT LEVER)

main90560-26267iRT100,116..3H197308-197808

33721ROD, LOW SPEED CONNECTING

main33721-20080iRT100,116..LHD..3H197308-197808

main33721-20090iRT100,116..RHD..3H197308-197808

33721ABUSH (FOR LOW SPEED CONNECTING ROD)

main90999-99017iRT100,116..3H197308-197808

33721BGROMMET (FOR LOW SPEED CONNECTING ROD)

main90480-17177iRT100,116..3H197308-197808

33722ROD, HIGH SPEED CONNECTING

main33722-20070iRT100,116..RHD..3H197308-197808

main33722-20080iRT100,116..LHD..3H197308-197808

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-20010×2iRT100,116..3H197308-197808

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90999-99017×2iRT100,116..3H197308-197808

33723BGROMMET (FOR COLUMN SHIFT CONTROL SHAFT)

main90480-17177×2iRT100,116..3H197308-197808

33723CNUT, HEXAGON (FOR CONTROL ROD SETTING)

main90170-18159×2iRT100,116..3H197308-197808

33723DWASHER, TOOTHED (FOR CONTROL ROD SETTING)

main90205-18012×2iRT100,116..3H197308-197808

33770SHAFT ASSY, CROSS (FOR COLUMN SHIFT)

main33770-20200iRT100,116..RHD..3H197308-197808

main33770-20220iRT100,116..LHD..3H197308-197808

33770ABUSH (FOR CROSS SHAFT)

main90999-99017×2iRT100,116..3H197308-197808

33770BGROMET (FOR COLUMN SHIFT CROSS SHAFT)

main90480-17177×2iRT100,116..3H197308-197808

33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

main33772-20010×4iRT100,116..3H197308-197808

33773SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)

main33773-20020iRT100,116..3H197308-197808

33773ARING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)

main96151-01600iRT100,116..3H197308-197808

33775COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)

main33775-20020iRT100,116..3H197308-197808

MISSION SIDE

main33775-20040iRT100,116..3H197308-197808

FRAME SIDE

33777ROD, GEAR SHIFT(FOR COLUMN SHIFT)

main33777-20010iRT100,116..3H197308-197808

33777CBUSH, GEAR SHIFT ROD

main90999-99017iRT100,116..3H197308-197808

33777DGROMMET, GEAR SHIFT ROD

main90480-17177iRT100,116..3H197308-197808

9161140816

main91611-40816

9161140820

main91611-40820

9165140816

main91651-40816

9411040800

main94110-40800

9451200800

main94512-00800

9451201000

main94512-01000

9461310800

main94613-10800

9538102020

main95381-02020

48 parts on this diagram · 2 diagrams in section
