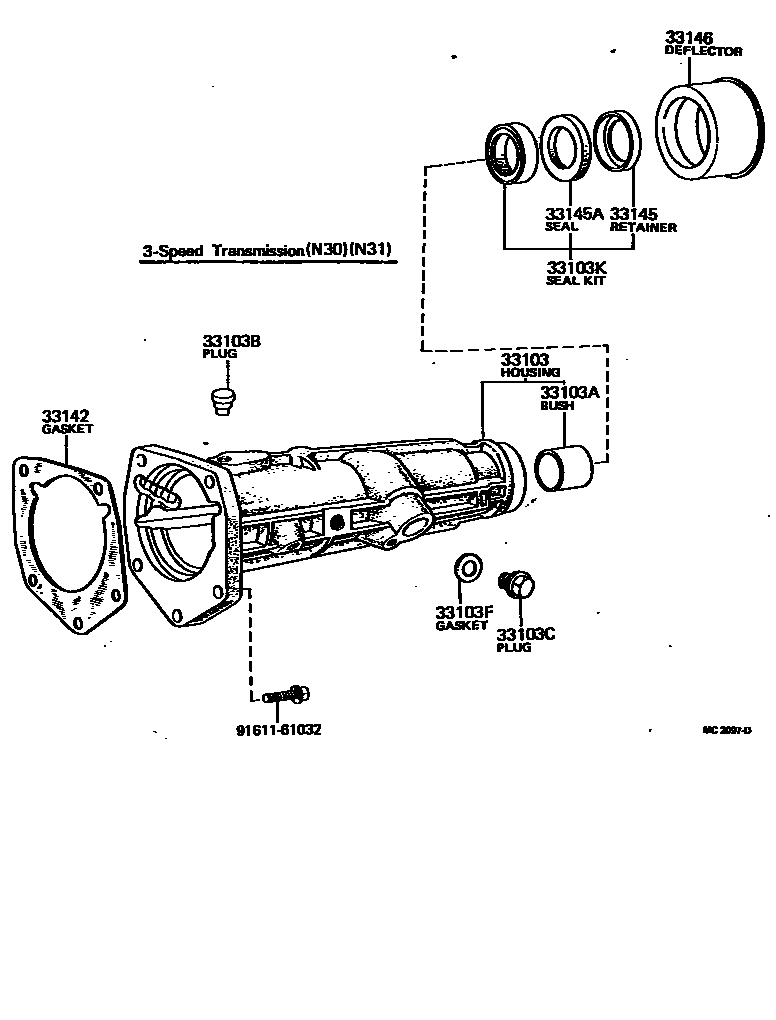

EXTENSION HOUSING (MTM)

0001 1 0002 1 0003 1 0004 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-20090iRT10#,11#..4F197308-197905

main33103-20100iRT102,104..5F197308-197808

main33103-30120iRT100,116..3H197308-197509

main33103-30150iRT100,116..3H197509-197808

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72012iRT10#,11#..3H,4F197308-197410

main90999-72023iRT10#,11#..4F197509-197905

main90999-73062iRT102,104..5F197308-197808

main90999-73077iRT100,116..3H197509-197808

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03001iRT100,116..3H197308-197808

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90341-18002iRT100,116..3H197308-197509

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main12157-10010iRT100,116..3H197308-197509

33103KSEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main04332-30010iRT10#,11#..MTM197308-197905

33142GASKET, EXTENSION HOUSING(MTM)

main33142-20020iRT104..5F197510-197808

main33142-30030iRT100,116..3H197308-197509

main33142-30040iRT100,116..3H197509-197808

main33142-31010iRT10#,11#..4F,5F197308-197510

33145RETAINER, EXTENSION HOUSING DUST SEAL(MTM)

main33145-30010iRT10#,11#..MTM197308-197905

33145ASEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90303-38010iRT10#,11#..MTM197308-197905

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iRT10#,11#..MTM197308-197905

9161161032

main91611-61032

11 parts on this diagram · 4 diagrams in section
