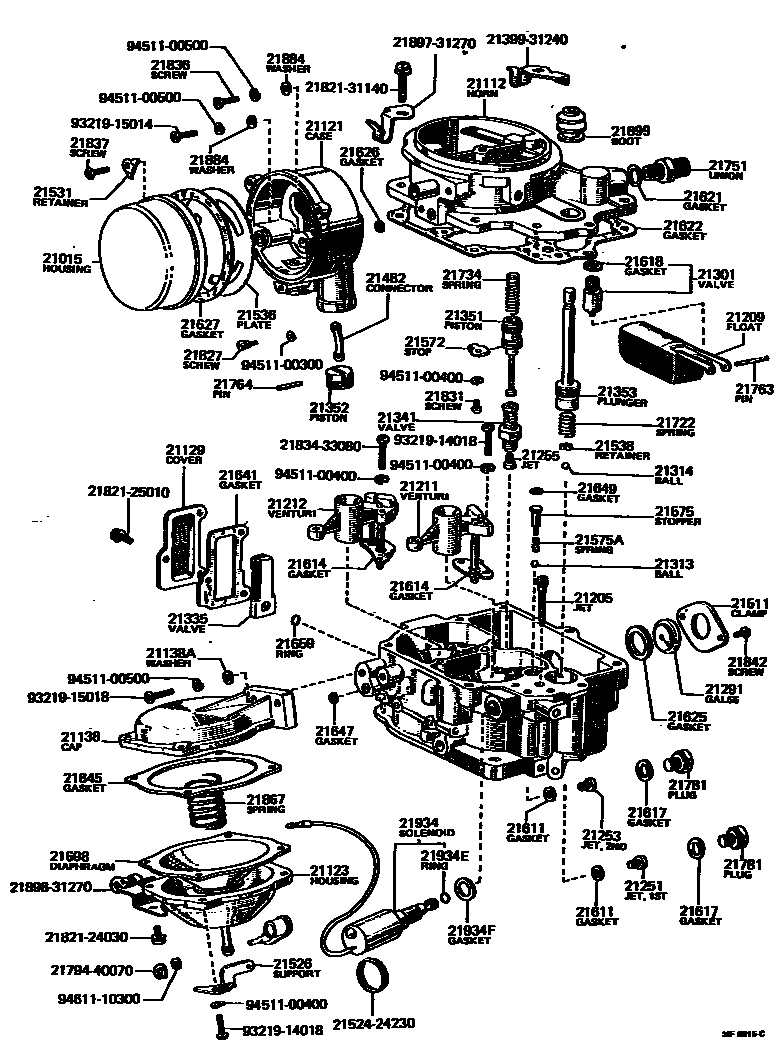

CARBURETOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0016 1 0019 1 0022 1 0024 1 0026 1 0028 1 0029 1 0030 1 0031 1 0032 1 0033 1

21015HOUSING SUB-ASSY, COIL

main21015-36040i16R,18R..RT102,104,112,114,117,118197308-197509

main21015-40012i12R..RT100,110,116197308-197511

main21122-34240i16R,18R..RT102,104,114..SA197509-197905

main21122-34241i18RC..RT104,118197702-197704

main21141-34400i18R..RT104,118..EUG197701-197905

main21141-34430i18R..RT104,114,118..ARL,GEN197701-197905

21112HORN, AIR

main21012-34400i18R..RT104,118..EUG197701-197905

main21012-34430i18R..RT104,114,118..ARL,GEN197701-197905

main21112-31161i12R#..RT100,110,116197511-197808

main21112-34060i16R,18R..RT102,104,112,114,117,118197308-197509

main21112-34180i18RC..RT104,118197509-197905

main21112-36040i12R..RT100,110,116197308-197511

21121CASE, THERMOSTAT

main21121-34080i16R,18R..RT102,104,114..SA197308-197905

21123HOUSING, DIAPHRAGM

main21123-44100i12R#,16R,18R#..RT10#,11#197308-197905

21129COVER(FOR THERMOSTATIC VALVE)

main21129-24030i16R,18R..RT102,104,112,114,117,118197308-197905

main21129-38010i12R#..RT100,110,116197503-197808

main21398-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21138CAP, DIAPHRAGM

main21138-34080i18RC..RT104,118..MTM197509-197905

main21138-34180i18RC..RT104..3FC197509-197704

main21138-34230i16R,18R..RT102,104,112,114,117,118197404-197509

main21138-44100i12R#..RT100,110,116197308-197808

21138AWASHER(FOR DIAPHRAGM CAP SET)

main21885-44010i12R,16R,18R..RT10#,11#197308-197808

21205JET SUB-ASSY, SLOW

main21205-34400i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

ID=0.52

main90999-44046i12R..RT100,116197511-197808

ID=0.46

main90999-44048i12RM..RT100,110,116197512-197808

ID=0.48

main90999-44050i12R..RT100,110,116197308-197511

ID=0.50

main90999-44154i18RC..RT104,118197308-197905

ID=0.54

21209FLOAT SUB-ASSY

main21209-33011i16R,18R..RT102,104,112,114,117,118197308-197905

main21209-33080i12R#..RT100,110,116197308-197808

main21209-34400i18R#..RT104,114,118..ARL,EUR,GEN197701-197708

sub21209-36120

main21209-36120i18R#..RT104,114,118..ARL,EUR,GEN197708-197905

21211VENTURI, 1ST SMALL

main21201-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

main21211-31270i12R#..RT100,110,116197308-197808

main21211-34031i18RC..RT104..3FC197509-197704

main21211-34060i16R,18R..RT102,104,114,118197509-197905

main21211-34230i16R,18R..RT102,104,112,114,117,118197308-197509

21212VENTURI, 2ND SMALL

main21202-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

main21212-31270i12RM..RT100,110,116197308-197808

main21212-31280i12R..RT100,116197511-197808

main21212-34031i16R,18R#..RT102,104,114,118197308-197905

21251JET, 1ST MAIN

main21251-34400i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

ID=1.14

main90999-41104i12R..RT100,116197511-197808

ID=1.04

main90999-41106i12R..RT100,110,116197308-197808

ID=1.06

main90999-41116i16R,18R..RT102,104,112,114,117,118197308-197905

ID=1.16

21253JET, 2ND MAIN

main21253-34400i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

ID=1.55

main90999-42162i12R#..RT100,110,116197308-197808

ID=1.62

main90999-42165i16R,18R..RT102,104,112,114,117,118197308-197509

ID=1.65

main90999-42168i18RC..RT104,118197509-197905

ID=1.68

21255JET, POWER

main21255-31081i16R,18R..RT102,104,114,118197509-197905

ID=0.65

sub21255-31082

main21255-33080i12R,16R,18R..RT10#,11#197308-197808

ID=0.50

sub90999-43050

main21302-44122i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

ID=0.50

sub21302-72210

main90999-43050i16R,18R..RT102,104,112,114,117,118197404-197509

ID=0.50

main90999-43053i12R..RT100,116197511-197808

ID=0.53

main90999-43070i18RC..RT104..3FC197509-197704

ID=0.70

21291GLASS, LEVEL GAGE

main21291-33010i12R,16R,18R..RT10#,11#197308-197311

main21291-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

main21291-60200i16R,18R..RT102,104,114..SA197311-197905

21301VALVE SUB-ASSY, NEEDLE

main21301-26350i12R..RT100,116197511-197808

main21301-33081i12R..RT100,110,116197308-197808

main21301-34061i16R,18R..RT102,104,114..SA197308-197905

sub21301-34300

main21301-34400i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

main21313-11020i12R,16R,18R..RT10#,11#197308-197905

21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)

main21314-11020i16R,18R..RT102,104,112,114,117,118197308-197905

main21314-60010i12R#..RT100,110,116197308-197808

sub21314-11020

21335VALVE, THERMOSTATIC

main21038-34400i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

main21335-25010i12RM..RT100,110,116197308-197808

main21335-33010i16R,18R..RT102,104,114..SA197308-197905

21341VALVE, POWER

main21304-30010i12R,16R,18R..RT10#,11#197308-197905

21351PISTON, POWER

main21351-33080i12R,16R,18R..RT10#,11#197308-197905

21352PISTON, VACUUM

main21352-34060i12R,16R,18R..RT10#,11#197308-197905

21353PLUNGER, PUMP

main21353-33010i12R#..RT100,110,116197308-197808

sub21353-16510

main21353-44101i16R,18R#..RT102,104,114,118197308-197905

21482CONNECTOR, PISTON

main21482-31010i12R,16R,18R..RT10#,11#197308-197905

main21482-33040i12R..RT100,110,116197308-197511

L=20.5

main21482-34060i12R..RT100,110,116197308-197511

L=20

21511CLAMP, LEVEL GAGE

main21511-33010i12R#..RT100,116197308-197905

main21511-34260i18RC..RT104..3FC197509-197704

main21511-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21526SUPPORT, BACK SPRING

main21526-31140i12R#..RT100,110,116197308-197808

main21526-44100i18RC..RT104,118197308-197905

21531RETAINER, COIL HOUSING

main21531-30010i12R,16R,18R#..RT10#,11#197308-197905

21536PLATE, COIL HOUSING

main21536-44100i16R,18R..RT102,104,114..SA197308-197905

21538RETAINER, BALL CHECK

main21538-31010i16R,18R..RT102,104,114..SA197308-197905

21572STOP, POWER PISTON

main21572-22010i16R,18R..RT102,104,112,114,117,118197308-197410

main21572-33080i12R#..RT100,110,116197308-197808

main21572-38010i16R,18R#..RT102,104,114,118197509-197905

21575STOPPER, B(FOR DISCHARGE WEIGHT)

main21575-26020i12R..RT100,110,116197308-197905

main21575-33011i16R,18R..RT102,104,112,114,117,118197308-197509

21575ASPRING(FOR STOPPER, B)

main21864-26020i12R#..RT100,116197308-197905

21611GASKET, MAIN JET

main21611-22010i12R#..RT100,116197308-197905

main21611-40021i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21614GASKET, VENTURI

main21614-33010i12R#..RT100,110,116197308-197808

1ST

sub21614-16280

main21614-33080i12R#..RT100,110,116197308-197808

2ND

sub21615-16280

main21614-34031i16R,18R..RT102,104,112,114,117,118197308-197905

1ST

sub21614-38010

main21614-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

1ST

sub21614-34600

main21615-44010i16R,18R..RT102,104,114..SA197308-197905

2ND

sub21615-38010

main21639-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

2ND

sub21639-34600

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i12R,16R,18R..RT10#,11#197308-197905

main21633-44150i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21618GASKET, NEEDLE VALVE SEAT

main21618-24030i12R#..RT100,116197308-197905

main21643-36110i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21621GASKET, UNION NIPPLE

main21633-24030i12R,16R,18R..RT10#,11#197308-197905

ID=12,T=1.0

main21637-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21622GASKET, AIR HORN

main21622-33083i12R#..RT100,110,116197308-197808

main21622-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

sub21622-34600

main21622-44100i16R,18R..RT102,104,114..SA197308-197905

21625GASKET, LEVEL GAGE

main21625-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

main21641-33040i12R,16R,18R..RT10#,11#197308-197311

main21655-60200i18RC..RT104,118197311-197905

21626GASKET, CASE

main21649-33080i16R,18R#..RT102,104,114,118197308-197905

21627GASKET, COIL HOUSING

main21627-34080i12R,16R,18R..RT10#,11#197308-197905

main21642-36110i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

sub21642-34600

21641GASKET(FOR THERMOSTATIC VALVE COVER)

main21626-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

sub21626-34600

main21641-23010i16R,18R..RT102,104,112,114,117,118197308-197905

main21641-23012i12R#..RT100,110,116197503-197808

21645GASKET, DIAPHRAGM, CAP

main21638-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

main21645-33080i12R#..RT100,116197308-197905

sub21645-41010

21647GASKET, DIAPHRAGM HOUSING CAP

main21649-33080i12R,16R,18R..RT10#,11#197308-197905

21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)

main21641-33011i12R,16R,18R..RT10#,11#197308-197905

21659RING, O(FOR THERMOSTATIC VALVE)

main21641-24030i12R,16R,18R..RT10#,11#197308-197905

main21655-31100i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21698DIAPHRAGM

main21669-34080i16R,18R..RT102,104,114..SA197404-197905

main21669-44100i12R#..RT100,110,116197308-197808

21699BOOT(FOR PUMP PLUNGER)

main21656-36110i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

main21699-21061i12R#..RT100,116197308-197905

sub21699-28150

21722SPRING, PUMP DAMPING

main21722-22010i12R#..RT100,110,116197308-197808

main21722-34060i16R,18R..RT102,104,114..SA197308-197905

main21735-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21734SPRING, POWER PISTON

main21734-33081i12R#..RT100,116197308-197905

21751UNION, NIPPLE

main21751-33080i12R#..RT100,110,116197308-197808

main21751-34330i18R#..RT104,114,118197509-197905

main21751-36110i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

main21751-44011i16R,18R..RT102,104,112,114,117,118197404-197701

21763PIN, FLOAT LEVER

main21763-21010i16R,18R#..RT102,104,114,118197509-197905

sub21763-61330

main21763-29270i12R,16R,18R..RT10#,11#197308-197808

sub21763-21010

main21763-31280i12R..RT100,116197511-197808

main21768-36110i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21764PIN, PISTON(FOR VACUUM PISTON)

main21764-40010i12R,16R,18R#..RT10#,11#197308-197905

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21781-30020i16R,18R..RT102,104,114..SA197308-197905

sub21781-16510

main21781-44150i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21827SCREW, CONNECTOR SET

main21827-33010i12R,16R,18R..RT10#,11#197308-197905

21831SCREW, POWER PISTON STOP

main21842-33010i12R,16R,18R..RT10#,11#197308-197905

21836SCREW, THERMOSTAT CASE SET

main21832-44010i12R,16R,18R..RT10#,11#197308-197905

21837SCREW, COIL HOUSING SET

main21842-33010i12R,16R,18R..RT10#,11#197308-197905

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21832-36120i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

main21842-33010i12R#,16R,18R#..RT10#,11#197308-197905

21867SPRING, DIAPHRAGM

main21747-34400i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

main21867-26040i16R,18R..RT102,104,112,114,117,118197308-197509

main21867-31280i12R#..RT100,110,116197612-197808

main21867-33080i18R#..RT104,114,118197308-197905

main21867-34060i16R..RT102197509-197701

21884WASHER, THERMOSTAT CASE SET

main21885-44010i12R,16R,18R..RT10#,11#197308-197905

21934SOLENOID, THROTTLE VALVE

main21062-38010i12R..RT100,116197511-197808

main21062-38011i18RC..RT104,118197509-197704

main21062-44100i12R..RT100,110,116197308-197808

sub21062-25040

main21391-36110i18R#..RT104,114,118..ARL,EUR,GEN197701-197905

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i12R,16R,18R..RT10#,11#197308-197905

21934FGASKET

main21617-10010i12R,16R,18R..RT10#,11#197308-197905

2139931240SUPPORT(FOR DASH POT)

main21399-31240

2152424230BRACKET(FOR DASH POT)

main21524-24230

2179440070RING, RETAINER, NO.1(FOR THROTTLE SHAFT)

main21794-40070

2182124030SCREW, 2ND THROTTLE VALVE SET

main21821-24030

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2183433080SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

main21834-33080

2189731270SUPPORT, FRONT(FOR CHOKE SHAFT)

main21897-31270

2189831270SUPPORT, REAR(FOR CHOKE SHAFT)

main21898-31270

9321914018

main93219-14018

9321915014

main93219-15014

9321915018

main93219-15018

9451100300

main94511-00300

9451100400

main94511-00400

9451100500

main94511-00500

9461110300

main94611-10300

80 parts on this diagram · 24 diagrams in section
