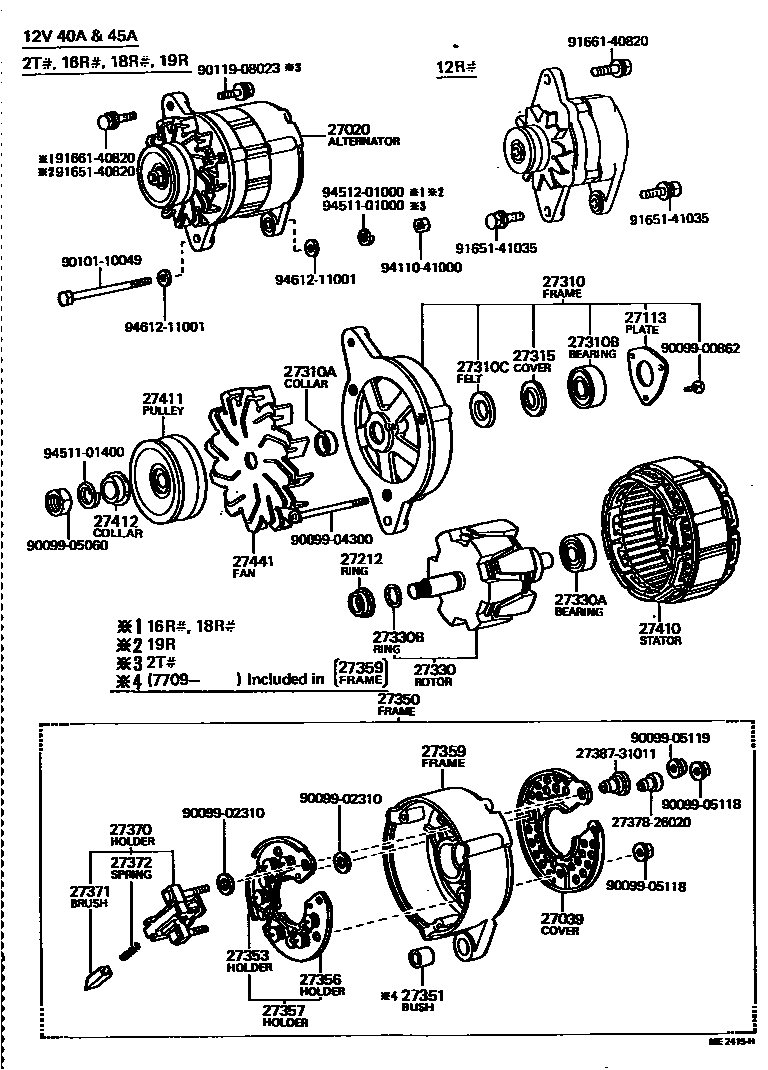

27020ALTERNATOR ASSY
main27020-31043i16R,18R..RT102,104,114..SA197509-197701 12V 40A
main27020-34011i16R,18R..RT102,104,117,118..LHD..EUR197502-197504 12V 55A
main27020-34012i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197504-197701 12V 55A
main27020-34020i18RC..RT104,118;18R..RT104,118..LHD..EUG197701-197808 12V 55A
main27020-36021i16R,18R..RT102,104,112,114,117,118..ARL,GEN,SA197308-197504 12V 40A
main27020-36041i16R,18R..RT102,104,118..EUR,GEN; 16R..RT112,117197308-197509 12V 45A
main27020-36042i16R,18R..RT102,104,118..EUR,GEN; 16R..RT112,117197504-197506 12V 45A
main27020-36043i16R,18R..RT102,104,118..EUR,GEN; 16R..RT112,117197506-197509 12V 45A
27039COVER, ALTERNATOR REAR END
main27039-34010i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197502-197701 12V 55A
main27039-36070i12R#..RT100,116; 18R..RT104,118..ARL197701-197708 18RC
27113PLATE, BEARING RETAINER, ALTERNATOR
main27312-45010i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197502-197701 12V 55A
27212RING, SPACE(FOR ALTERNATOR ROTOR)
main27212-39050i16R,18R..RT102,104,114,118197701-197905 12V 45A
main27333-51020i16R,18R..RT102,104,117,118..LHD..EUR197502-197504 12V 55A
main27412-45070i18RC..RT104,118;18R..RT104,118..LHD..EUG197701-197808 12V 55A
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-34012i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197502-197701 12V 55A
main27310-34050i18RC..RT104,118;18R..RT104,118..LHD..EUG197701-197808 12V 55A
27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
main27412-31040i16R,18R#..RT102,104,114,118197701-197905 main27412-45011i16R,18R..RT102,104,117,118..LHD..EUR197502-197504 12V 55A
main27412-45012i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197504-197701 12V 55A
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90099-10094i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197502-197701 6303-2NSL
main90099-10109i12R#..RT100,116; 18R..RT104,118..ARL197701-197708 6203ZZ; 6203ZZ,18RC
main90099-10114i18RC..RT104,118;18R..RT104,118..LHD..EUG197701-197808 6203DDU
27310CFELT(FOR ALTERNATOR DRIVE END FRAME)
27315COVER, ALTERNATOR FELT, INNER NO.1
27330ROTOR ASSY, ALTERNATOR
main27330-33010i12R#..RT100,110,116; 16R,18R..RT102,104,114..SA197509-197512 12V 40A
main27330-45010i16R,18R..RT102,104,117,118..LHD..EUR197502-197504 12V 55A
main27330-45050i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197504-197701 12V 55A
main27330-45070i18RC..RT104,118;18R..RT104,118..LHD..EUG197701-197808 12V 55A
27330ABEARING(FOR ALTERNATOR ROTOR)
main90099-10010i16R,18R..RT102,104,117,118..LHD..EUR197502-197504 6201VV
main97110-06201i16R,18R..RT102,104,114,118197701-197708 6201ZZ
27330BRING, SNAP(FOR ALTERNATOR ROTOR)
27350FRAME ASSY, RECTIFIER END
main27350-26022i16R,18R..RT102,104,114,118197512-197701 12V 40 & 45A
main27350-34010i16R,18R..RT102,104,117,118..LHD..EUR197502-197504 12V 55A
main27350-36071i12R#..RT100,116; 18R..RT104,118..ARL197701-197708 18RC
main27350-45013i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197504-197701 12V 55A
main27350-45070i18RC..RT104,118;18R..RT104,118..LHD..EUG197701-197808 12V 55A
27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
main27353-26020i16R,18R..RT102,104,114,118197512-197701 12V 40 & 45A
main27353-34010i16R,18R..RT102,104,117,118..LHD..EUR197502-197504 12V 55A
main27353-36070i12R#..RT100,116; 18R..RT104,118..ARL197701-197708 18RC
main27353-45050i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197504-197701 12V 55A
main27353-45070i18RC..RT104,118;18R..RT104,118..LHD..EUG197701-197808 12V 55A
27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
main27356-26020i16R,18R..RT102,104,114,118197701-197708 12V 45A
main27356-34010i16R,18R..RT102,104,117,118..LHD..EUR197502-197504 12V 55A
main27356-45050i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197504-197701 12V 55A
main27356-45070i18RC..RT104,118;18R..RT104,118..LHD..EUG197701-197808 12V 55A
27357HOLDER, ALTERNATOR, W/RECTIFIER
main27357-26020i16R,18R..RT102,104,114,118197512-197701 12V 40 & 45A
main27357-34010i16R,18R..RT102,104,117,118..LHD..EUR197502-197504 12V 55A
main27357-36070i12R#..RT100,116; 18R..RT104,118..ARL197701-197708 18RC
main27357-45050i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197504-197701 12V 55A
27359FRAME, ALTERNATOR RECTIFIER END
main27359-34010i16R,18R..RT102,104,117,118..LHD..EUR197502-197504 12V 55A
main27359-41041i16R,18R..RT102,104,114,118197512-197701 12V 40 & 45A
main27359-45011i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197504-197701 12V 55A
main27359-45070i18RC..RT104,118;18R..RT104,118..LHD..EUG197701-197808 12V 55A
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-45061i16R,18R..RT102,104,117,118..LHD..EUR197502-197509 12V 55A
27371BRUSH, ALTERNATOR
main27371-31011×2i12R#,16R,18R#..RT10#,11#197308-197905 27372SPRING, ALTERNATOR BRUSH
main27372-31011×2i12R#,16R,18R#..RT10#,11#197308-197905 27410STATOR ASSY, ALTERNATOR
main27410-26020i12R#..RT100,116; 16R,18R..RT102,104,114..SA197509-197701 12V 40A
main27410-26030i16R,18R..RT102,104,118..EUR,GEN; 16R..RT112,117197308-197509 12V 45A
main27410-34010i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197502-197701 12V 55A
main27410-34020i18RC..RT104,118;18R..RT104,118..LHD..EUG197701-197808 12V 55A
27411PULLEY, ALTERNATOR
main27411-25010i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197502-197701 12V 55A
27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27441FAN, ALTERNATOR
main27441-31011i16R,18R..RT102,104,112,114,117,118197308-197412 12V 40 & 45A
main27441-45050i18R..RT104,118..LHD..EUR;16R,18RC..RT102,104,117,118..LHD..EUR197502-197701 12V 55A
2737826020INSULATOR, ALTERNATOR, NO.1
2738731011INSULATOR, TERMINAL
